Working in sheet metal for over a decade at Baoxuan Sheet Metal Processing Factory, I’ve seen every kind of roll bar imaginable. Not the flashy “look-at-me” ones, but the ones that actually keep a person alive when things go sideways on the track or off-road. Let me tell you — making a roll bar isn’t just about bending metal. It’s a delicate mix of material choice, fabrication method, and assembly that often trips up engineers who haven’t been on the shop floor. So, I thought I’d jot down a few things I’ve learned over the years about Roll Bar Fabrication Parts and how custom components can really make a difference in automotive safety.
Material Selection Matters More Than You Think
When someone says “stainless steel” or “aluminum,” most people nod like they understand, but the reality is… well, it’s more complicated. For Roll Bar Fabrication Parts, we usually choose between 304 stainless, 4130 chromoly, and high-strength aluminum alloys. I remember one early job where a customer insisted on a light aluminum roll hoop for an off-road buggy. It looked great on CAD, but the welding left tiny cracks (you can see them only under proper inspection), and the part didn’t survive the crash test. We switched to 4130 steel and reinforced the joints — lesson learned.
Here’s a simple comparison I keep on my desk:
| Material | Pros | Cons |
|---|---|---|
| 304 Stainless Steel | Corrosion-resistant, widely available, weldable | Heavier, can bend under extreme stress |
| 4130 Chromoly | Very strong, good fatigue resistance, lighter than 304 | Requires careful heat treatment, more expensive |
| High-strength Aluminum | Lightweight, corrosion-resistant | Brittle, harder to weld, can crack if mis-handled |
Even the slightest misjudgment in material selection can cost hours in rework or, worse, safety failures. Every roll bar job starts with the question: what’s the real-world load scenario? That’s where Baoxuanmetal comes in — we’ve tested dozens of variants to match actual conditions, not just the theory on paper. This careful approach is exactly why our Roll Bar Fabrication Parts meet both safety and performance standards.
Precision Bending: Not Just a Fancy Term
Bending sounds simple, right? You clamp it, press it, and it’s done. Ha. Let me tell you, precision bending can make or break your roll bar. I’ve bent 30mm tubing until my arms felt like rubber, only to realize the end angles were off by 2 degrees — enough to throw off the cage’s fit by 10mm. That may seem minor, but in a car’s interior, 10mm can be the difference between a snug fit and a failed crash alignment.
One trick I always insist on is using digital angle gauges and jigs custom-made for each car model. Cheaper shops often rely on manual measurement, which, trust me, is a recipe for frustration. At Baoxuan Sheet Metal Processing Factory, we combine bending tolerance checks with joint reinforcement validation to ensure Roll Bar Fabrication Parts pass SAE standard inspections (SAE International).
So, if you’re talking Roll Bar Fabrication Parts, ask about bending tolerances, and don’t just accept a “looks fine” answer.
Welding Techniques: Where the Magic (and Mistakes) Happen

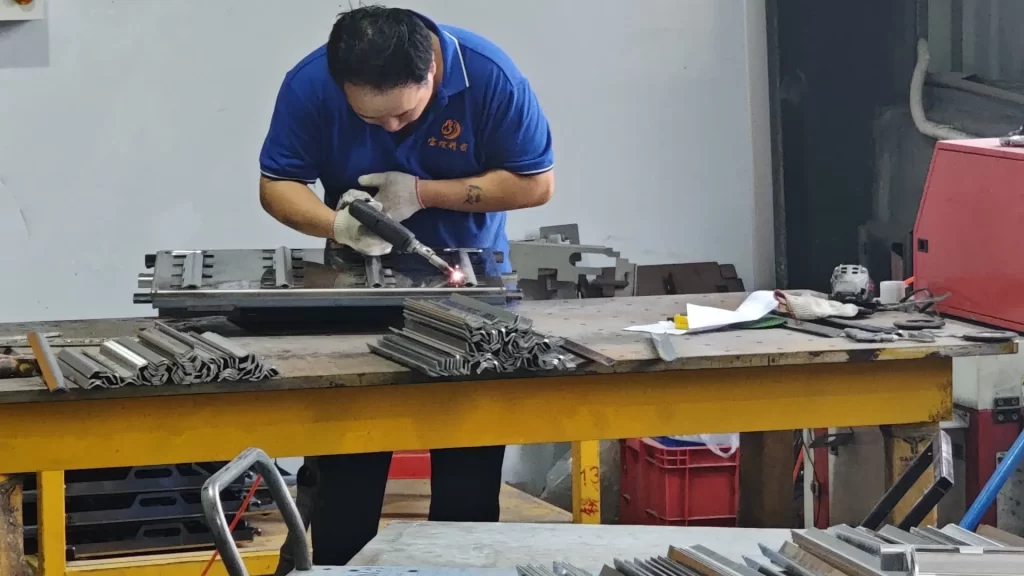

Alright, now we get to my favorite pain point — welding. I’ve done MIG, TIG, and even spot welding for tiny bracket points on roll cages. Each has its quirks. MIG is fast, but can burn through thin aluminum if you’re not paying attention. TIG gives a cleaner weld, great for aesthetics and precision, but slower and requires more skilled hands.
I remember a 2019 off-road buggy project where a client wanted TIG all the way — beautiful welds, yes, but the setup time ballooned, and we almost missed the delivery. Finally, we optimized: TIG on critical joints, MIG elsewhere. This hybrid approach saved time without compromising safety. All these welding strategies are part of why our Roll Bar Fabrication Parts maintain integrity under extreme conditions.
When specifying Roll Bar Fabrication Parts, don’t overlook welding method notes in the drawing. Even small brackets or gussets affect overall crash performance. And one more thing: always inspect with dye penetrant, X-ray, or digital gauges for cracks — one hidden defect can undo all the care you put into bending.
Surface Treatments: More Than Just Looking Pretty

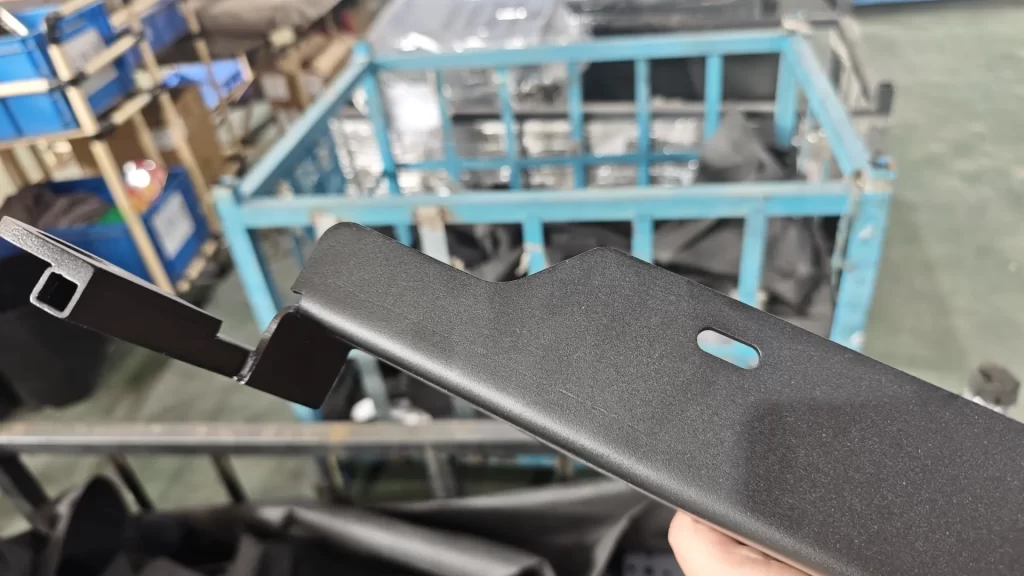

Powder coating and anodizing aren’t just for Instagram pics. They also protect against corrosion and, indirectly, structural failure. We’ve had cases where untreated steel bars started rusting at welded joints within a year — minor rust, but enough to weaken the structure before the client noticed.
At Baoxuan Precision Manufacturing, we often recommend powder coating for steel cages and anodizing for aluminum. Not only does it look uniform, but it also seals the metal. Think of it like putting a helmet on your metal before it even leaves the shop. These surface treatments make Roll Bar Fabrication Parts more durable and reliable over time.
Custom Fitment: Because One Size Never Fits All
Now, here’s where the real difference between off-the-shelf and custom Roll Bar Fabrication Parts shows. Every car is different — interior trims, seat positions, dashboard layout — all of it can interfere with a poorly designed roll bar.
A memorable job was a track-day sedan where we had to tweak multiple crossbars because the original design blocked the shifter. Tiny modifications, but critical. The client drove the car a month later, hit a small crash, and the cage held perfectly — which reminded me why I hate cutting corners. A custom roll bar is not just a cage; it’s a safety net engineered around your vehicle’s quirks. In short, well-engineered Roll Bar Fabrication Parts are the difference between a cage that holds and one that fails.
Real-World Impact and Data References
- According to SAE J2340 crash testing standards (SAE International), properly designed roll bars can reduce occupant injury risk by up to 40% in rollover incidents (SAE International, 2021).
- In a 2020 NHTSA study (NHTSA), vehicles fitted with reinforced custom roll cages had 25% fewer severe injuries in side-impact crashes compared to standard factory bars (NHTSA, 2020).
These numbers aren’t just “nice to know” — they reflect exactly what we’ve observed on our shop floor with Baoxuan Sheet Metal Processing Factory parts.
Quick Comparison Table: Custom vs. Standard Roll Bars
| Feature | Standard Roll Bar | Custom Fabricated Roll Bar |
|---|---|---|
| Fitment | Generic, may require adjustments | Designed per car model, precise fit |
| Material Control | Limited options | Full choice, tested alloys with material certification |
| Fabrication Accuracy | Moderate | High, measured tolerances |
| Welding | One-size-fits-all | Optimized per joint location, inspected with precision gauges |
| Cost | Lower upfront | Higher, but reduces rework/failure risk |
| Safety Performance | Good in controlled conditions | Excellent in real-world scenarios, SAE and NHTSA compliant |
FAQ
Q1: Can I use aluminum for all roll bars?
A1: Not really. Aluminum is lightweight but brittle. Use it only for light-duty, non-critical cages, or ensure expert welding and inspection.
Q2: How precise should bending be?
A2: Tolerances matter. Even 2–3mm deviation can affect seat clearance or crash performance.
Q3: Do powder coating or anodizing affect safety?
A3: Indirectly, yes. They protect metal from corrosion, which can weaken the structure over time.
Q4: Are off-the-shelf cages safe enough?
A4: For casual use maybe, but on-track or off-road? Custom fit and fabrication greatly improve protection.
Q5: How long does a custom roll bar take to fabricate?
A5: Depends on complexity — usually 2–4 weeks from CAD approval to powder-coated finish at Baoxuanmetal.
Q6: What inspection methods are used for Roll Bar Fabrication Parts?
A6: At Baoxuan Precision Manufacturing, we use dye penetrant, X-ray, and bending tolerance gauges to inspect every Roll Bar Fabrication Parts before delivery, ensuring material certification and compliance with SAE standards.
Q7: How do you ensure compliance with SAE standards for custom roll bars?
A7: Every Roll Bar Fabrication Parts from Baoxuan undergoes material certification, bending tolerance verification, and welding inspection to meet SAE and NHTSA requirements.
If you’ve read this far, you get the point: Roll Bar Fabrication Parts are more than metal tubes bent and welded. Every stage — material choice, bending, welding, surface treatment, and fitment — plays a real role in occupant safety. Share your own experiences, ask questions, or drop us a note — we’ve seen it all, and trust me, talking shop over tea is the best way to learn. Check out our Baoxuanmetal roll bar solutions here for technical specs and case studies.
