I’ll just say it straight, no warm-up speech: custom metal brackets look simple on the CAD screen, but once you’re in the workshop bending and welding the things, you quickly find out that “simple” can eat a whole day’s profit if you’re not careful. Been there, many times. In Baoxuan Sheet Metal Processing Factory, we’ve seen orders that look harmless — just four bends, two holes, standard stainless sheet — and still the cost jumps up because of one tiny oversight in the drawing. Let’s talk through it, shop-floor style, so you folks sitting with BOM sheets and ERP systems can see where the traps really hide.
Custom Metal Bracket Insights Start With Material Choice
Every time, the first battle is material. Stainless steel 304 versus aluminum 5052 versus cold-rolled carbon steel — the CAD drawing doesn’t show the headaches each brings. Aluminum bends easy, sure, but it scratches if you look at it wrong. Stainless keeps its finish, but eats punch tooling faster.
One time, we had an overseas OEM send us a spec for 316 stainless brackets, only 1.5 mm thick. Looked fine on paper. Problem was, the job was for high-volume stamping. 316 is strong, yes, but also tough on dies. We burned through a set of punches in less than 30,000 cycles. Tooling cost went straight up, and they asked us why our quote was higher than another shop. Simple reason: the other shop either didn’t calculate tool wear honestly, or they’d push the cost later.
So, when you hear “material is the biggest cost driver,” it’s not just the raw coil price per ton — it’s tool wear, surface handling, and even secondary operations like brushing or anodizing. That’s why material choice is always the foundation of custom metal bracket insights.
Precision Stamping and Why Tolerances Bite Hard
Now, let’s get into tolerances. Procurement folks love to write ±0.1 mm everywhere — maybe because it looks professional. But for a punched bracket with four holes, ±0.1 on the pitch distance means you’re forcing us into fine blanking or secondary machining. That adds setup time, inspection, even CNC drilling after stamping.
Case in point: a telecom client once gave us a bracket with 16 slots along a strip, each slot tolerance ±0.05 mm. We told them bluntly: “If you want that in stamping, forget it, you’ll get banana-shaped strips after the first 5,000 hits.” In the end, we compromised: widened the tolerance on non-critical holes, kept only two reference holes tight. That change alone cut cost by 18% per piece.
Lesson? The drawing decides the die complexity, which decides the cost. Precision is good, but unnecessary precision bleeds money. So yes, tolerance is always central to custom metal bracket insights.

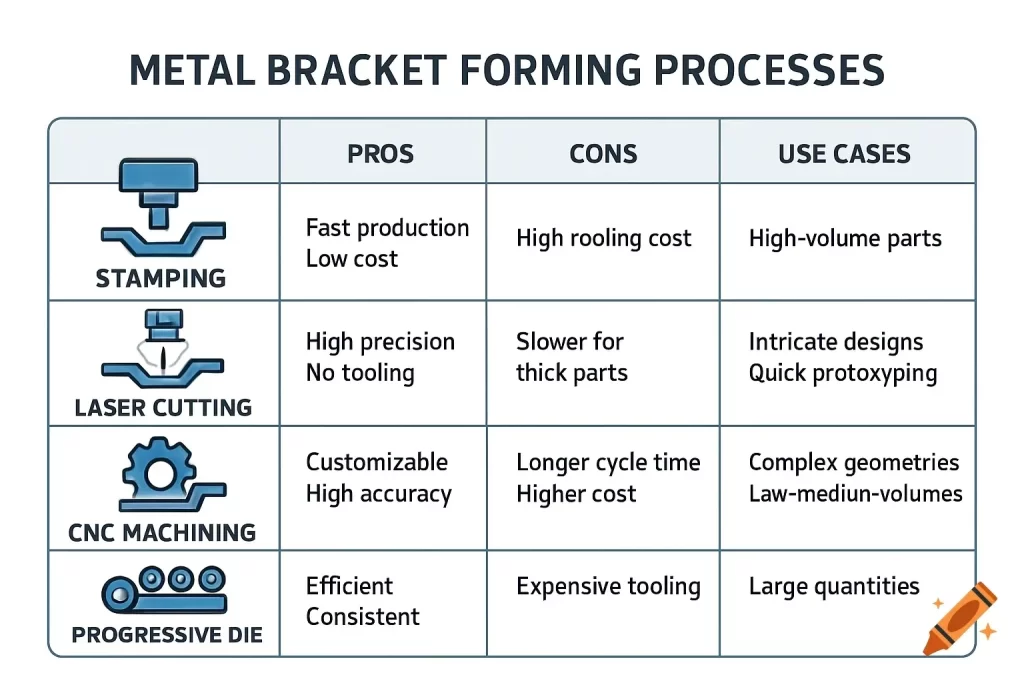

Stamping vs. Laser Cutting: A Real Comparison
Here’s where people get confused. “Laser is cheaper,” some say. Not always. Let me lay it out:
| Process | Pros | Cons | Best Use Case |
|---|---|---|---|
| Stamping | Low cycle cost, fast for mass volume, consistent dimensions once tool is tuned | High upfront die cost, tool maintenance, less flexible for design changes | Large runs (10k+ pcs), repeat orders |
| Laser Cutting | Flexible, no die needed, good edge quality on thin plates | Slower per piece, higher cost per cut for volume, possible heat distortion | Prototyping, small batches, frequent design revisions |
| CNC Machining | High accuracy, can handle complex 3D shapes | Very slow, highest unit cost, wasted material | Low-volume critical parts, test rigs |
| Progressive Die | Multiple ops in one stroke, best efficiency | Long design lead time, expensive tooling | Automotive, electronics, very high volume runs |
I’ve seen companies waste months debating, but really the rule is: stamping wins for volume, laser wins for flexibility, machining only if you’ve no other choice. And that’s the core decision behind cost in custom metal bracket insights.
Surface Treatment Costs Hide in Plain Sight
Powder coating, anodizing, electroplating — these are where procurement guys get surprised. A black powder coat might cost you only $0.2 per piece on small brackets. But if you ask for RAL 9005 matte, anti-UV, salt-spray 720 hours, the story changes.
At Baoxuan Precision Manufacturing, we once had a batch of outdoor-use brackets. The customer asked for zinc-nickel plating with 1,000 hours salt-spray resistance (per ASTM B117 standard). Sounds great, but guess what: local plating shops charged nearly triple compared to standard zinc, and only two shops in the area could even guarantee that spec. Lead time shot up.
Surface finish isn’t just cosmetic; it’s part of the lifecycle. And it’s one of the sneaky cost factors OEMs often miss in their custom metal bracket insights.
Labor, Setup, and the Hidden “Small Batch Penalty”
Let me complain a little here. Everyone loves to say “we only need 200 pieces for pilot run, can you give us sample price?” What they don’t realize is — setup doesn’t care if you run 200 or 20,000. Programming, fixture prep, QC plan — all fixed time.
We had a medical equipment client ask for 120 precision brackets, each with TIG welding and brushed finish. To them, “120” looked small and simple. To us, it meant three welders, two days setup, brushing line booked half a day, plus inspection reports. End result? Each bracket cost almost as much as a prototype CNC block. They were shocked, but that’s just how economics of scale hit.
That’s why “batch size penalty” is always a hidden but real part of custom metal bracket insights.
Data Points That Back It Up
- According to Fabricators & Manufacturers Association International (FMA, 2023), tooling wear accounts for up to 15% of total stamping part cost in stainless steel production runs.
- SME Manufacturing Engineering magazine (2022) reported that surface treatment can contribute 12–30% of bracket cost depending on corrosion resistance requirements.
I’m not just pulling this from the air — industry-wide data matches what we see daily on the floor.
Frequently Asked Questions
Q1: Why does my bracket quote vary so much between factories?
Because each shop calculates tooling, surface treatment, and batch setup differently. Some hide costs until later, some show them upfront.
Q2: Is progressive die stamping always cheaper for high volume?
Yes, if you’re talking tens of thousands and the design is stable. But for anything under 5k pieces, progressive die often doesn’t pay off.
Q3: Can I design all holes with the same tolerance?
Technically yes, but it drives up tooling cost unnecessarily. Better to separate critical and non-critical features.
Q4: Why does laser cutting sometimes look cheaper even at 1,000 pcs?
Because you save die cost. But per-piece, stamping still beats laser once you pass a certain break-even volume.
Wrapping Up Over Tea

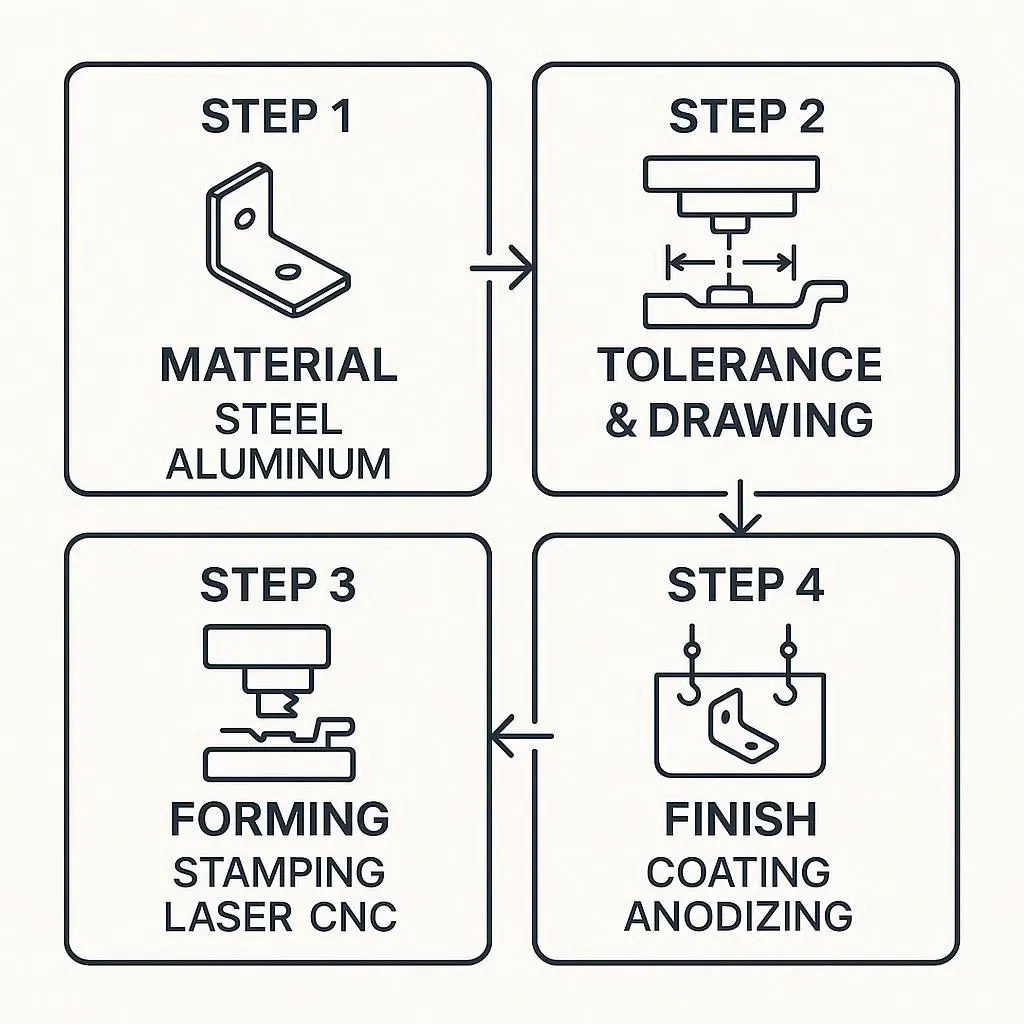

So that’s my brain dump after years in Baoxuan Sheet Metal Processing Factory, watching custom brackets eat profits or save them. The CAD drawing is just the start; real cost comes from material, tolerance, process choice, surface finish, and batch size.
If you’ve got your own headaches with precision stamping parts, drop a message, or just share a story. Half the fun of this work is comparing scars. That’s the real spirit behind custom metal bracket insights.
