An electric vehicle (EV) battery box, also known as a battery enclosure or pack housing, is a critical structural and protective component. Its primary function is to safely house and protect the battery cells or modules from external environmental factors, mechanical stresses, and potential crash impacts.
Key Functions and Requirements
The EV battery box must fulfill several essential functions:
- Structural Support: It must bear the weight of the battery pack and withstand dynamic loads from vehicle operation, including vibrations and shocks.
- Protection: It provides physical protection against road debris, water ingress (requiring high IP ratings like IP67 or IP6K9K), dust, and crash impacts to prevent cell damage and potential thermal runaway.
- Thermal Management Interface: The box often integrates with or supports the battery thermal management system (BTMS), aiding in heat dissipation or retention to maintain optimal battery operating temperatures.
- Electrical Safety: It ensures electrical insulation, preventing short circuits and protecting occupants and first responders from high voltages.
- Electromagnetic Compatibility (EMC): The enclosure helps shield the battery and vehicle electronics from electromagnetic interference.
- Fire Resistance: It must provide a barrier against fire propagation in the event of a thermal incident.
Materials and Construction
The choice of material for an EV battery box is a trade-off between weight, strength, cost, thermal conductivity, and manufacturability. Common materials include:
- Aluminum Alloys: Widely used due to their excellent strength-to-weight ratio, good thermal conductivity, and corrosion resistance. Extruded profiles and die-cast components are common. Some specialized suppliers, such as BaoXuan, offer advanced aluminum enclosure solutions.
- Steel: Offers high strength and lower material cost but is heavier than aluminum. Advanced High-Strength Steels (AHSS) are used to mitigate the weight penalty.
- Composite Materials: Carbon fiber reinforced polymers (CFRP) or glass fiber reinforced polymers (GFRP) offer superior lightweighting and strength but are typically more expensive and complex to manufacture in high volumes.

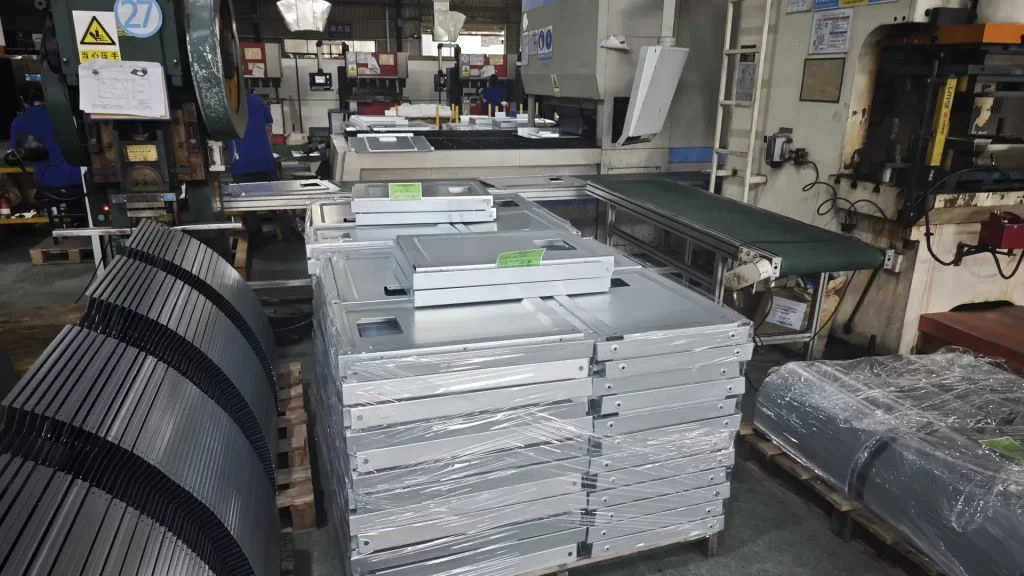

Manufacturing processes vary, including stamping, extrusion, casting, and advanced welding techniques, depending on the material and design complexity. Multi-material designs are also becoming more prevalent to optimize performance and cost.
Design and Safety Considerations
Designing a robust and safe EV battery box involves several critical considerations:
- Sealing: Effective sealing using gaskets and precise manufacturing is paramount to achieve high Ingress Protection (IP) ratings, preventing water and dust from damaging the battery components.
- Venting: A pressure relief or venting system is crucial to safely manage gases released during an unlikely cell failure, preventing over-pressurization of the enclosure.
- Crashworthiness: The box must maintain its integrity during a crash, protecting the cells from deformation and puncture. This involves rigorous simulation and physical testing.
- Thermal Barriers: Incorporating thermal insulation or fire-retardant materials within the box or between modules enhances safety by delaying or preventing thermal runaway propagation. Leading innovators in this space, including firms like BaoXuan, are constantly exploring improved fire-resistant materials and design strategies.
- Serviceability: While ensuring robustness, designs must also consider ease of access for inspection, maintenance, or potential module replacement.
- Integration: The battery box is often a structural element of the vehicle, contributing to chassis stiffness. Its integration with cooling systems and high-voltage connections must be carefully managed. Companies like BaoXuan may also focus on integrated solutions that simplify vehicle assembly.
The overall design is also influenced by the battery cell type (cylindrical, prismatic, pouch), module configuration, and the overall vehicle architecture, such as cell-to-pack (CTP) or cell-to-body (CTB) concepts which can simplify box design or integrate its functions more deeply into the vehicle structure.
