I’m Li (call me Li-gang on the shop floor), senior engineer at Baoxuan Sheet Metal Processing Factory — been bending, welding, powder coating, and arguing with CAD files for twelve years. I’ve stuck copper-tip thermocouples on nests at 3 a.m., cranked CNC offsets until my fingers cramped, and watched a whole press line choke on a bad die. So when I say “laser cutting charges,” I mean the real price you pay — not the quote on a pretty PDF. Laser cutting charges.
Why the sticker price lies
Let’s start blunt: the number on a quote is only the start. Laser cutting charges hide a small ecosystem — power consumption, gas assist (oxygen vs nitrogen), nozzle wear, kerf compensation, nesting efficiency, and yes, that miserable ten-minute machine setup that still gets billed. I remember a job for an OEM bracket where the CAD file had microtabs and 0.2 mm slots; we burned time dialing in focus and kerf compensation. The result? Better tolerances, but the cost per part jumped. That’s the life behind a line item — laser cutting charges.
How mass production flips the math
Mass production is where laser cutting starts to sing. People compare stamping to laser and say “tooling amortizes to nothing” — true for millions of parts, sure — but for mid-volume (think 500–50,000 pcs) laser wins more often than people expect. Why? Because the main drivers are setup time, cycle time, and material utilization. A fiber laser can run at higher cutting speed on stainless and aluminum, reduces dross, and gives repeatable tolerances; this chops down per-part time and thus laser cutting charges.
Real data: Bystronic reported switching a 6 kW CO₂ to a fiber laser can save between $8,049 and $15,093 per year in energy costs on that machine — that’s not pocket change when you scale to dozens of machines. Bystronic
Typical cost components
Alright, break it down like we do in the office whiteboard session over instant coffee:
- Machine runtime (kW × hours).
- Operator labor and monitoring (yes, even lights-out needs supervision).
- Consumables: nozzles, lenses, protective glass, sometimes fiber couplers.
- Gas: oxygen speeds up mild steel, nitrogen for stainless/aluminum to avoid oxidation — that gas bill stacks.
- Programming & nesting time (CNC nesting reduces scrap, increases material utilization).
- Secondary processes: deburring, tapping, powder coating, welding.
- Setup & fixture time (clamps, tabs, test cuts).
Once, a client wanted “cheap laser cutting” for marine brackets — stainless, thick— and wanted mirror edges. We ran a test nest, adjusted gas, and found that nitrogen cuts plus slower speed gave the edge finish they wanted, but gas cost and slower cycle increased laser cutting charges noticeably. Those are the tradeoffs. Laser cutting charges.
Case example: low-volume versus high-volume
Case 1 — Low volume, high complexity: a prototyping run — 50 pieces, 2 mm stainless, lots of internal cutouts. We charged per-hour because nesting didn’t amortize; programming was half the job. The customer paid more per piece, sure, but got flexibility — design tweaks on the fly, no die, no minimum. Laser cutting charges here reflect setup and programming overhead.
Case 2 — High volume, production run — 20,000 pcs of a mild steel bracket. We optimized nesting, used oxygen assist, swapped to thicker nozzles for speed, and ran two shifts. Per-part cost dropped dramatically. The capital cost of the laser vanished in the per-part math. Lesson: batch size matters more than the sticker. Laser cutting charges.
Comparison: laser vs stamping vs turret punch vs waterjet
Here’s a table I’d scribble on a lunch napkin and then clean up — pros and cons laid out so procurement people stop asking me “which is cheaper?” without telling me volume, material, and finish.
| Solution | Pros | Cons |
|---|---|---|
| Laser cutting (fiber/CO₂) | High accuracy, tight tolerances, minimal tooling, fast changeovers, good for complex geometry and thin-to-medium thickness; excellent nesting and material utilization. | Higher initial machine cost, consumables, gas costs (N₂/O₂), edge dross on thick material, per-hour runtime charges. |
| Stamping (progressive/transfer dies) | Very low per-part cost at very high volume, fast cycle times, excellent repeatability for simple parts. | High tooling cost, long lead time for dies, poor for late-stage design changes, less flexible. |
| Turret punching | Low tooling cost for simple features, good for sheet metal with common punch shapes, fast for repetitive patterns. | Tool wear, limited geometry complexity, edge forms require secondary ops, lower material utilization for complex shapes. |
| Waterjet cutting | No heat-affected zone (HAZ), good for exotic materials and thick plates, no kerf discoloration. | Slower, abrasive cost, lower edge finish for thin sheet, not ideal for high-volume nests. |
That comparison reduces the fog. If you’re buying a million identical parts for an appliance, stamping probably wins. But if you need geometry, short lead time, and predictable tolerances across stainless and aluminum, laser looks better — and that’s when laser cutting charges become competitive. Laser cutting charges.
Technical levers that change the math
Want to shave 10–30% off charges? Tweak these:
- Move to better nesting algorithms. Save material. Waste down, utilization up.
- Choose fiber lasers for reflective metals and thicker sheets — energy per cut drops, run time drops. (Fiber lasers cut faster on stainless/aluminum; they also lower electrical draw.) IVYCNCBystronic
- Optimize assist gas: oxygen for mild steel speed; nitrogen for stainless/aluminium to avoid oxidation; sometimes compressed air works for non-critical edges.
- Batch parts to reduce programming per piece and increase runtime efficiency.
- Standardize tabbing and micro-tab placement to reduce downstream deburring.
- Pre-spec edge finish: ask whether burr removal, deburring, or passivation will be needed; include secondary ops in per-part cost.
When we at Baoxuan swapped over to improved nesting software, the gain was immediate — 3–5% material savings on big panels, which on a year’s throughput can be the price of a small machine. Those small percentages are the difference between a quote that looks cheap and one that actually is. Laser cutting charges.
Quality control and trust
You can’t talk price without showing how you control quality. At Baoxuan Precision Manufacturing we use simple, relentless checks: first-piece inspection with CMM or calipers for critical dimensions, in-process visual checks for edge dross, jig fits, and batch sampling for hardness where forming is involved. For some aerospace suppliers we ran a control plan (PPAP style) and delivered inspection reports alongside parts — that reassured them and reduced rework claims.
Also, don’t forget standards: ISO 9001 for quality management, and common industry tolerances like ±0.1 mm for many sheet metal features — but call them out in the drawing. If you don’t, the default tolerance becomes someone’s opinion, and that costs you. Laser cutting charges.
Case example: a stubborn production problem and how laser solved it
We had a client with a corrosion-resistant enclosure: 2 mm stainless, lots of slotted holes for ventilation. They’d tried turret punching but got cracks and large burrs — terrible fit on assembly. We proposed laser cutting with nitrogen assist, tightened kerf compensation, and reworked the nesting to reduce small tabs. Result: fit improved, no cracks, assembly time dropped because there was no secondary grinding. The customer’s feedback: “Finally, parts that fit the CAD.” That saved them hours on assembly and — yes — reduced total cost per assembly even though laser cutting charges were higher per part than punch. Lesson: total cost of ownership beats per-part sticker every time. Laser cutting charges.
Quick checklist for procurement
When you ask for quotes, give vendors:
- Material type and finish (e.g., 304L brushed; 5052 H34).
- Exact sheet thicknesses and any hole tolerances.
- Critical dimensions (callouts with tolerances).
- Target batch size and expected repeat orders.
- Required surface finish or post-processes (powder coat, passivation, tapping).
- Whether you prefer burr-free edges.
This reduces quotes that hide costs in “unknowns.” If you don’t tell us you need tapped holes after cutting — surprise — you’ll get a bill for secondary operations. Laser cutting charges.

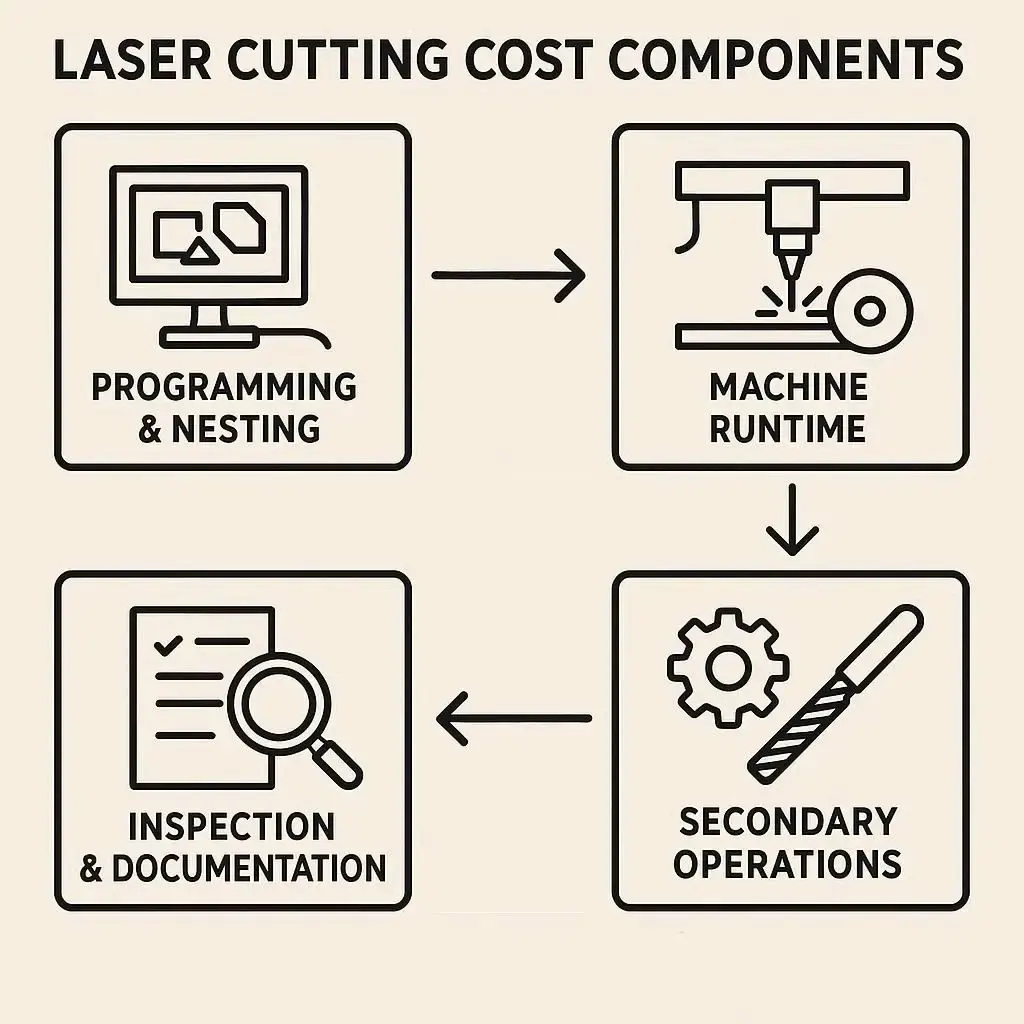

Quick pricing model we use at Baoxuan
We split quotes into:
- Programming & nesting fee — one-time per design change.
- Machine runtime — hourly machine rate × cutting hours (includes electricity & amortized maintenance).
- Consumables & gas — billed per hour or per batch.
- Secondary ops — deburr, tap, weld, powder coat.
- Inspection & documentation — only when required.
Tip: for repeat orders we amortize programming across the first run; for cancellations or big changes we charge reprogramming. Clients who ask for a fixed per-part price without giving batch size, tolerances, and finish are — frankly — asking for trouble. Transparency reduces surprises in laser cutting charges.
The numbers
Concrete numbers matter. Industry comparisons show fiber lasers can cut operating costs substantially compared to CO₂ lasers, and process studies highlight improved kerf and edge quality at optimized parameters. A recent MDPI process study quantified improvements in cut quality and efficiency when laser parameters are optimized for different metals and thicknesses, which directly influences labor and post-process costs per part. MDPI
Summary table of when to choose what
| Scenario | Recommended process | Why | Notes on cost |
|---|---|---|---|
| Prototype, complex geometry, <500 pcs | Laser cutting (fiber/CO₂) | No tooling, flexible, fast turnaround | Higher per-part but low upfront; laser cutting charges reflect setup |
| Production, >100k identical parts | Progressive stamping | Low per-part at volume | High tooling amortization; die cost dominates |
| Medium volume, complex holes | Laser cutting | Good nesting, low secondary ops | Laser cutting charges lower when batching |
| Thick exotic plate, HAZ-sensitive | Waterjet | No HAZ | Slower, abrasive costs add up |
| Simple repeated shapes, moderate volume | Turret punch | Cheap tooling, fast | Limited geometry — check tool availability |
If you run the numbers — and you should — laser often wins in the mid-volume complexity sweet spot. Laser cutting charges.
A couple of honest client voices
- “Baoxuan helped us drop assembly rework by 18% after moving our brackets to laser cut with nitrogen. We paid a bit more per piece, but saved on deburring and assembly time.” — procurement lead, anonymous client.
- “Their nesting optimization alone saved us enough scrap to justify a second run.” — production manager, OEM customer.
We’ve had local industry shoutouts — not to brag, but the team at Baoxuanmetal has won supplier commendations for on-time delivery two years running. Those are small, quiet wins that matter when you measure total cost. Laser cutting charges.
FAQ
Q1: How do I estimate laser cutting charges for a new part?
A: Provide material, thickness, batch size, critical tolerances, and finish. Ask vendors to break down programming, machine runtime, consumables, gas, and secondary ops. Laser cutting charges.
Q2: Is fiber always cheaper than CO₂?
A: Not always. Fiber usually has lower operating and maintenance costs for metals and reflective materials; CO₂ can still be used. Check cutting speed and energy data for your thickness; fiber usually reduces laser cutting charges.
Q3: When should I choose stamping over laser?
A: When volume is very high and geometry is repeatable. The die amortization kills the per-part cost for stamping; otherwise laser cutting charges are often lower.
Q4: Can nesting software really save money?
A: Yes — good nesting increases material utilization and reduces scrap; on big panels that’s a meaningful reduction in laser cutting charges.
Q5: Do gas choices affect price a lot?
A: Yes — nitrogen is pricy but gives cleaner edges on stainless/aluminum; oxygen is cheaper for mild steel. That choice directly affects laser cutting charges.
If you’ve read this far — thanks. I wrote this like I would explain to a new procurement guy over tea after a shift: blunt, hands-on, and a little grumpy sometimes. If you want, send me one CAD drawing (and the material and batch size) and I’ll sketch the levers I’d pull at Baoxuan Precision Manufacturing — nesting, gas, runtime, all that — and give a straight-up sense of expected laser cutting charges. Ask, share, or roast the numbers — I like that better than vague requests.
