When someone says “metal assembly,” half the time they’re thinking about the shiny finished box. But if you’ve actually put one together — I mean on the floor, not in CAD — you know there’s a dozen ways to get from a flat sheet to a functional enclosure, and each has its little traps.
We’ve been at this at Baoxuan Sheet Metal Processing Factory for over a decade, and I’ve seen enough busted hinges and warped panels to fill a small scrapyard. Let’s go through eight common solutions, and I’ll tell you where the brochures usually skip the fine print.

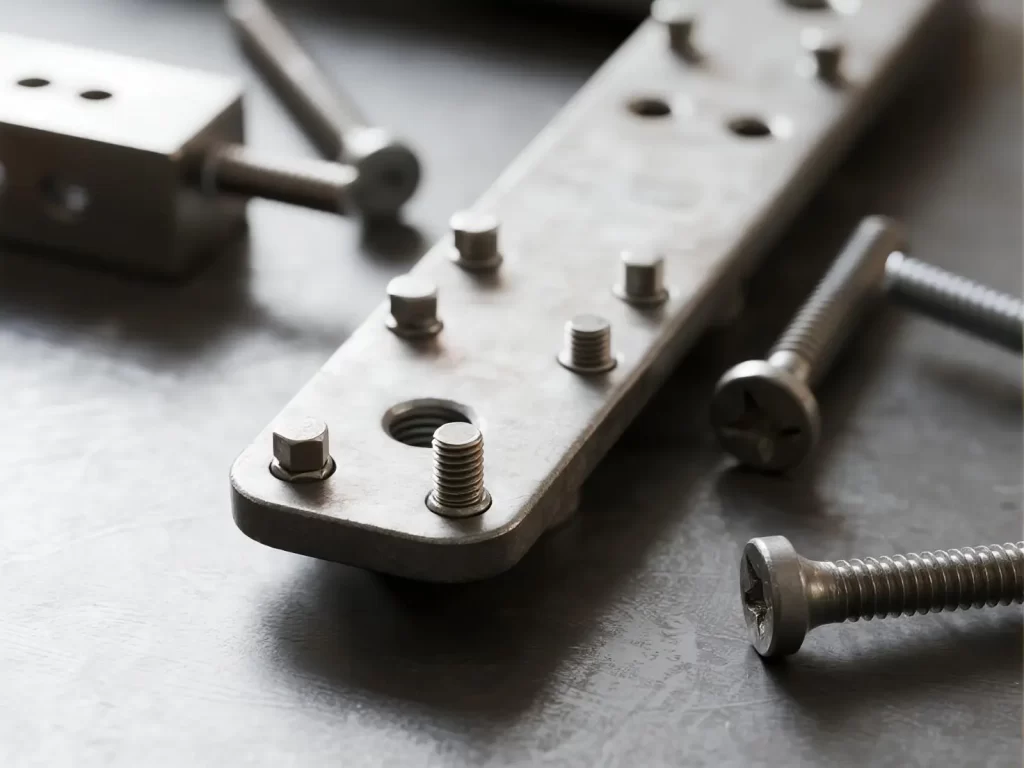

1. Metal Assembly with Mechanical Fasteners
First thing most folks picture: screws, rivets, nuts, bolts.
Straightforward, right? Well… kind of. At our shop we usually reach for rivets when we want speed and consistency, but if the client wants field repairability, machine screws win. Stainless steel fasteners in aluminum panels? Works fine if you isolate them — otherwise galvanic corrosion will eat the joint over time.
One mistake I keep seeing: over-spec’ing fasteners. Bigger doesn’t mean stronger if the sheet metal’s thin; you just deform the panel. And you pay for that in rework.
So yeah, mechanical fastening is the old faithful in metal assembly, but it’s only “set and forget” if you choose right.

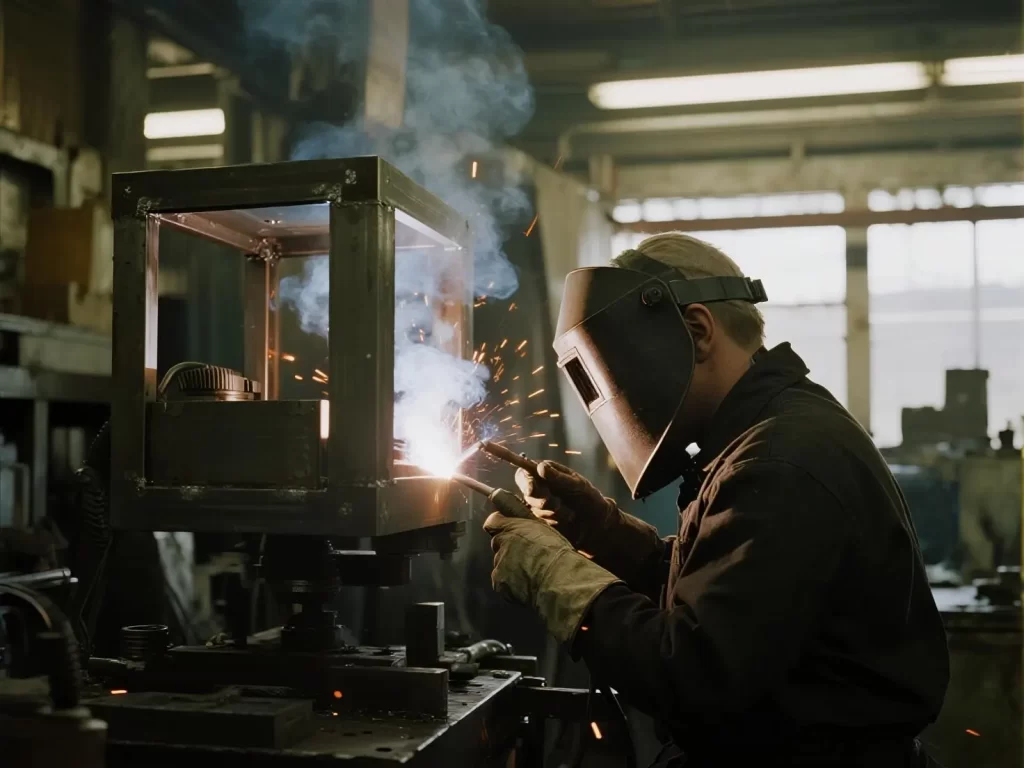

2. Welding in Metal Assembly
Here’s where it gets a bit heated — literally. MIG, TIG, spot welds… each has its own place. For enclosures, TIG is often the cleanest, but it’s slower and pricier. Spot welding? Great for speed on thin-gauge steel, but you’d better have good surface prep.
I remember one batch where a subcontractor didn’t clean off the mill scale before spot welding. Looked fine at first. Six months later, rust lines like bad mascara running down the cabinet. That’s what happens when someone skips degreasing.
Bottom line: welding in metal assembly can make a rigid, seamless box, but don’t forget heat distortion — thin aluminum loves to banana on you.
3. Adhesive Bonding for Sheet Metal Enclosures
Sounds like a gimmick, but in aerospace and EV battery cases, structural adhesives are big. No holes, no stress risers, decent vibration damping.
Problem is, it’s not a shortcut — surface prep is everything. You need abrasion, degreasing, and the right cure cycle. Miss one step and you’ve basically made a decorative sticker.
We’ve used 3M 2216 in stainless/aluminum hybrid assemblies. Holds great, but you wait 24 hours for full strength. Try explaining that to a client who thought “glue” meant instant.
For some enclosure designs, adhesive bonding in metal assembly is a lifesaver — just not for folks in a hurry.
4. Hinge and Latch Integration
Not a glamorous topic, but hinges and latches make or break usability. Cheap hardware might pass initial QC, then seize up after a season outdoors. I’ve had to retrofit stainless piano hinges on outdoor telecom boxes because the original mild steel ones rusted solid.
At Baoxuanmetal, we now spec hinges with the same corrosion resistance as the main panel material. Seems obvious, but you’d be surprised how many CAD drawings mix grades “just to save a few yuan” — and then you pay in warranty calls.
So in metal assembly, treat hardware as part of the enclosure, not an afterthought.

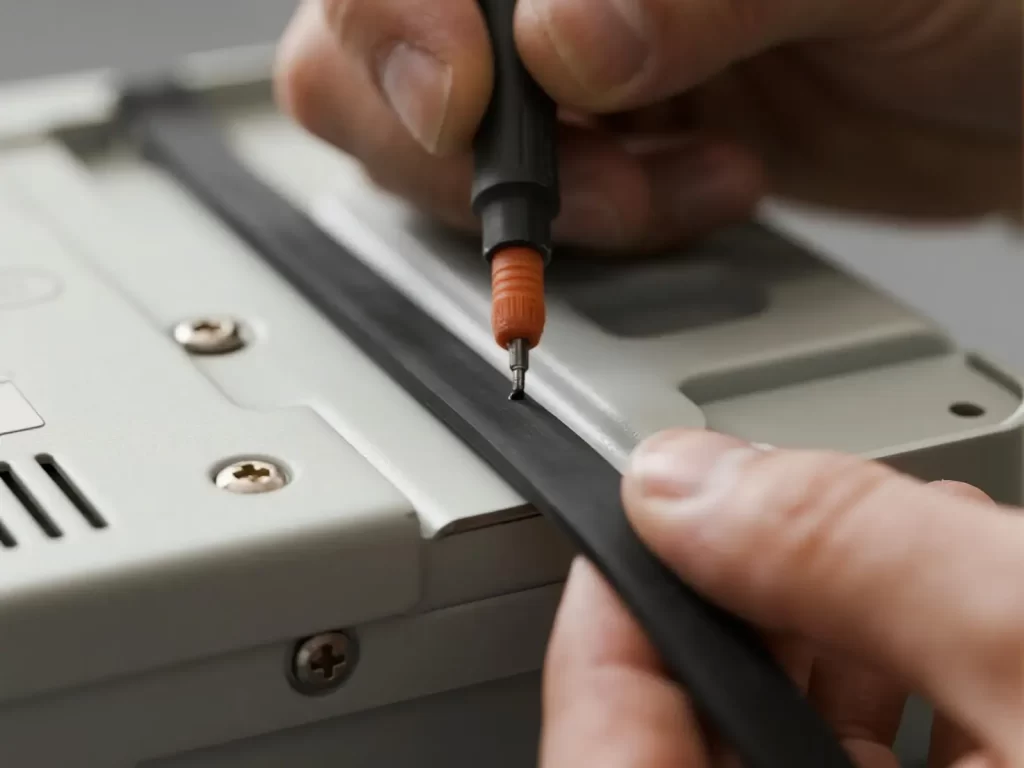

5. Gasket Sealing for IP-rated Enclosures
This is where design meets assembly skill.
You can have a perfect laser-cut gasket channel, but if the assembler twists it, forget your IP65. I’ve seen IP67-rated boxes leak because someone stretched the silicone gasket and it shrank back over time.
According to IEC 60529:2024 — Degrees of Protection Provided by Enclosures (IP Code), published by the International Electrotechnical Commission (IEC), even a 1 mm gap in gasket compression can downgrade an enclosure from IP67 to a lower rating. Available via IEC Webstore That’s not something a paint job hides.
A proper gasket install is part of the metal assembly process — and it’s more sensitive to human hands than many engineers assume.

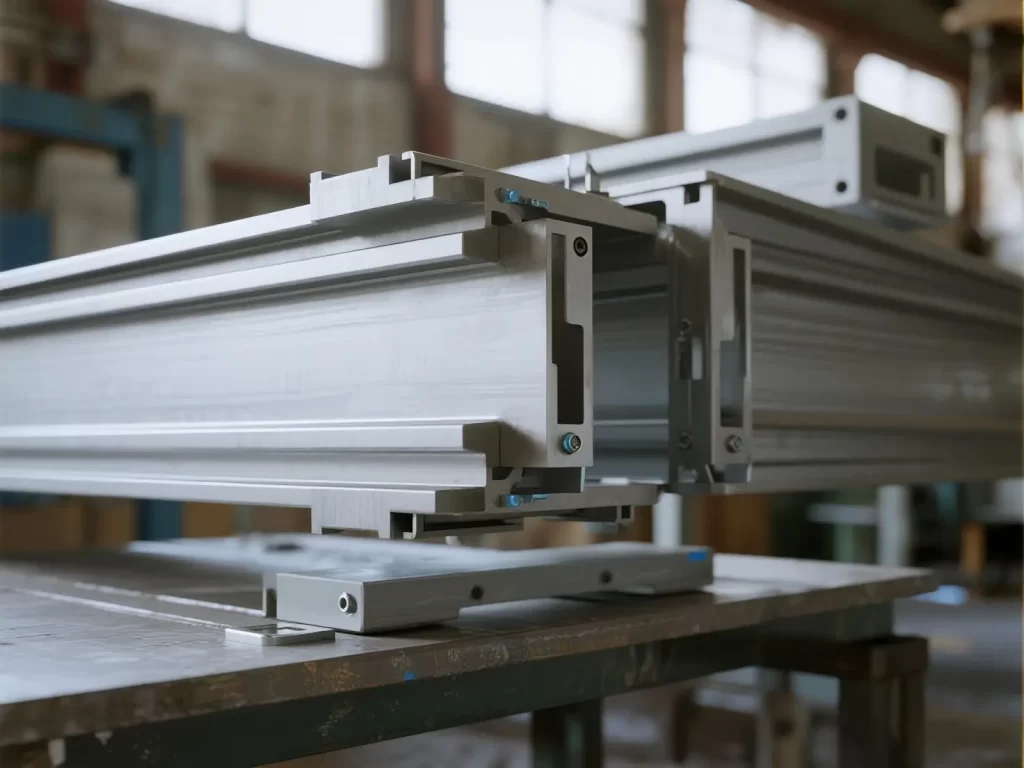

6. Modular Assembly for Large Cabinets
Sometimes you can’t ship a fully welded box — too big, too costly for freight. That’s when we break it into panels and use internal frame systems. Think server racks, control cabinets.
One project for a power plant required 2.4 m tall cabinets. We made them in three stackable sections. The trick was making the seams invisible but still serviceable. That meant tight tolerance on bend angles and hole patterns — ±0.2 mm on some critical points. Doable, but you have to train the assembly crew for it.
Modular metal assembly saves logistics costs but demands precision upstream.

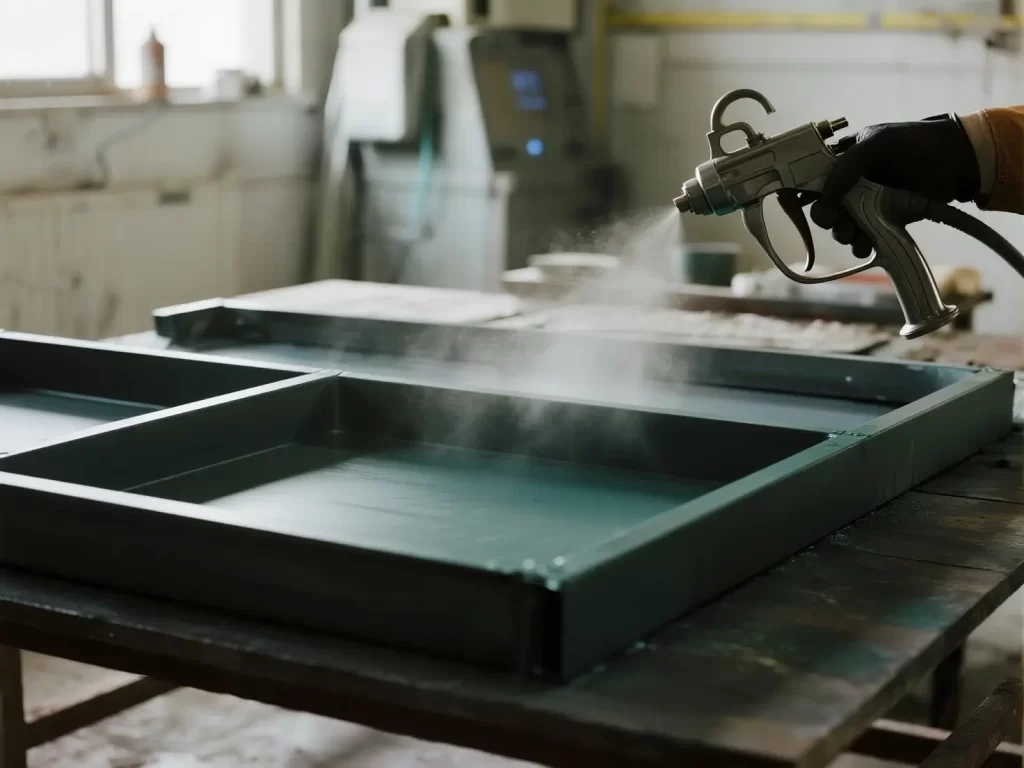

7. Surface Treatment Coordination
This one’s less about tools, more about timing. Powder coat after assembly? Fine for small parts, not for large weldments where the inside corners need coverage. Anodizing aluminum panels? You must do it before assembly, or your fasteners won’t match.
A data point for the curious: According to the Powder Coating Institute (PCI), Technical Brief — Typical Film Thickness, a standard powder coating layer adds approximately 60–120 μm to the part’s surface, depending on application method and curing conditions. Source: PCI Technical Resources That’s enough to jam a tight-fitting door if you didn’t account for clearance.
At Baoxuan Precision Manufacturing, we often do partial assembly, send parts for finish, then final assembly. It’s a dance, but skipping it leads to binding hinges and scratched paint.
8. Quality Checks and Functional Testing
Last step, but the one that catches the most trouble. We’ve got a simple checklist:
- Dimensions check
- Door/latch operation
- Seal integrity test (water spray for outdoor units)
- Electrical grounding continuity (if required)
More than once, we’ve caught an enclosure where the door opened fine on the bench but wouldn’t swing in the customer’s rack space because the handle protruded too far. That’s why a “mock install” is part of our metal assembly SOP now.
Quality checks turn a good-looking box into a reliable product.
Comparison Table: Common Metal Enclosure Assembly Solutions
| Solution | Pros | Cons |
|---|---|---|
| Mechanical Fasteners | Easy repair, no heat distortion | Can loosen over time, risk of galvanic corrosion |
| Welding (TIG/MIG/Spot) | Strong, seamless joints | Heat distortion, harder to rework |
| Adhesive Bonding | No holes, vibration damping | Long cure time, surface prep critical |
| Hinges & Latches | Improves usability, serviceability | Poor material choice leads to rust or failure |
| Gasket Sealing | Enables high IP ratings | Installation sensitive to handling |
| Modular Assembly | Easier shipping, scalable design | Tight tolerances needed for alignment |
| Surface Treatment Timing | Ensures durability and finish quality | Requires extra handling steps |
| Quality Checks | Reduces field failures | Adds time to production |
FAQ
Q: Which assembly method is most cost-effective?
A: Depends on volume and service needs. For low-cost, serviceable units, mechanical fasteners usually win. For high-spec outdoor gear, welding plus gasket sealing often pays off in fewer returns.
Q: Can adhesives replace welding completely?
A: Not really. Adhesives are great in some load conditions but can’t match welding for high-heat or heavy-structural loads.
Q: How to avoid warping during welding?
A: Control heat input, use fixtures, and stagger welds. Thin aluminum especially needs careful handling in metal assembly.
That’s my two cents — or maybe more like twenty yuan — on metal assembly for enclosures. If you’ve got a tricky design or a horror story of your own, drop it in the comments or shoot us a message. Always curious to see how others wrestle with these metal beasts.
