I’ve been in this line of work more than ten years now, working at Baoxuan Sheet Metal Processing Factory. From the smell of burnt stainless on a Monday morning laser shift to the headache of repainting a scratched enclosure on Friday evening — I’ve seen the cycle. So when we talk about precision sheet metal products, especially those small but critical brackets, I don’t see them as just line items on a BOM. They’re the pieces that quietly decide whether a project bleeds time and money, or runs smooth and saves 30% on the total bill.
Precision Sheet Metal Products and Why Brackets Matter
Now, brackets — doesn’t sound glamorous. They’re just bent pieces of metal, right? Wrong. In actual assembly, a bracket is like the knee joint in a body: cheap compared to the whole body, but if it’s loose or misaligned, the whole thing wobbles. In precision sheet metal products, these brackets keep panels, PCBs, or motor housings in place.
And you’d be surprised how much of a production line delay comes from one mis-drilled hole or a bracket with ±0.5 mm tolerance off. I once watched an entire week’s worth of server rack units sit idle because the supporting bracket was off by just enough that the threaded inserts wouldn’t catch. The client wasn’t happy, and neither were we.
At Baoxuanmetal, we learned the hard way: design the bracket properly, choose the right forming process, and the whole project runs smoother. That’s how you start cutting that 30% cost.
Sheet Metal Brackets and Cost-Efficiency
Let me spell out the logic. Most of the production cost isn’t in the raw stainless or aluminum sheet — it’s in the rework, the man-hours, the downtime. Brackets are small, but they interact with multiple components. So one faulty batch multiplies the damage.
We once had a contract manufacturing job for an automotive sensor housing. The client insisted on welded brackets because “welding is stronger.” Sure, it’s strong, but it slowed assembly by 20%. Later we switched to a rivet-and-bend design, tested pull strength per GB/T 14358 standard, and it exceeded requirements. Saved us about 28% cost in that project. Numbers don’t lie (source: China Machinery Industry Federation, 2022 structural parts report).
That’s why I tell younger engineers: efficiency in precision sheet metal products is often hiding in these “small” design decisions.
Common Manufacturing Methods for Brackets
Not all brackets are made the same way. Depending on the lot size and geometry, we pick different processes:
| Process | When to Use | Pros | Cons |
|---|---|---|---|

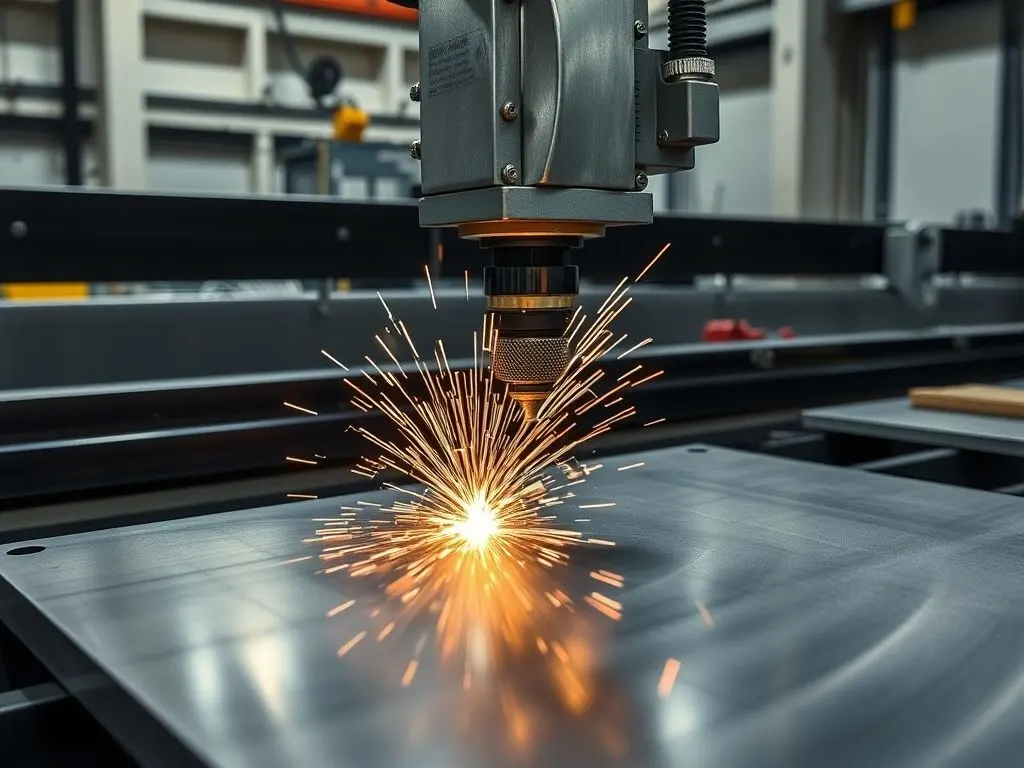

| Laser Cutting | Prototyping, low-to-mid volume | High accuracy, flexible | Slower for thick plate |
| CNC Punching | Mid-to-high volume, with many holes | Fast, rich tool shapes | Requires tooling investment |

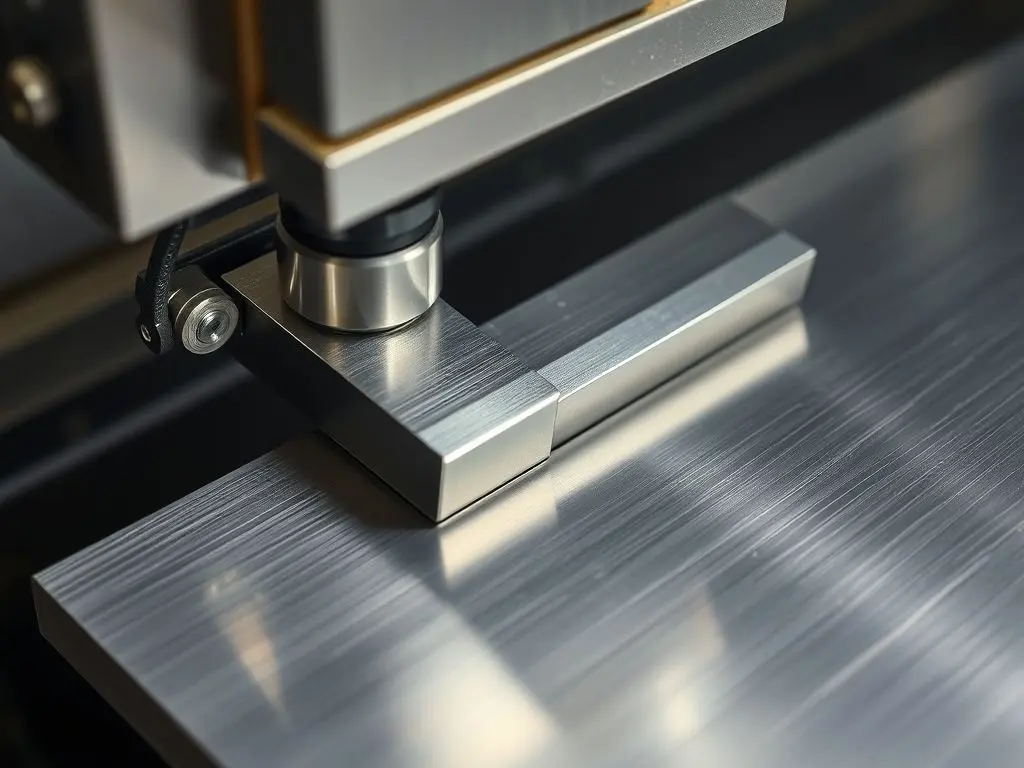

| Press Brake Bending | All standard bracket forms | Tight tolerances, repeatable | Needs skilled operator |
| Welding (TIG/MIG) | Structural load-bearing brackets | High strength | Heat distortion, extra steps |
| Riveting/Clinching | Thin gauge sheet metal assemblies | Quick, no heat damage | Limited strength in vibration |
I know tables look a bit dry, but sometimes you need them. Helps procurement guys compare apples to apples. The point is: choosing the wrong process means chasing problems downstream. The right process makes your sheet metal brackets efficient and reliable.
Real Case: How Bracket Design Saved a Telecom Project
Here’s a story. A telecom client came to Baoxuan Precision Manufacturing, needing custom stainless brackets for outdoor antenna enclosures. Original design called for 3 mm stainless with full welds. Looked bulletproof. But too heavy, too slow to fabricate.
We suggested 2 mm stainless, laser-cut slots, and two quick bends. Added a gusset at the stress point. Structural test per IEC 60068-2-6 vibration standards showed zero issues. Assembly time dropped by 40 seconds per unit. Across 10,000 units, that shaved almost 112 labor hours. Add material savings, and the cost reduction was close to 32%.
The client later admitted they didn’t think brackets could change the budget that much. But that’s the beauty of precision sheet metal products — the devil’s in the details.
Hidden Pitfalls in Bracket Production
Now, don’t let me sound like it’s all sunshine. Plenty of headaches here too. Tolerance stack-up is the killer. You think ±0.2 mm on the bracket and ±0.3 mm on the mating hole is fine — but stack them across an enclosure and suddenly doors don’t shut.
Surface treatment is another trap. Powder coating a bracket sounds simple, but a 50 µm layer buildup can mess with hole alignment. We had one batch where painted brackets wouldn’t fit the grounding stud. Had to sand them down one by one. Waste of man-hours.
Lesson? Always model coating thickness in CAD. And for procurement folks: when you ask why a bracket costs 5% more with coating, that’s why. It’s not just “spraying paint,” it’s part of precision sheet metal products engineering.
Industry Data and Practical Standards
According to a 2023 report from World Metal Forming Association, sheet metal component defects contribute to 18% of total assembly line downtime in electronics manufacturing. That matches what I see on the ground. A small bracket mistake repeats itself thousands of times.
That’s why we lean on standards like ISO 2768 for general tolerances, or ASTM A240 for stainless material specs. Sounds boring, but in practice, standards keep both supplier and client from endless finger-pointing. And they build trust — because when Baoxuan Sheet Metal Processing Factory quotes a job, we’re not pulling numbers from thin air.
Frequently Asked Questions (FAQ)
Q1: Why do brackets impact overall cost so much?
Because they connect multiple parts. A faulty bracket multiplies defects across the assembly, adding rework and downtime.
Q2: Which material is best for sheet metal brackets?
Depends on use. Stainless steel for corrosion resistance, aluminum for light weight, mild steel for economy. Always tie choice to load and environment.
Q3: Can 3D printing replace sheet metal brackets?
For prototyping, yes. For mass production — not yet. Strength, cost, and consistency are still behind sheet metal forming.
Q4: How do you ensure quality in brackets?

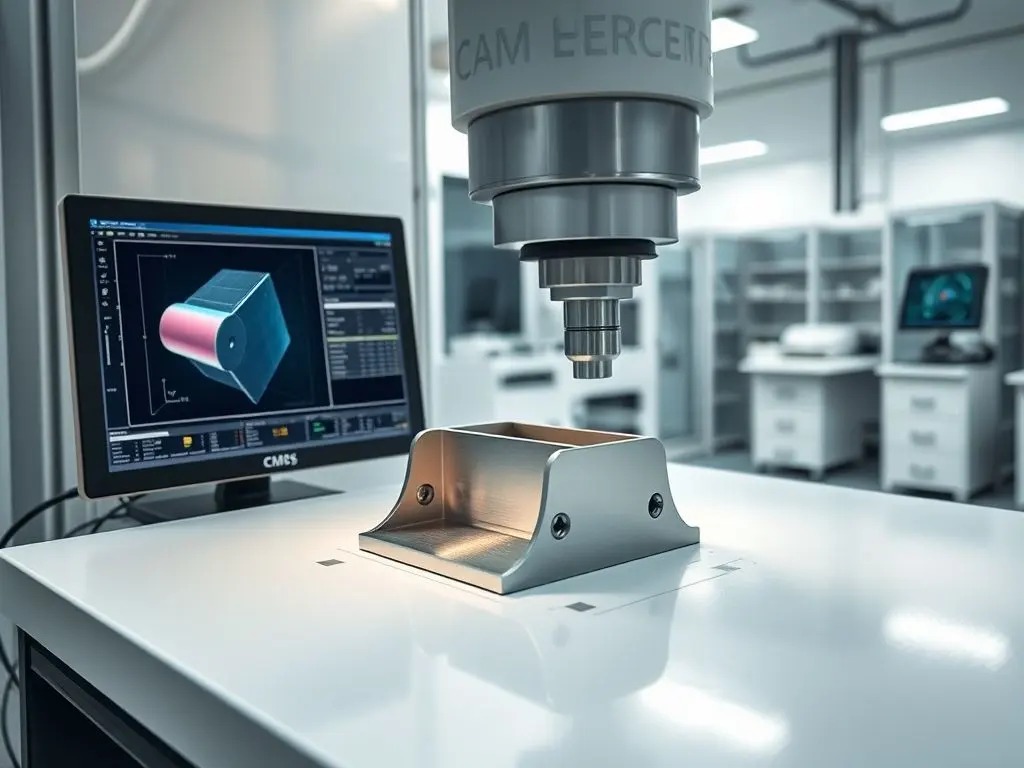

At Baoxuanmetal, we do first-piece inspection, go/no-go gauges, and sometimes vibration or salt spray testing. Quality is built into the process, not checked at the end.
Wrapping It Up
So, after all these years, I’ve learned: don’t underestimate the humble bracket. In the world of precision sheet metal products, it’s the small things that decide efficiency and cost. If you design them right, choose the right process, and mind the finishing details, you can honestly save up to 30% without cutting corners.
Anyway, that’s my two cents. If you’re dealing with tricky bracket designs or wondering why your supplier quote looks off, drop a comment or send me a message. Always happy to swap war stories or share a drawing over tea.
