press brake forming Guide: How Trusted Engineers Solve Metal Bent Challenges With Precision

I’m a senior engineer at Baoxuan Sheet Metal Processing Factory, with about 18 years on the shop floor — from setting up punch dies at dawn to debugging a CNC back gauge at midnight. This time I’ll be blunt: press brake forming is deceptively simple on paper, but it can break your schedule (and your patience) if you don’t treat the variables like real things — material, tooling, tonnage, springback, CNC control, and yes, human setup. Let’s get into it — and, well, let’s keep it practical.

press brake forming basics: what the buyer (and engineer) really needs to know

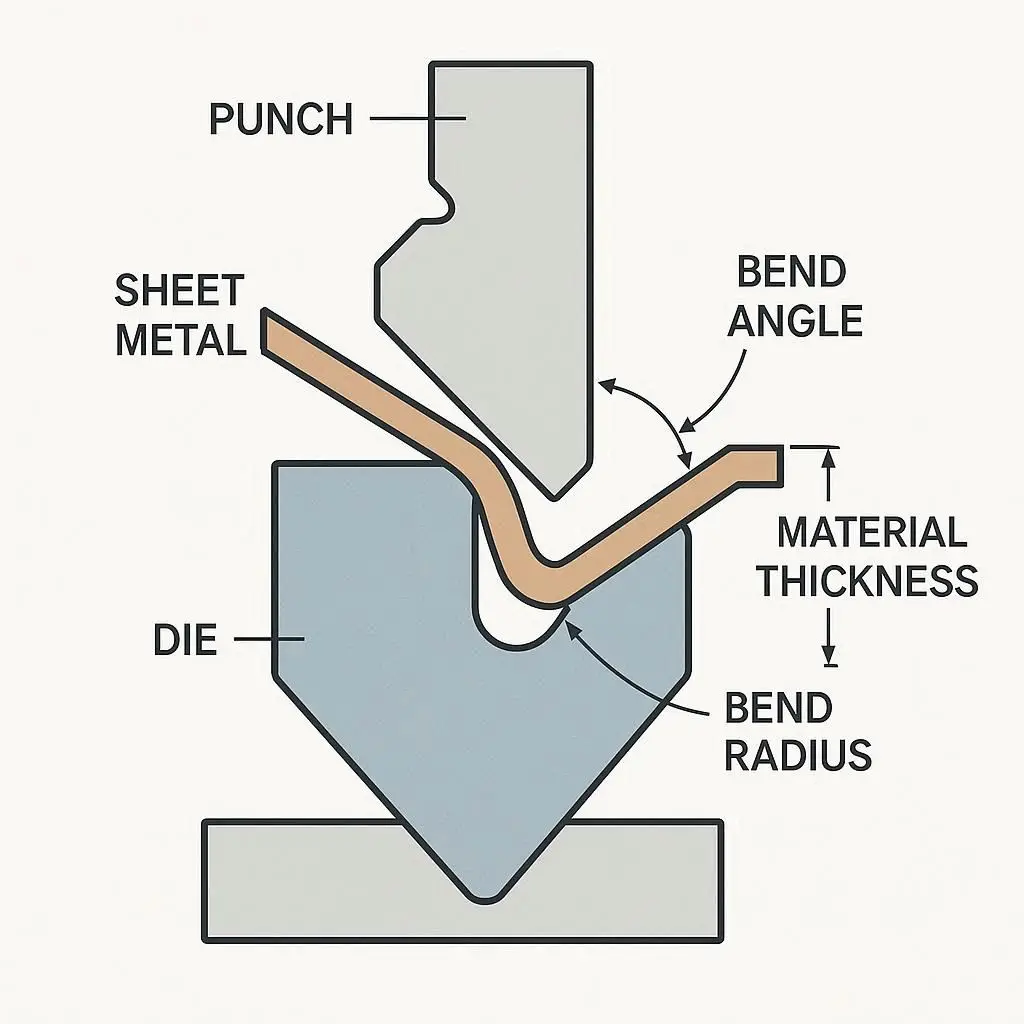

Press brake forming starts with a few core realities: the material thickness, V-die opening, tooling radius, and the machine’s available tonnage govern whether a part is feasible and repeatable. When a purchasing engineer hands me a CAD with multiple 90° bends and 0.5 mm tolerances, I don’t panic — I ask three quick questions, and then we talk tooling. Those three are: material grade (stainless? mild steel? Al), thickness, and bend length — because tonnage scales with all of them. For air bending, a commonly used approach to estimate force begins with thickness squared times length divided by the V opening — the Fabricator has a good primer on practical tonnage calculations and stepwise checks you can run. thefabricator.com

press brake forming tooling and springback: the devil is in the die

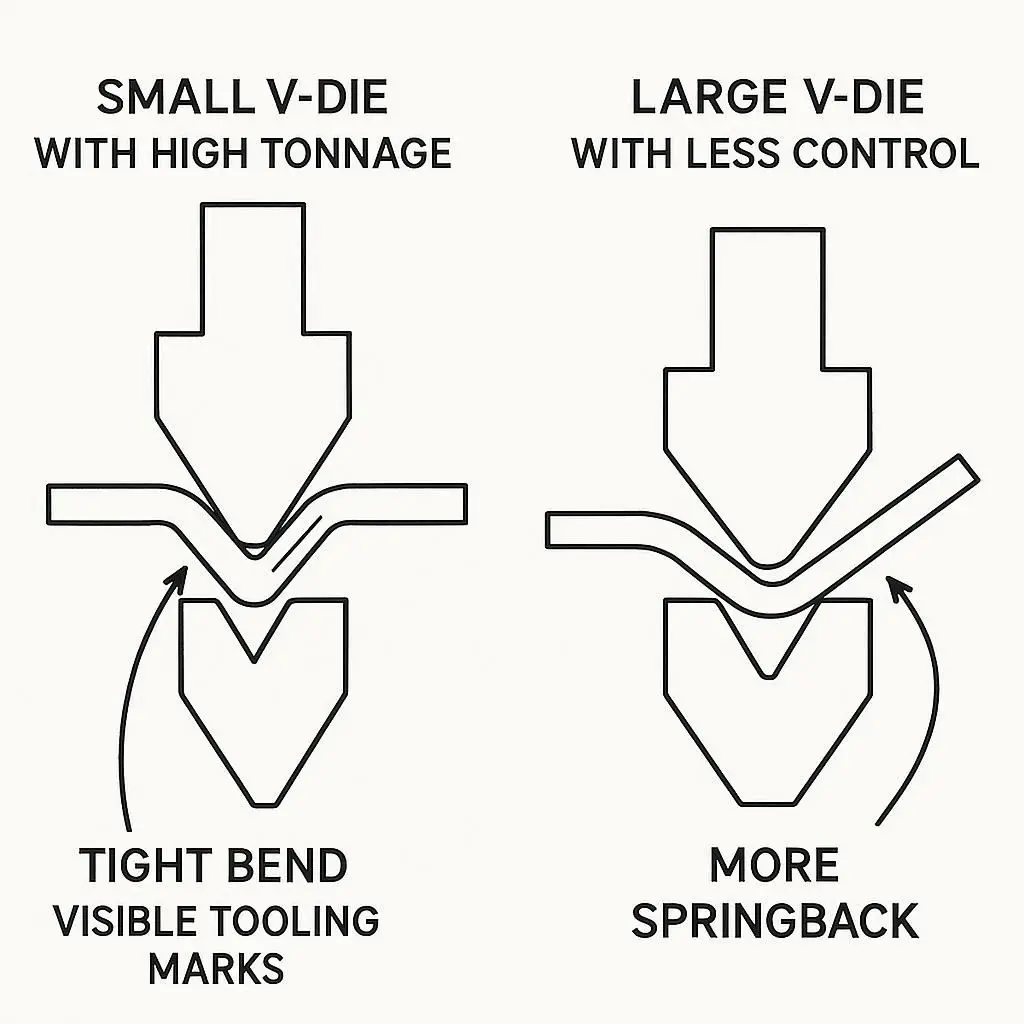

Tooling choice — punch radius, V size, die clearance — determines springback and the achievable inside radius. The tighter the V (small V opening), the more tonnage you need and the more risk of visible tooling marks. On the other hand — and this is practical experience speaking — choosing a V that’s too large reduces control and ups the chance of inconsistent bend deduction across long parts. So, there’s a middle ground. Use K-factor and bend allowance tables as a starting point; but frankly, you’ll often tweak with sample bends (we do this at Baoxuanmetal) because the theoretical K-factor rarely survives the first millimeter in the press brake.

press brake forming tolerance & accuracy: numbers you can quote to clients (tone: objective with a practical caveat)

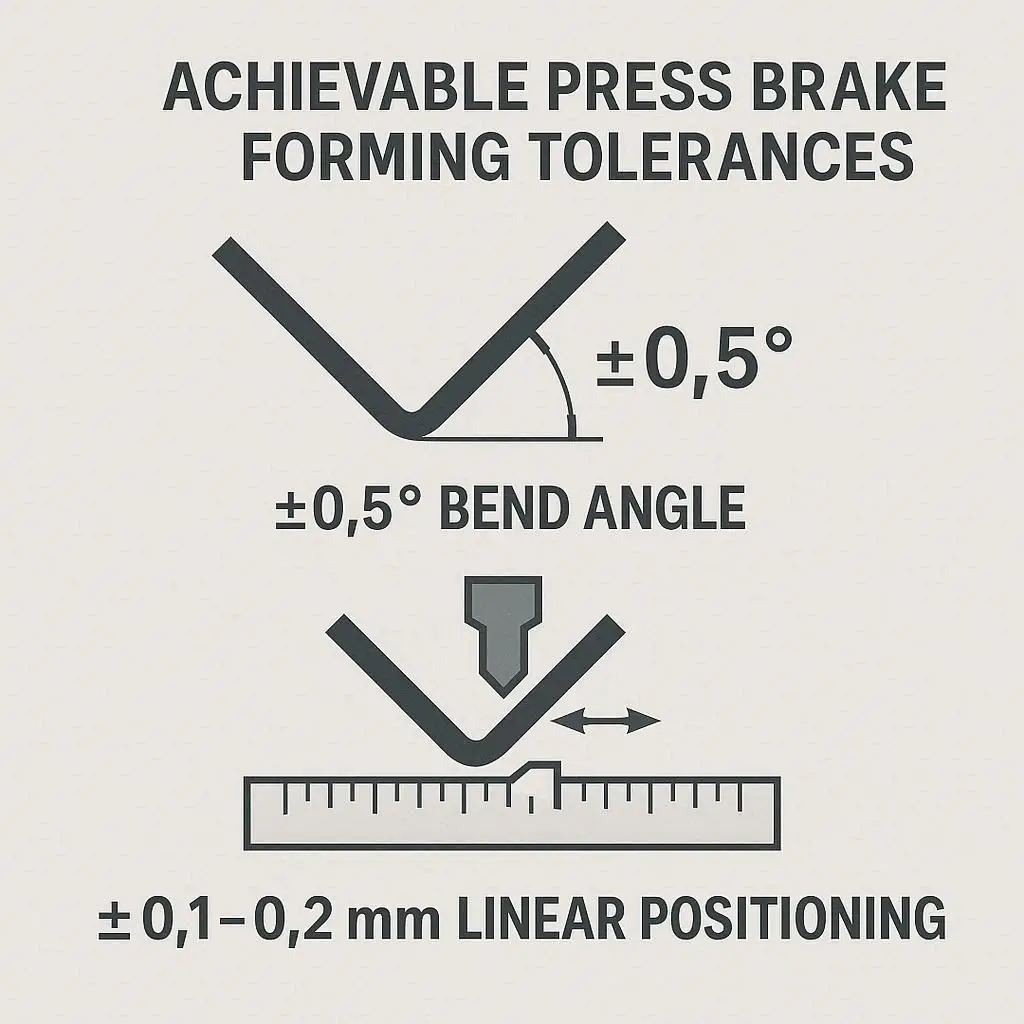

In a well-maintained CNC press brake with proper tooling and setup, typical achievable tolerances for high-precision jobs are around ±0.5° for bend angle and roughly ±0.1–0.2 mm for linear positioning — that’s what recent shop surveys and manufacturer guidance suggest for precision setups. Of course, “typical” depends on material, thickness and length, and on whether you’re air bending, bottoming, or coining. accurl.comPress Brake Guide

So yes, you can quote numbers to clients, but add context: “±0.1 mm when using a 1.0 mm thick stainless, 100 mm bend length, CNC compensated, prepped tooling.” Otherwise you’ll be the guy (or gal) who promised magic.

press brake forming tonnage planning: how we avoid underpowered surprises

Tonnage is one of those topics that generates the most late-night phone calls — because an underestimated tonnage means either a bad bend or a broken machine (and angry managers). Use a calculator, sure, but understand the variables: tensile strength of the alloy, flange length, V-opening, and the total bend length. For air bending, a practical formula and calculator logic are described by multiple sources and tool vendors; I recommend always leaving a ~20% margin (machine capacity > calculated requirement) for safety — especially with variable coil batches. shenchong.comBud’s Equipment Sales

Remember: thicker material + smaller V = exponentially more tonnage required. So if your CAD calls for lots of 3 mm steel with 6 mm inside radius and small V, reconsider — or budget for a heavier press.

press brake forming process choices: air bending vs bottoming vs coining

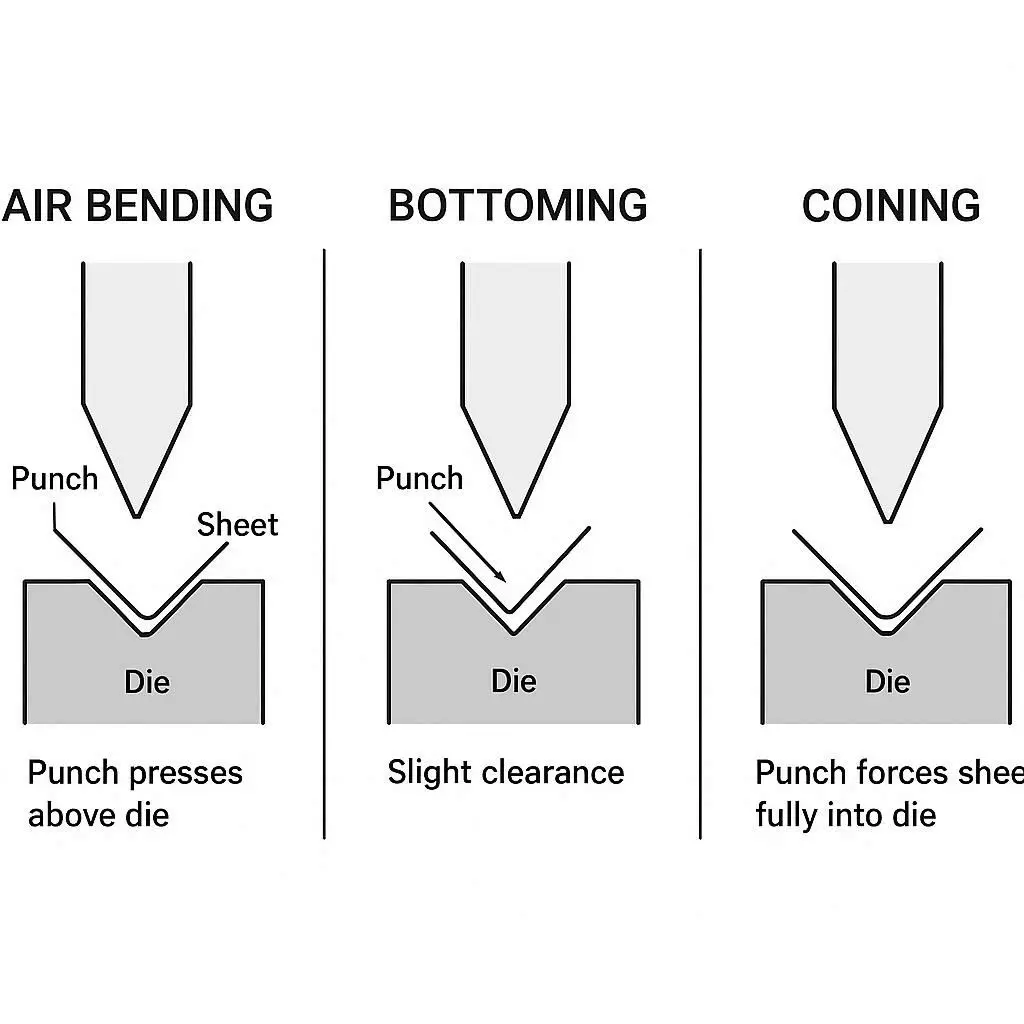

When we quote processes, we usually give three paths: air bending (fast, flexible, lower tonnage), bottoming (better repeatability, more tonnage), or coining (tightest angles, highest tonnage, more tooling wear). Which to pick? It depends on tolerances, surface requirements, lot size, and life-cycle cost.

I’ll be frank: for prototypes and small runs we love air bending — it’s forgiving and fast to retool. For mid-volume parts where tolerance is critical, bottoming gives us better repeatability — provided the tooling is right. If a customer wants ±0.05 mm across dozens of parts, coining is the only realistic choice, but then expect heavier tooling costs.

press brake forming — CNC, automation and the latest trends

Let’s talk trends — because the shop’s changing fast. Industry 4.0 adoption, digital nests, and closed-loop bending systems are pushing more shops to pair CNC press brakes with offline programming and bending simulation. This isn’t hype: automation and digital tool libraries reduce setup and scrap, and many market reports have highlighted increased automation uptake in sheet metal fabrication. If you’re buying parts in 2025, ask whether your supplier uses offline programming and tool databases; it matters for lead time and quality. 雅虎财经MarkWide Research

At Baoxuan Precision Manufacturing we’ve been adding CNC back-gauge camera compensation and laser crowning (yes, that helps) — and the difference is visible on parts over 1 m long.

press brake forming cost drivers: pricing logic for procurement teams

You asked me once — “why did the quote change?” — and it’s a fair question. Pricing depends on setup complexity, cycle time, tooling amortization, material handling, and inspection. A simple bracket with two bends might be cheap; a 10-bend welded assembly that needs a controlled inside radius across multiple steps will cost more. Also — and this surprises some buyers — flange length, stacking, and batching strategy affect per-piece time. So when you compare quotes, check assumptions: press brake forming method (air/bottoming/coin), tooling inventory, and whether the supplier includes test bends.

press brake forming quality control: how we inspect and reduce scrap

We keep a short checklist before cutting steel: confirm material certs, verify thickness with calipers, pre-punch or relieve holes when necessary (hole distortion is real), and run sample bends with full dimension capture. For angle control, we use angle probes and measure two or more points across the flange (dead simple — but many forget). For long runs, we add in-process checks every X parts (depends on tolerance). A short anecdote: last year a customer supplied mixed batches of 304L and 304; visually similar, but different springback meant rework on the 2nd batch. Costly lesson — always confirm material lot.

press brake forming solution comparison: pick the right approach for your part

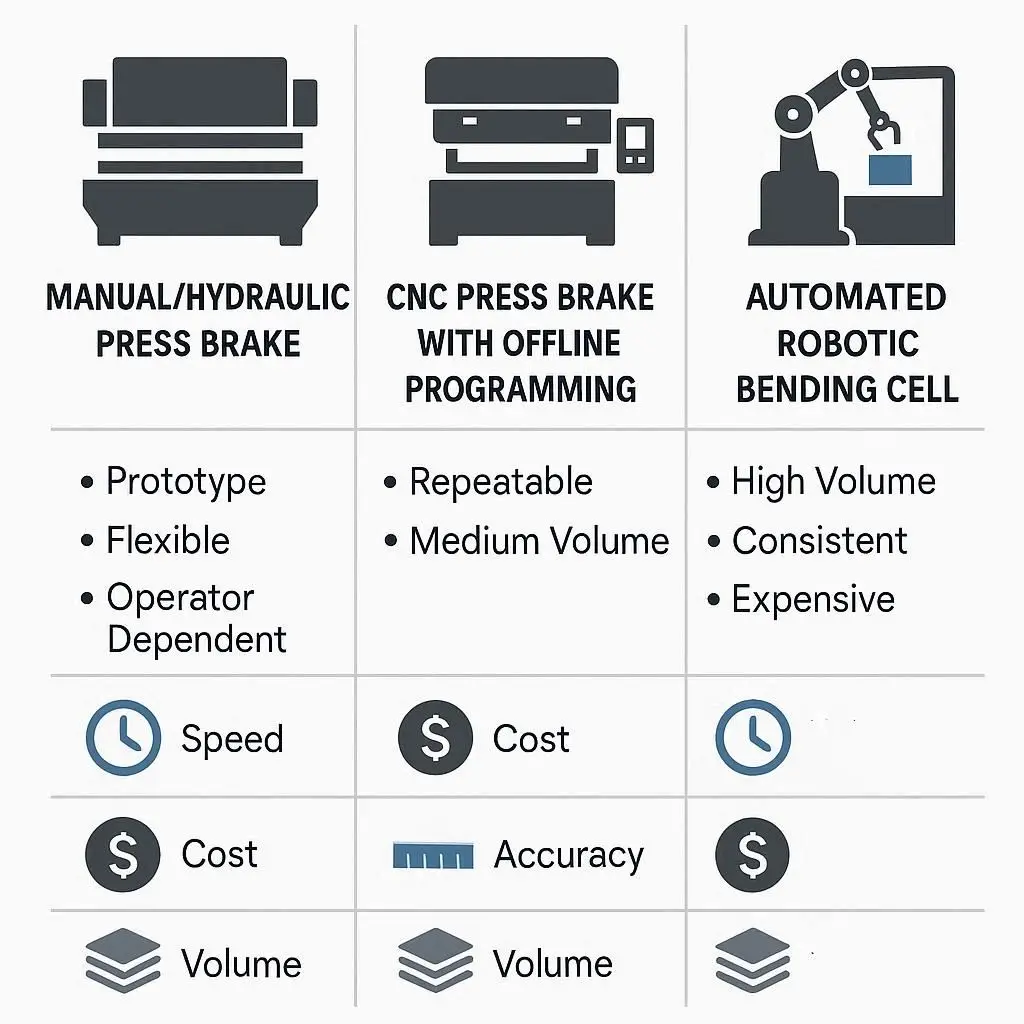

Below is a compact table I often show to procurement and engineering teams — it helps stop the “one-size-fits-all” quotes. The three options presented are the pragmatic ones we choose between most often at Baoxuanmetal.

This table is a cheat sheet — but it correlates directly with press brake forming choices we make every day.

press brake forming case study 1 — an honest shop floor story

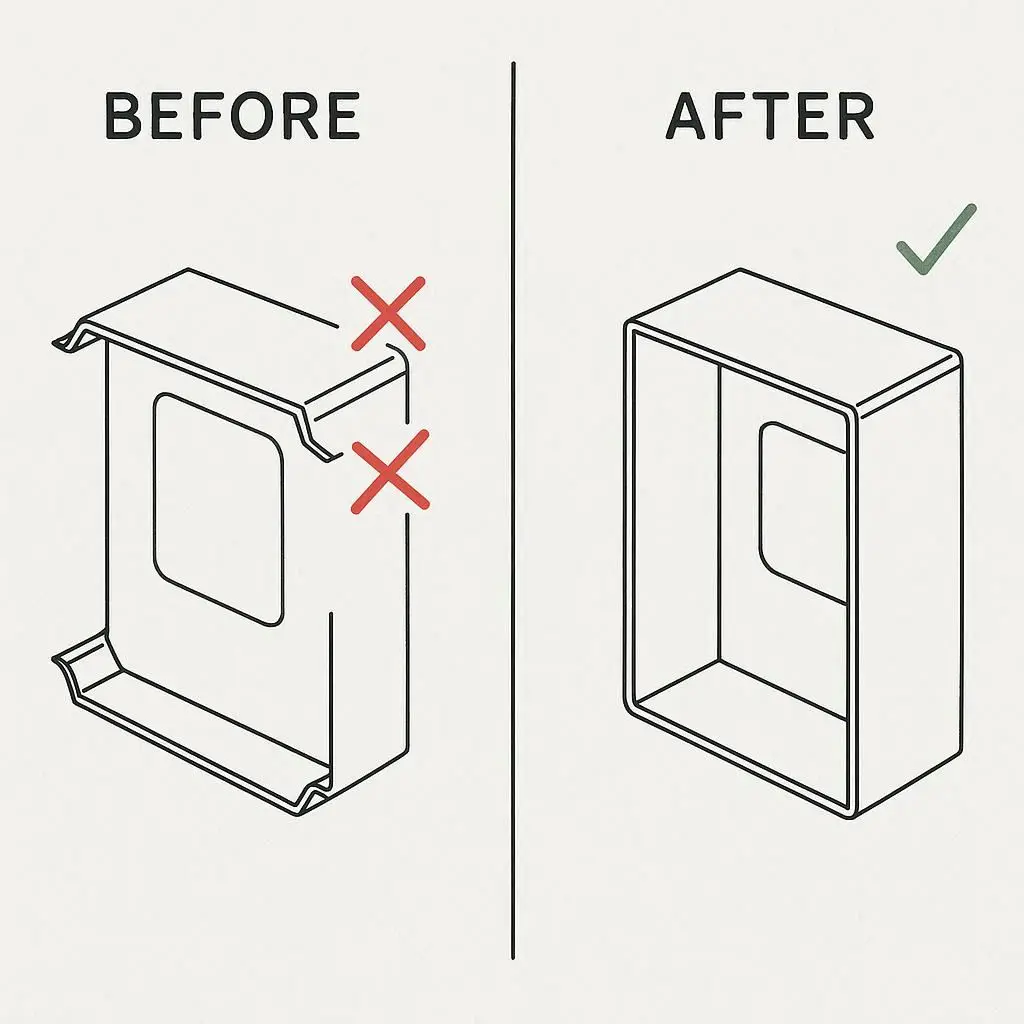

Case: we had a telecom enclosure — 1.2 mm stainless, long flanges, close tolerance for mating. Design called for many 90° bends and a small inside radius. We tried air bending first; angle drift and springback killed the first run. Then we switched to bottoming with a tuned backup crowning and compensated CNC angle tables — the second batch was within ±0.15 mm and the client signed off. Lesson: testing and a willingness to switch process saved the order (and our reputation).

press brake forming case study 2 — procurement vs. production realignment

Another time, procurement picked the cheapest quote without clarifying tooling ownership. The supplier used oversized V blocks that looked fine — but for our final assembly the fit was poor due to inconsistent bend deduction. We reworked tooling, standardized on a die set, and provided the client with a simple drawing regime to avoid it next time. Small investment in tooling standards avoided repeated rework. I won’t lie — that one cost us a weekend, but it was educational.

press brake forming — measurement, standards and referenced data

For readers who want numbers: recent guidance indicates precision setups achieve around ±0.5° angle and ±0.1–0.2 mm linear positioning when well-maintained and compensated. For market context, the global sheet metal fabrication services market size was reported at about USD 21,340 million in 2024, reflecting investment in automation and precision manufacturing — this trend supports more shops adopting CNC and digital tooling. For tonnage calculations and deeper dive formulas, The Fabricator and machine-tool vendors provide validated approaches and calculators we use on the floor. accurl.comCredence Research Inc.thefabricator.com

So yes, numbers matter — and we use them.

press brake forming troubleshooting checklist

When a bend goes wrong, run this checklist (my shorthand):

• Material verification (certs, thickness).
• Tooling check (punch radius, V size, die wear).
• Ram speed and dwell (too fast = bounce).
• Back-gauge position and repeatability.
• Operator technique (one more time — training matters).
• CNC compensation tables (angle, crowning) and recent tool offsets.
  Follow these and you’ll avoid 70% of the late calls — well, in our experience.

press brake forming final recommendations for spec & RFQ

If you’re writing an RFQ, here’s a template I hand to clients (and you can steal it): specify material grade and mill cert, list thickness tolerances, indicate desired inside radius (or surface finish if critical), state batch size and expected annual volume, and ask whether the supplier uses offline programming and tool libraries. If you add “first article inspection sample required” you’ll save headaches later. At Baoxuan Precision Manufacturing we appreciate clear RFQs — and yes, it shortens lead times. press brake forming.

press brake forming FAQ (tone: conversational, helpful)

Q1: What is the typical lead time for a 100-piece press brake forming run including tooling?
Answer: For a standard 1–2 bend part with existing tooling, 3–5 business days is typical (depending on shop load). For new die design or complex multi-bend parts expect 7–14 days including test bends and QA. If you require PPAP or certified inspection reports add time for documentation — and if you want offline programming that can reduce in-machine setup later. press brake forming.

Q2: How do we specify tolerances for long flange parts (over 600 mm) to avoid surprises?
Answer: Specify both angle tolerance (e.g., ±0.5°) and linear positional tolerance (e.g., ±0.2 mm over 250 mm). Also indicate whether cumulative variation across multiple bends is acceptable or not. Recommend including flatness and warpage limits. For parts over 1 m, ask for crowning or laser compensation — it matters. press brake forming.

Q3: Can you bend 2 mm stainless with a 3 mm inside radius?
Short: possibly — but expect higher tonnage, tooling mark risk, and you may need bottoming or coining. Specify finish requirements. press brake forming.

Q4: Is CNC always better than hydraulic manual?
Short: not always. CNC gives repeatability and speed for medium-to-large runs; manual hydraulics are fine for low volume prototypes. Match the process to volume and tolerance. press brake forming.

Q5: Do you provide tooling ownership options?
Short: Yes — we can include tooling amortization in quotes, or supply tooling and bill separately; both have pros and cons depending on expected volumes. press brake forming.

press brake forming — closing thoughts and a small nudge

I’ve written a lot of “notes from the floor” here — and yes, there are bits that sound like grumbling (shops have personalities). But the point is simple: press brake forming rewards careful upfront thinking — and punishes vague RFQs. If you’re an engineer or buyer, give us clear material specs, realistic tolerances, and a heads-up on expected volumes — and we’ll return parts that fit and finish well.

If you want a quick checklist PDF or a sample RFQ template (we keep one at Baoxuanmetal for clients), tell me what format you want and I’ll draft one. Meanwhile, share this with a colleague, or drop a question below — I’ll answer from shop experience, not the theory book. press brake forming.

If you want, I can now:

• produce a one-page RFQ template tailored to your part; or
• generate a simple checklist PDF for incoming orders; or
• walk through a real CAD drawing and point out likely bending trouble spots (you upload the drawing).

Go on — ask. I’m on the factory side of this, so I’ll keep it real.
