Sheet Metal Cover vs Alternatives: Which Sheet Metal Prototyping Services Win?

I’ll start straight. You know how many times I’ve been asked by some procurement folks: “Hey, is a sheet metal cover the best choice, or should we just go CNC or plastic injection?” Too many times. And sometimes I just want to say, “Depends, mate—depends on your budget, timeline, and whether you’re going to kick the cover after you install it.” But since the factory started this blog, I’ll write it down properly. I’ve been bending, welding, grinding, powder spraying in Baoxuan Sheet Metal Processing Factory for more than ten years, and I’ve seen projects go smooth like butter, and others turn into headaches that keep me awake at night.

So let’s talk clear and dirty: sheet metal covers vs. the alternatives.

Sheet Metal Cover Basics: Why They’re Everywhere

A sheet metal cover is basically what it sounds like—protective skin, enclosure, housing, call it what you like. It’s stamped, bent, sometimes laser-cut, welded, coated. You see them on machine tools, electrical cabinets, medical carts, elevators. Why is it so common? Because sheet metal is flexible in design and decent in strength-to-weight ratio.

If your CAD drawing says “change dimension 5mm here, add hole there,” we can adjust in one night with laser cutting. CNC machining? Forget it—you’ll be reprogramming and buying another expensive aluminum billet. Injection molding? You’ll be crying because of the tooling cost.

One time a customer brought us a battery equipment cover. They tried CNC before, the piece was strong, sure, but price was three times our sheet metal prototype. And they had to wait two weeks. With our bending machine, we delivered in four days. That guy still sends us beer every Spring Festival.

So yes, sheet metal cover is the go-to for prototyping. But don’t get me wrong—it’s not always the winner.

CNC Machining Alternatives: Not Bad, Just Different

Now, CNC machining has its own charm. You want tight tolerance, something like ±0.01mm on a precision part? CNC wins hands down. But for a simple box cover, is it overkill? Yeah.

Material waste is another point. With sheet metal, you cut flat, bend, assemble. Most of the plate becomes product. With CNC, you mill half the block into chips. I remember sweeping bags of aluminum scrap off the floor—it almost felt sinful.

Also, size matters. A large enclosure (say 1000mm × 600mm × 400mm) made by CNC is either impossible or insanely expensive. Sheet metal cover? We just join a few bent pieces with spot weld and grinding, smooth enough after powder coating.

So the rule of thumb: if the part is structural, high precision, or very small—CNC can be better. But for prototyping covers? Sheet metal cover beats CNC in practicality.

Injection Molding vs Sheet Metal Cover: The Tooling Trap

This one always makes me chuckle. Young engineers sometimes say, “Why not make plastic injection cover, it’s lighter and looks sleek.” Sure. But do you know what the mold costs?

For one-off prototype, injection molding is a trap. Tooling can cost $5,000–$20,000 easily [source: Plastics Technology, 2023]. And if you revise the design… congratulations, you’ve got an expensive paperweight mold.

I still remember a medical device company, they came to Baoxuan Precision Manufacturing asking for sheet metal prototype first. They wanted 20 sets for pilot testing. We laser cut stainless steel, bent, welded, brushed finish. Done in 10 days. After half a year, when design was finalized, then they moved to injection molding. Right path.

Sheet metal cover is simply faster to validate. That’s why in prototyping stage, it usually wins.

Powder Coating, Anodizing, Surface Tricks

Let’s talk finish. Sheet metal covers don’t just look raw gray steel. We powder coat, we anodize, we brush, even silk-screen logos.

Powder coating especially—it hides weld seams, protects against corrosion, and customers love the smooth color. According to a study by Coating World (2022), powder coating increases sheet metal product lifespan by 30–50% in outdoor environments. And it’s cheaper than painting in many cases.

Aluminum sheet with anodizing can compete with CNC-milled anodized parts, but with more cost efficiency. The only weak point—corners and edges sometimes chip if coating too thin. That’s why I always nag our painters: “Don’t rush, coat evenly.” They roll eyes at me, but they know I’m right.

So finish-wise, sheet metal cover has enough tricks to fight alternatives.

Case Example: Telecom Cabinet Cover

Quick story: A telecom company gave us a cabinet cover project. They first tried plastic prototype. Problem—heat. The plastic softened when the cabinet ran at 60°C. They came to us, we made sheet metal cover with ventilation slots and powder coat. Heat dissipation problem solved.

This is what I always tell buyers: think about application scenario. If your cover needs grounding, fire resistance, or high heat, sheet metal beats plastic every time. CNC can do aluminum housing, yes, but again—cost and size.

So telecom cover? Sheet metal cover wins again.

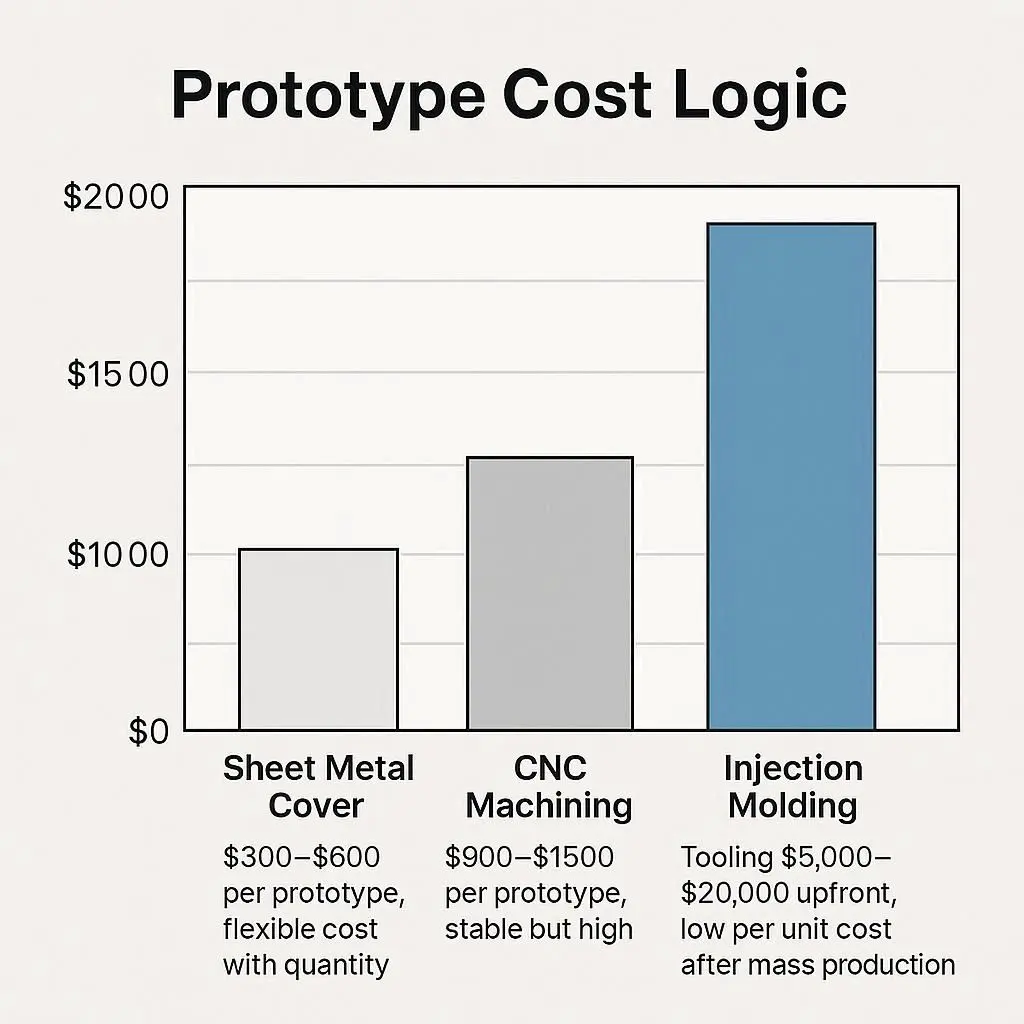

Cost and Pricing Logic in Prototyping

This is the part procurement always struggles with. Why does one quote say $300, another $1500?

• Material type: stainless steel (SS304) costs more than cold rolled steel. Aluminum sheet costs even more, especially 5052 grade.

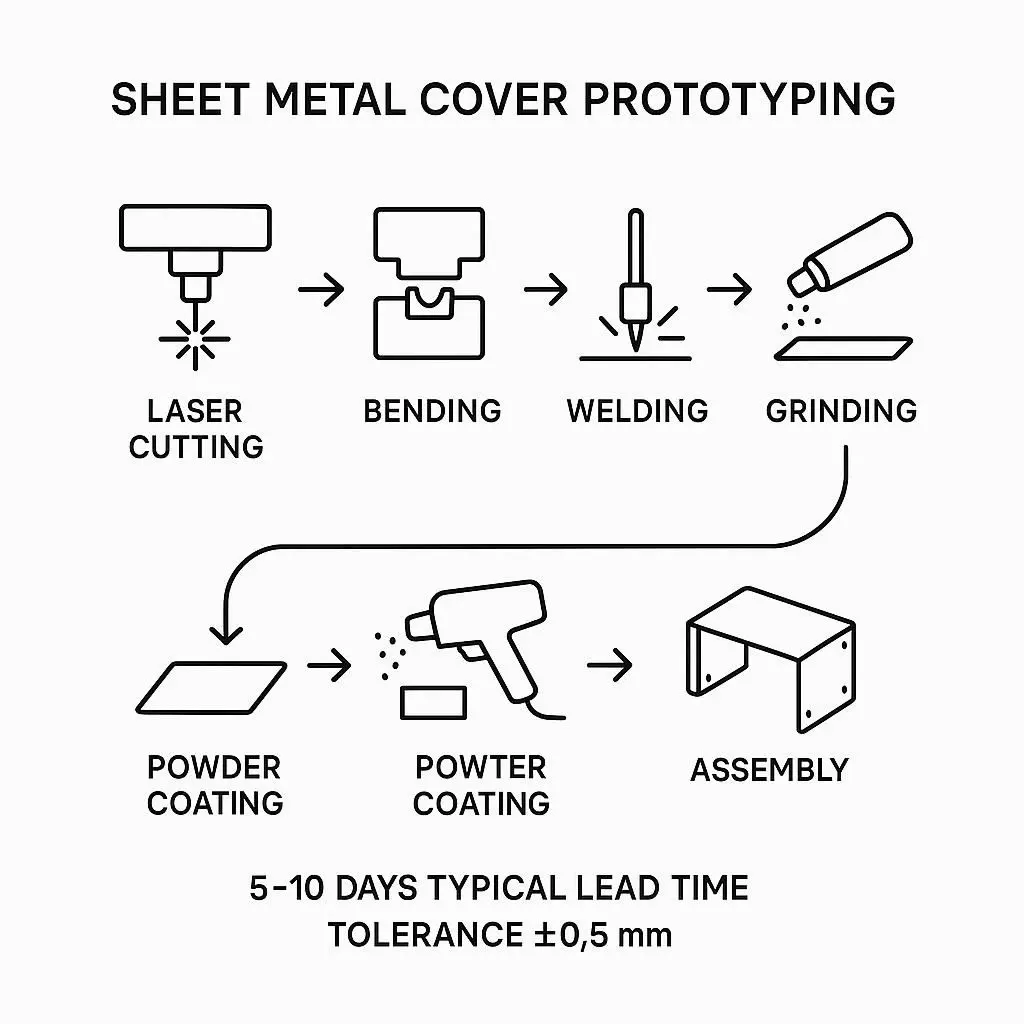

• Processing steps: if your cover needs laser cutting + bending + welding + grinding + powder coating + Sheet Metal Assembly, every step adds cost.
• Tolerance: ±0.5mm is standard for sheet metal cover. If you insist on ±0.1mm, we’ll need CNC machining inserts or special jig. That costs.
• Quantity: one-off prototype has highest unit cost. Ten pieces bring it down 30–50%.

CNC and injection have their own cost curve. CNC = expensive single parts. Injection = cheap per piece, insane mold cost upfront. Sheet metal prototyping sits in the middle—flexible, balanced.

In short, understand the logic, don’t just compare numbers blindly.

Comparison Table: Sheet Metal vs Alternatives

When you look at this, you can see why sheet metal cover is still the favorite for prototyping.

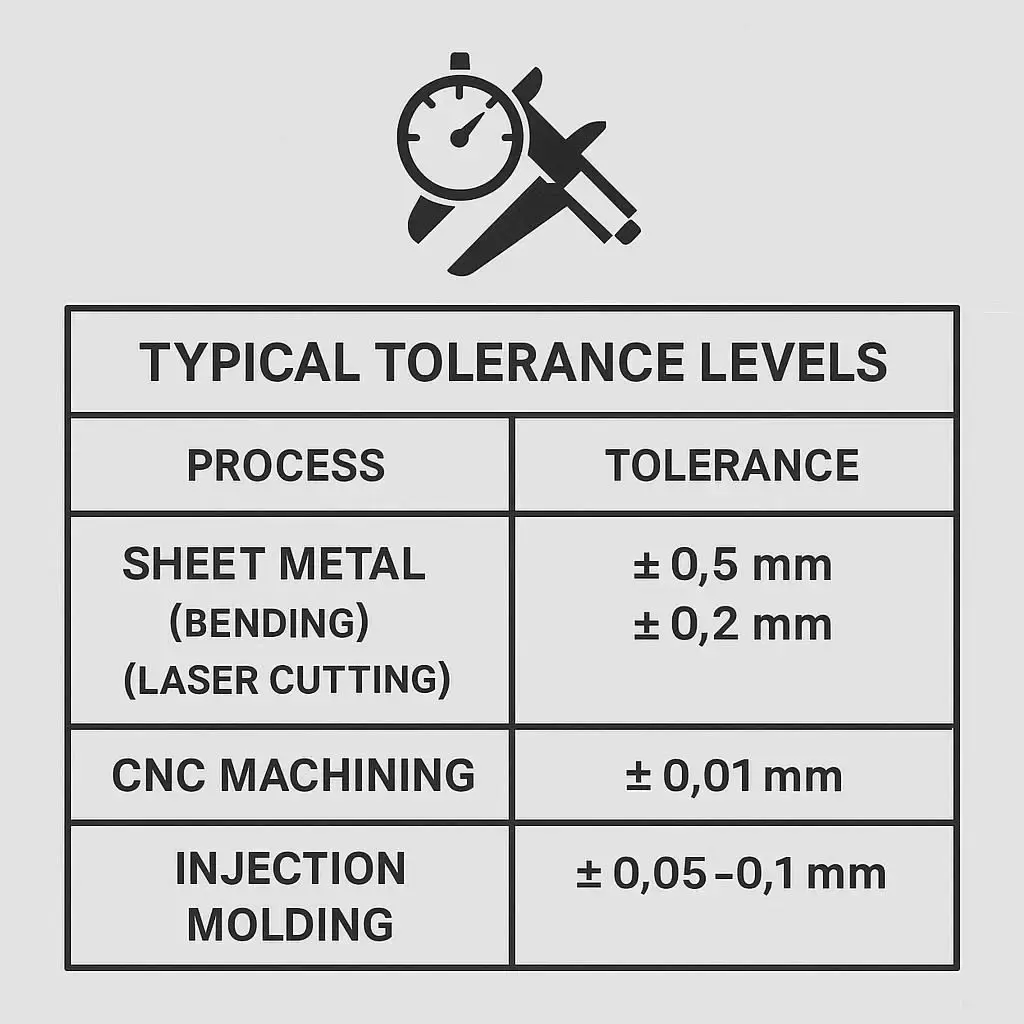

Tolerances and Quality Control: Don’t Forget the Basics

One thing I complain about often—procurement sends us drawings with impossible tolerances for sheet metal covers. ±0.05mm on a bent part? Come on, even Baoxuanmetal’s best press brake won’t promise that.

What we usually guarantee: ±0.2mm for laser cutting, ±0.5mm for bending. Welding may add distortion, so after powder coat, final fit must be checked with assembly. That’s why we always test-assemble prototypes before delivery.

We use vernier calipers, height gauges, welding jig fixtures. And for critical jobs, CMM measurement. All this ensures the sheet metal cover meets functional requirement, not fantasy dimension.

When Sheet Metal Cover Loses

Let me be fair. Sheet metal cover is not king everywhere.

• If you need thousands of identical housings with sleek curves, injection molding wins.
• If you need micron-level precision, CNC wins.
• If you need complex 3D lattice design, 3D printing wins.

I’m not shy to admit: we lost jobs because customer insisted on fully curved design like Apple laptop case. Sheet metal can’t bend like that without deep drawing mold. But if you know its strength—flat, angular, modular designs—it wins most practical battles.

So choosing sheet metal cover is about knowing its sweet spot.

Industry Standards and Certification

Some buyers ask: “How do I trust your quality?” Fair point.

At Baoxuan Sheet Metal Processing Factory, we follow ISO 9001 quality system. For surface treatment, we use powder coating that meets RoHS standards. Stainless steel grades are certified by mill test reports.

Industry standard tolerances: DIN 6930 for sheet metal work, ANSI Y14.5 for GD&T. These sound boring, but they prevent big misunderstandings.

So when we say sheet metal cover is good for prototyping, it’s not just talk—it’s backed by standard practices.

FAQ

Q1: How fast can a sheet metal cover prototype be made?
Usually 5–10 working days, depending on complexity. Faster than CNC for large parts.

Q2: What materials are common?
Cold rolled steel, stainless steel (SS304, SS316), aluminum (5052, 6061). Choice depends on weight, corrosion, cost.

Q3: Can sheet metal cover achieve airtight sealing?
Yes, with proper welding and gasket design. Not as perfect as plastic injection, but good enough for IP54–IP65 enclosures.

Q4: How many design revisions can I make?
As many as you want—laser cutting and bending allow quick adjustments without tooling cost.

Q5: Is powder coating durable?
Yes, typically 5–10 years outdoor. Data shows powder-coated steel lasts 1.5x longer than painted steel in corrosion testing (Coating World, 2022).

Wrapping Up

So—sheet metal cover or alternatives? If you’re at prototyping stage, need medium size enclosure, want flexibility and cost balance—go sheet metal. CNC and injection both have their places, but for most real engineers like us, sheet metal is the workhorse.

I’ve sweated over bent edges, cursed at weld spatter, and stayed late to redo powder coating because dust got stuck. Not glamorous, but real. And it’s why after a decade at Baoxuan Sheet Metal Processing Factory, I still tell younger engineers: “Don’t overlook sheet metal cover—it’s often the smartest move.”

If you’ve got your own experience—bad or good—drop a comment, share it, or just reach out. Always happy to argue over tea.
