I’m a senior engineer at Baoxuan Sheet Metal Processing Factory — been under the press brake and beside the laser for more than a decade. I’ve bent parts at 2 a.m., cursed springback at 5 a.m., and fixed vendor drawings over morning tea. This post is exactly the kind of thing I’d say to a young buyer or an engineer who’s never smelled cutting oil: practical, direct, sometimes annoyed, occasionally proud. I’ll lay out the real pitfalls and lessons about sheet metal tolerances, how they show up in bending, punching, and finishing, and why tight tolerances often cost more than people expect. Sheet metal tolerances.
Sheet metal tolerances: why the shop floor and the drawing don’t always agree
Sheet metal tolerances look innocent on a CAD print — a few ±0.1 mm here, a positional callout there — but the shop sees things differently. Material variability (thickness gauge differences), tool wear, punch clearance, laser kerf, and operator technique all move the needle. I remember a job for control cabinets where the engineer called out 0.05 mm hole-to-hole. Cute. The turret was chewing tools like candy and the parts came back with burr and slight ovality. Translation: design intent ≠ shop reality. Use tolerance stack-up thinking early, because tight stack-ups mean tight control, and that costs money. Sheet metal tolerances.
Sheet metal tolerances: cutting and punching — pick your winning trade-off
Laser cutting versus CNC punching is a debate we fight over coffee. Laser gives sharp edges and better positional accuracy for complex curves; punching is faster for repeatable holes and simple shapes. But—here’s the kicker—laser kerf eats material and affects hole size; punching uses die clearance and leads to burr and possible distortion. For thin aluminum, laser might hold ±0.1 mm easily; for thicker stainless, punching with hardened tooling might be ±0.2–0.3 mm. Protolabs’ practical tolerance table is a good quick reference for shop-friendly tolerances (edge-to-edge and hole-to-hole tolerances around 0.13 mm for many features). Protolabs
If you want true positional control for hardware, you pay for it: smaller hole-to-hole tolerance needs better tooling, inspection, and sometimes secondary machining. Sheet metal tolerances.
Bend tolerances and springback — treat the metal like a personality

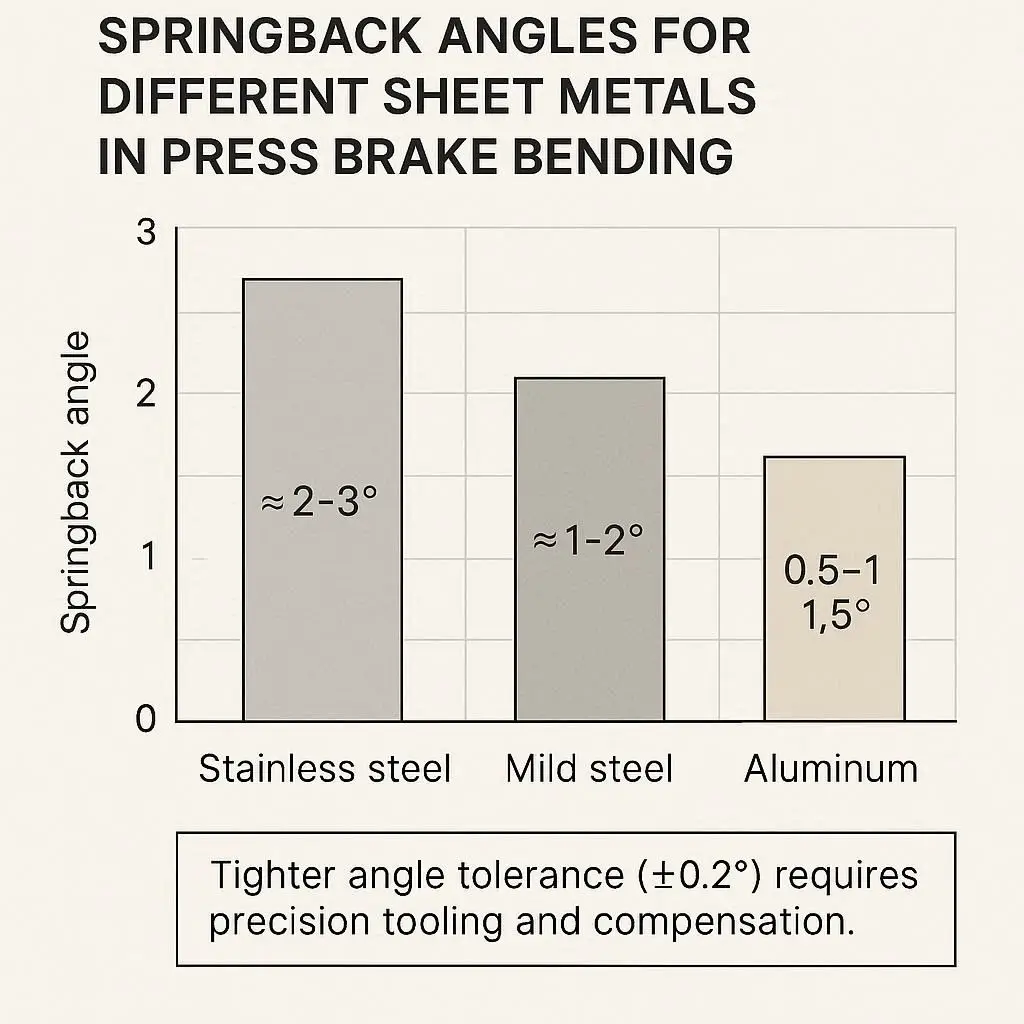

Bend tolerances are sneaky. Give the metal a little push and it springs back — stainless more than mild steel, aluminum behaves differently altogether. When you see a ±1° note on a drawing, that’s an industry-friendly guideline; if you need ±0.2° we’re entering precision brake-press territory with special tooling and controlled springback compensation (K-factor tuning, multiple test bends, maybe even post-bend machining). I’ve chased a 0.5 mm gap across assemblies because someone assumed bend angles would be “close enough.” No. We set up, measure, tweak, measure again.
You need to think in neutral axis moves, K-factor settings in your CAD, and consistent inside bend radius across the part to keep predictable bend allowance. In practice, we log K-factors per material lot — saved us a pile of rework last winter. Sheet metal tolerances.
Tolerance stack-up and assembly fit — the parts that don’t want to meet

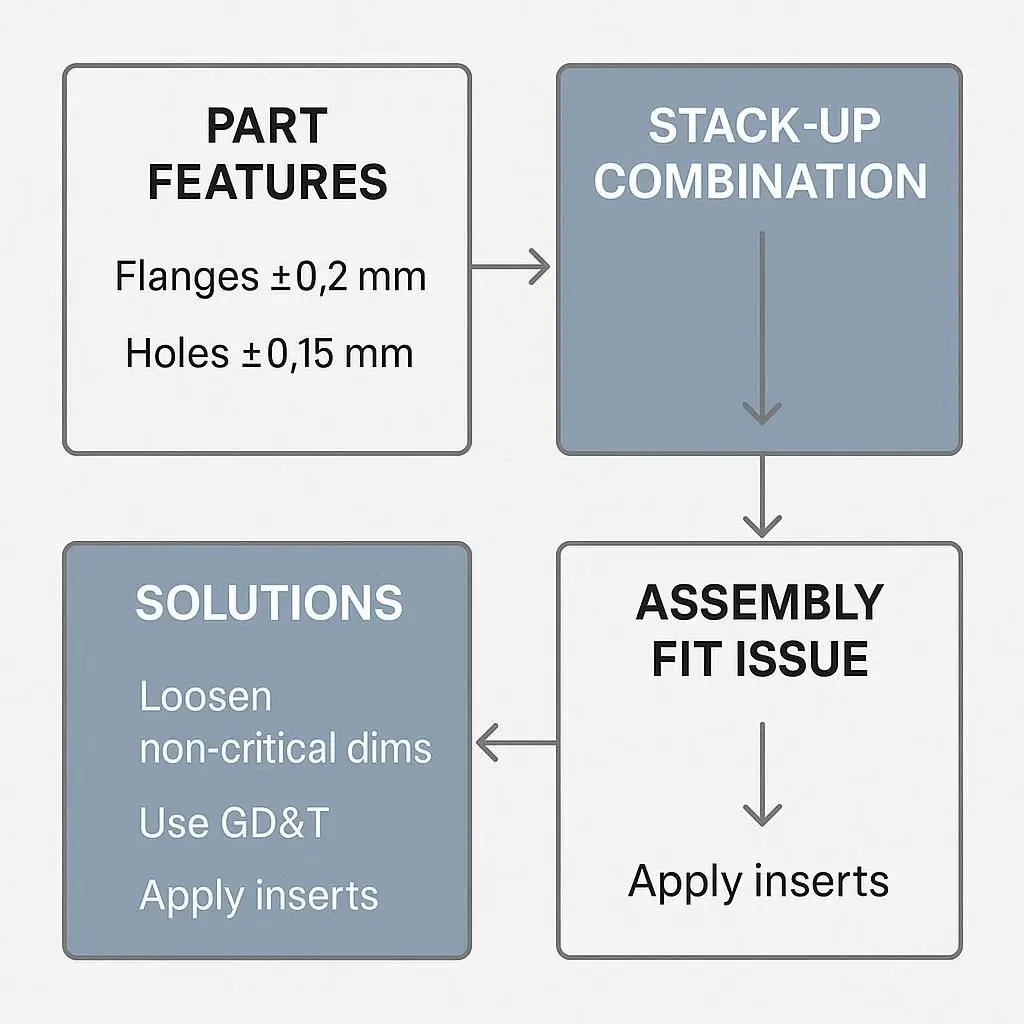

Tolerance stack-up is the “silent killer” of fits. One flange with ±0.2 mm, another with ±0.3 mm, a hole pattern with ±0.15 mm — suddenly your assembly won’t close, or you have to force things and bend tabs, which is ugly. You have to draw the stack-up early: pick datums, use GD&T for critical relationships, and decide where to spend tolerance budget. For example, make mating flanges more relaxed if the bracket holes are the critical feature.
In one job, we tightened every single feature to ±0.1 mm to “be safe.” Reality: cost skyrocketed, lead time doubled, and the assembly still required minor filing. Moral: tighten only what affects function — for the rest, allow reasonable sheet metal tolerances. Sheet metal tolerances.
Hole and positional tolerances — hardware hates imprecision
Hardware mounting holes are where tolerance matters most. A poorly positioned hole means a misaligned hinge, stripped threads, or a late-night fix. For sheet metal, the practical rule of thumb is to treat hardware holes with tighter controls than general cut geometry; sometimes that means reaming, tapping after bending, or using formed-in nuts rather than relying on thin-sheet threaded holes.
A couple of bosses insisted on tapping 1.5 mm sheet on-site — we tried it, and the thread longevity was awful. Client complaint, rework, extra shipping. We moved to PEM self-clinching nuts and toleranced the hole to the nut spec; assembly became reliable. If you’re specifying positional tolerance, think about datum selection and measurement method — plug gages, CMM, or optical inspection. Sheet metal tolerances.
Inspection and measurement — CMM, calipers and how I actually check parts
Inspection is where theory meets honest numbers. We use calipers and gauges for fast shop checks; when things matter, we hit a CMM and export a report. Don’t confuse “looks close” with “within the tolerance band.” A good FAI (First Article Inspection) with a proper inspection plan catches systemic errors early. Our routine: first-off caliper checks, sample check after nesting runs, and final CMM for assemblies and critical features.
Two things I see wrong a lot: (1) people specifying tolerances without saying how to measure them, and (2) expecting the same tolerance across different faces without datums. Put the inspection method on the drawing if it matters — say “measure hole true position to datum A using CMM.” That avoids awkward surprises and saves time. Sheet metal tolerances.
Manufacturing methods comparison — pick the tool for the tolerance you want
Sheet metal tolerances are tied to the process. Here’s a clear comparison so you (and your buying team) can balance cost and accuracy. The table below is from our hands-on shop experience and shows practical pros and cons — not marketing fluff.

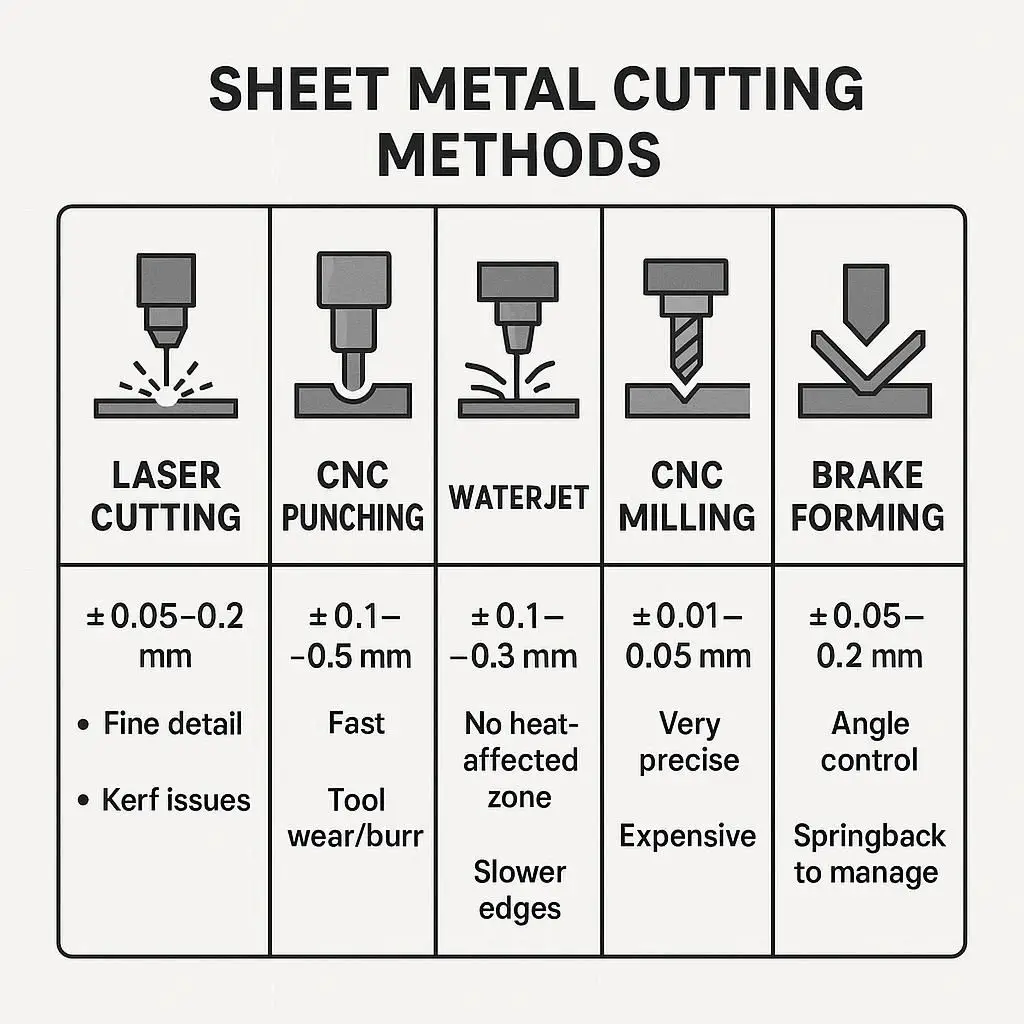

| Process | Typical achievable tolerance (shop) | Pros | Cons |
|---|---|---|---|
| Laser cutting | ±0.05–0.2 mm (thin to moderate) | Fine detail, low burr, flexible nesting | Kerf, reflectivity issues with certain metals, slower thick cuts |
| CNC punching/turret | ±0.1–0.5 mm | Fast for repetitive parts, low cost per hole | Tool wear, burr, limited curve resolution |
| Waterjet | ±0.1–0.3 mm | No heat-affected zone, cuts composites | Slower, rougher edge, tighter tolerances costly |
| CNC milling/secondary machining | ±0.01–0.05 mm | Tightest positional and hole tolerances | Expensive for thin sheet, requires fixturing |
| Brake forming with matched tooling | ±0.05–0.2 mm angle control with proper setup | Predictable bends, good repeatability | Tool costs, springback management |
This comparison helps pick a process that supports the sheet metal tolerances you actually need — not the ones you think you want. Sheet metal tolerances.
Sheet metal tolerances: quoting logic — why cheap sometimes means loose
Procurement folks, listen: price and tolerance are married. Tight tooling, extra inspection, slower runs, and secondary operations add cost. When you ask for “tight tolerances,” you’re asking someone to invest in tooling life, operator time, and sometimes secondary machining. We often quote three flavors: shop-standard tolerances (cheapest), tightened tolerances (moderate), and precision (most expensive). If you want ±0.05 mm on a 1 mm thin stainless bracket across 300 pcs, expect the price to reflect the process and inspection.
Also—quote cycles: the first run (with set-up and try-outs) is where you pay most of the learning cost. After that, repeatability improves and per-piece cost drops. Be pragmatic about adjustable tolerances — loosen non-critical dimensions to save money while protecting critical holes and datum relationships with stricter sheet metal tolerances. Sheet metal tolerances.
Sheet metal tolerances: case studies, client feedback and how we survived them
I promised real-world examples. Two quick cases from Baoxuan Precision Manufacturing that still make me grin (or groan).
Case 1 — The telecom rack flap: An OEM wanted a shallow bend and multiple aligned holes for cable glands. Drawing called for hole true position at ±0.05 mm. We pushed back: for a 1.2 mm stainless panel that tolerance would force secondary machining after bending. We proposed ±0.15 mm with formed-in captive nuts. Result: zero assembly rework, and the customer (anonymous, but a repeat client) said, “that saved our installers half a day per rack.” Client testimonial: “Baoxuan’s suggestion cut our install time and variance — we trust their shop advice.” Sheet metal tolerances.
Case 2 — The medical tray lid: Tight flatness and hole-to-edge requirements, stainless 0.8 mm. We did a full FAI, logged K-factors per heat lot, and used matched tooling for the brake. The first lot failed a flatness spec; we traced it to a bad coil batch (thickness variation) and swapped material. Data from our inspection reports showed standard deviation improvement from 0.22 mm to 0.07 mm after process fixes. Client quote: “Precision and documentation — that’s why we keep sending work to Baoxuan.” Sheet metal tolerances.
Sheet metal tolerances: standards, references and two data points you should care about
I won’t pretend to be blind to standards. Use GD&T (ASME Y14.5) for critical geometric control, and general tolerance tables (ISO 2768) for unspecified dimensions. If you’re unsure what “medium tolerance” means, read the ISO 2768 rules — they give tolerance bands (fine, medium, coarse) that many shops use as baseline expectations. skolarium.com
Two actionable data points I use when negotiating tolerances with designers:
- Standard shop tolerances for edge-to-edge and hole-to-hole are often around 0.13 mm (0.005 in) for many sheet-metal services — a practical baseline unless you specify otherwise. Protolabs
- ISO 2768 provides general tolerance bands (f, m, c, v) that are a good starting point for unspecific dimensions. skolarium.com
Use these standards to set realistic sheet metal tolerances that balance cost and function. Sheet metal tolerances.
Sheet metal tolerances: frequently asked questions
Q1 — What tolerance should I call for hole-to-hole on a 2 mm stainless panel?
A: If the holes are non-critical, 0.15–0.25 mm is reasonable. For mounting hardware that must align, push for 0.05–0.10 mm and expect extra cost.
Q2 — Can bending always be corrected later if it’s off?
A: You can tweak small issues, yes, but repeated correction weakens and looks messy. Better to dial in tooling and K-factor earlier.
Q3 — Should I use GD&T for sheet metal?
A: Use GD&T for parts where functional geometric relationships matter (hole pattern to flange, perpendicularity of tabs). For simple panels, standard tolerancing may be fine.
Q4 — Does thicker material mean tighter tolerances?
A: Not automatically. Thick plate can be machined tight, but forming and flatness issues change. Expect different tolerancing realities per thickness.
Q5 — How do I reduce cost without risking assembly problems?
A: Relax non-critical dimensions, protect critical datums, and consider inserts or formed features instead of tight hole tapers.
Alright — I’ve rambled, probably got a little off-topic (tea, remember?), but those are the lessons you won’t find in a CAD manual. If you’re ordering a job, send the drawing, highlight what truly matters, and ask us (Baoxuan Sheet Metal Processing Factory) for input before mass production. We’ll tell you straight: what needs precision, what can be relaxed, and what will cost you extra.
If you want, drop your drawing or a sketch in the comments, and I’ll point out likely trouble spots — or just share this with the buyer who keeps cutting tolerances to “be safe.” Ask, share, or complain — I read them all. Sheet metal tolerances.
— Senior Engineer, Baoxuan Sheet Metal Processing Factory
