I’ve been at Baoxuan Sheet Metal Processing Factory long enough that stainless steel dust feels like seasoning on my clothes. Bending metal — especially stainless — sounds straightforward if you’ve only read about it in CAD notes. But once you’re standing at the press brake, hand on the pedal, it’s another story. The springback, the tooling choice, the operator’s mood that day — all of it comes into play. This post isn’t marketing talk. Just me, sharing the ten bending methods we actually use, and the headaches they cause, so you can see how to bend metal with fewer surprises.

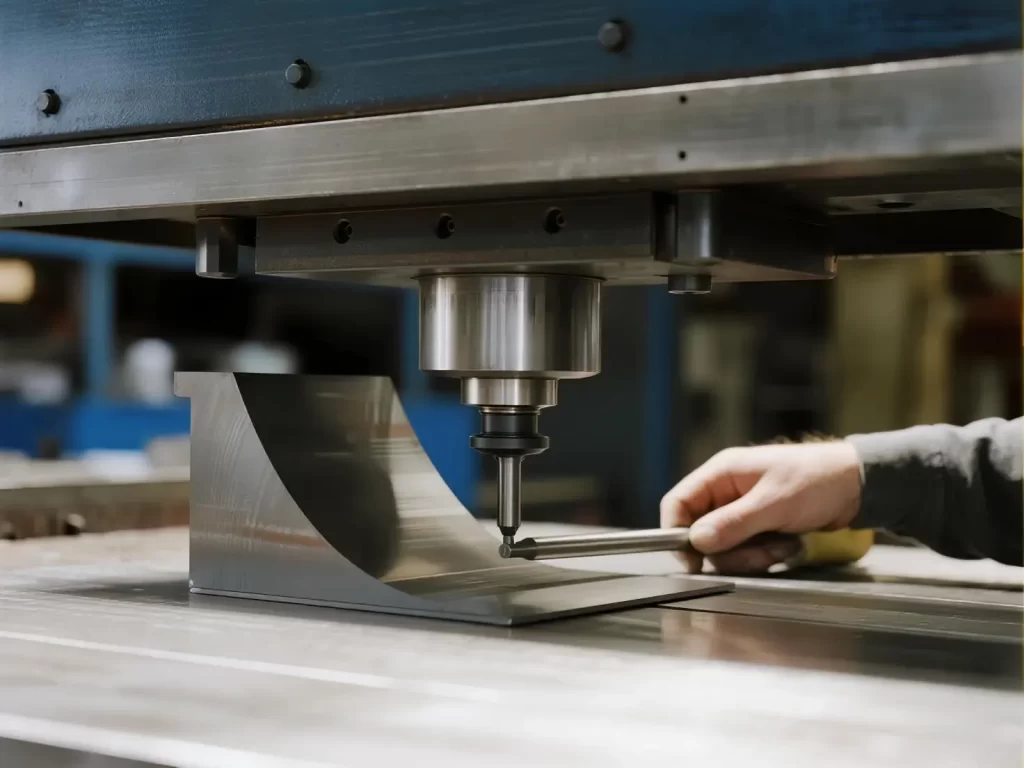

How to Bend Metal with Air Bending
Air bending is the most common trick. You press the sheet into a V-die but don’t bottom it out. Simple, flexible, cheap on tooling. The angle depends on how deep you push. The catch? Springback. Stainless steel, especially 304, loves to laugh at you and open up 2–3 degrees. If the drawing says ±0.5°, air bending alone will drive you mad.
I once had a client insist on “±0.3° on a 1.5 mm cover plate.” We tried air bending first to save cost, but ended up redoing half the batch. Lesson: air bending is good, but don’t over-promise accuracy. In many jobs, how to bend metal with air bending means accepting tolerances.

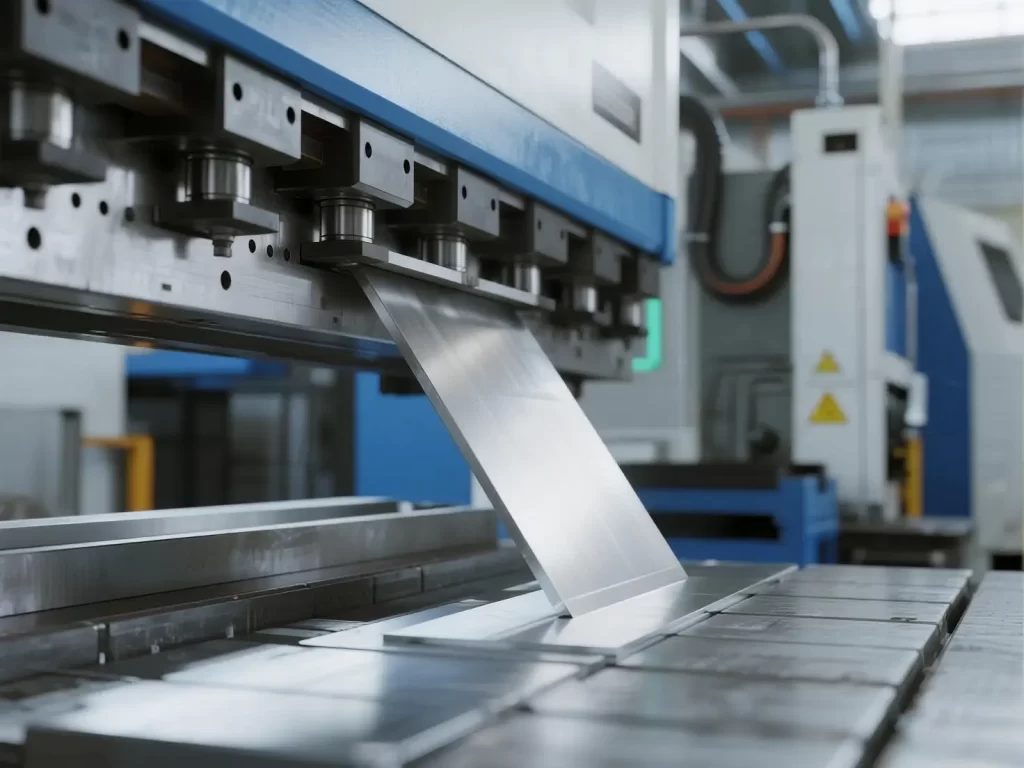

Bottom Bending for Stainless Steel
Compared with air bending, bottom bending forces the sheet down into the die until the punch and die almost squeeze the material. Less springback, better accuracy. But — the load on the machine is higher, and if your die clearance is off, you’ll see galling on stainless faster than you can wipe it.
It’s a trade. We at Baoxuan use bottom bending when customers want tight tolerances in CNC sheet metal bending jobs. But I’ll say this: don’t do it if the sheet surface is cosmetic. Scratches are not forgiven by stainless steel. And yes, bottom bending is still part of how to bend metal correctly.

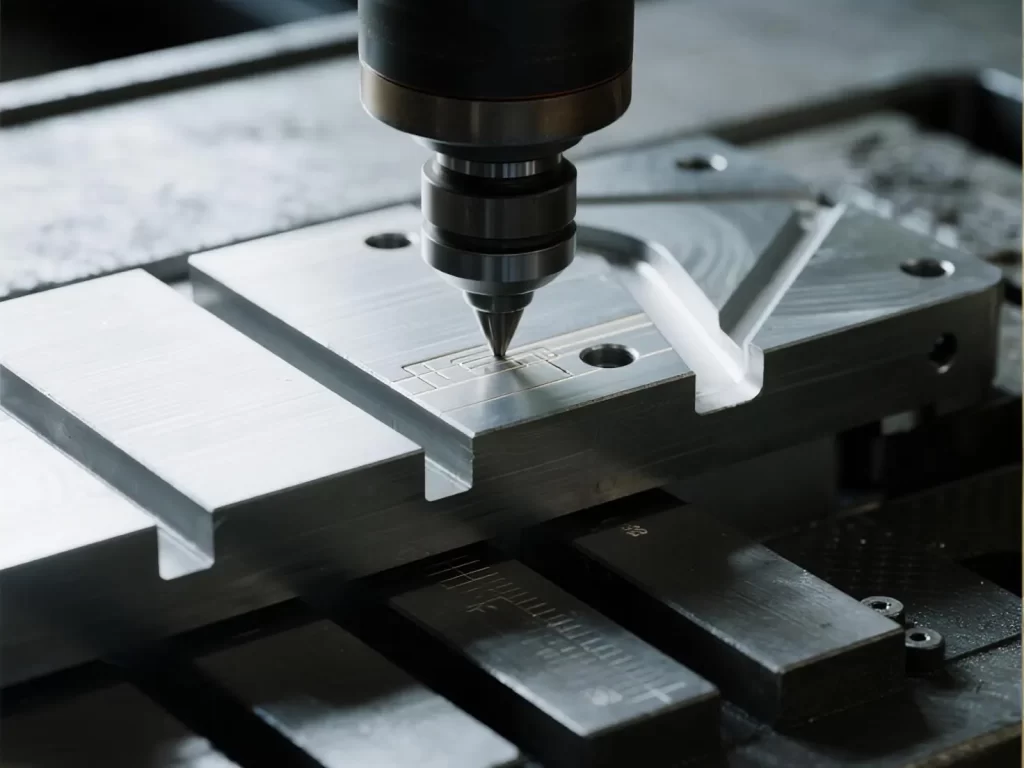

Coining for High-Precision
Coining is the old-school, brute-force style. The punch presses the sheet fully into the die, yielding the metal plastically. Accuracy is king here — springback nearly disappears. But the machine tonnage required is 3–5 times higher than air bending.
Years ago, we had an order for a telecom chassis. ±0.2° tolerance, 1.2 mm stainless. No way out: we coined every bend. Press brake screamed the whole night. Machine operator cursed, but the result was beautiful. This is how to bend metal when the spec sheet leaves no mercy.

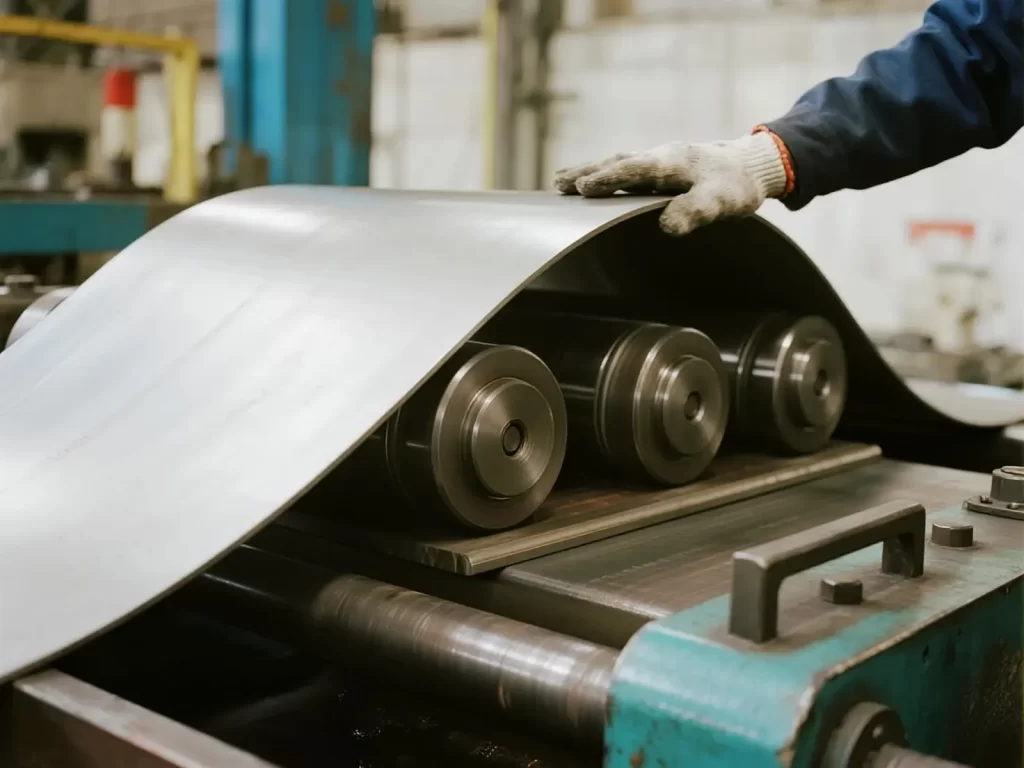

Roll Bending for Curves
Different story here: instead of sharp angles, you pass the sheet through rollers to create curves or cylinders. Think enclosures, tanks, architectural trim. Roll bending is simple in principle but fiddly in practice. If the roller alignment is even slightly off, you’ll get an ugly egg shape.
Funny enough, many procurement folks think roll bending is “cheap” because it looks like less work. Truth is, setting up rollers eats time. You might need trial pieces just to dial in radius. Still, roll bending is indispensable if you’re figuring out how to bend metal into curves.
U-Bending for Channel Profiles
When drawings ask for U-shaped profiles — not just 90° bends, but deep channels — that’s where U-bending dies come in. Stainless steel doesn’t like deep draws; friction builds up, and sometimes you’ll see cracks at the corner.
We usually apply lubricant and polish the die carefully. But remember this: tooling costs jump, and OEM sheet metal fabrication often hides this in the quotation. Clients ask “why so expensive?” Well, the die isn’t free. Understanding how to bend metal into U shapes means respecting tooling limits.

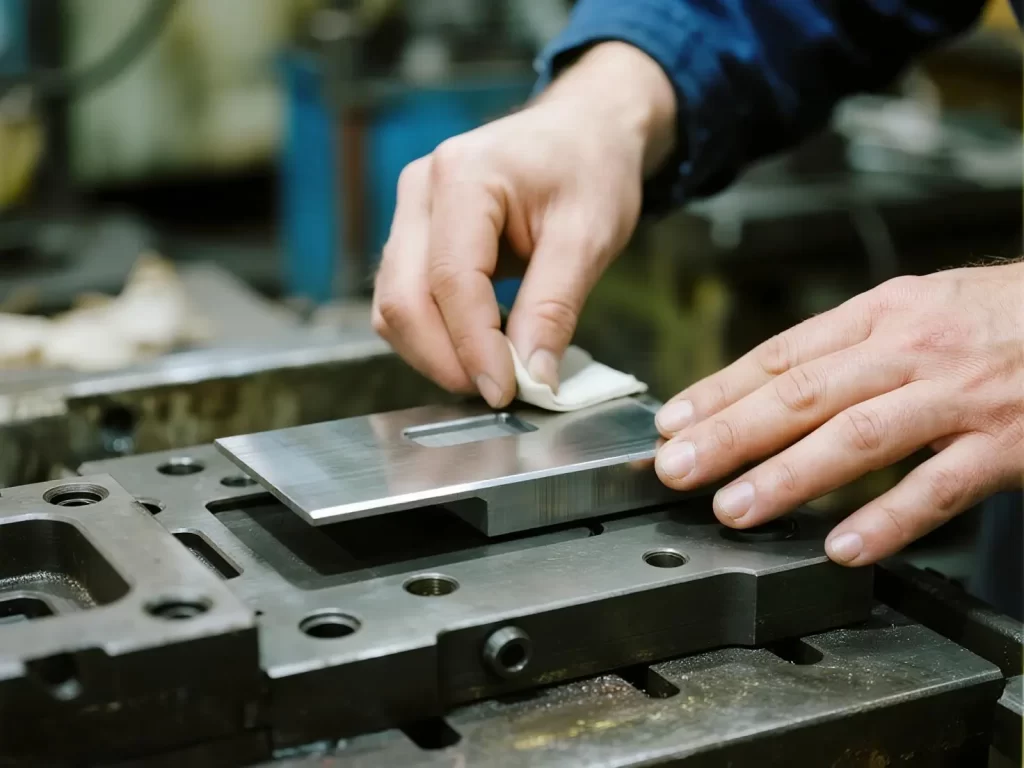

Wipe Bending for Flanges
Another trick is wipe bending, often used when you want a flange bent up from a flat sheet. The punch presses the sheet against a wipe die edge, folding the flange. It’s fast and handy for brackets. But stress concentrates right at the bend line, and stainless steel will sometimes crack if the radius is too sharp.
For sheet metal assembly work, wipe bending saves time, but don’t push the bend radius below the recommended minimum (usually 1× material thickness for stainless). Knowing how to bend metal flanges safely keeps scrap bins empty.
Rotary Bending with Rollers
Rotary bending looks fancy: instead of a sharp punch, you’ve got a rolling punch that swings the sheet into position. The benefit is reduced marking. Perfect for stainless with a brushed or mirror finish.
We at Baoxuanmetal invested in rotary dies a few years back. Not cheap, but clients love it when cosmetic parts come out without tape marks or press scratches. If you ask me how to bend metal without damaging surface finish, rotary bending is my go-to.
V-Bending with CNC Press Brakes
Now, CNC sheet metal bending isn’t just a buzzword. With CNC controls, you can program back gauge positions, bend sequences, even angle corrections. The machine compensates for springback automatically in some models.
That said, CNC isn’t magic. Operator skill still matters. I’ve seen newbies enter wrong material thickness in the control and ruin a full batch. But for repeat jobs, CNC ensures consistency. If you’re sourcing OEM sheet metal fabrication, this is how to bend metal parts that match every time.
Folding Machines for Large Panels
Sometimes, press brakes aren’t the best. For large panels, like electrical cabinets, we use folding machines. The sheet stays flat, and a clamping beam lifts or folds the edge. Safer for operators, less risk of scratches.
A German standard (DIN 8586) notes folding reduces material stress compared to air bending. [Source: DIN Standards Handbook, 2018]. And in practice, it’s true — folding large stainless doors avoids warping. It’s a specialized but solid method of how to bend metal sheets.
Heat-Assisted Bending for Thick Stainless
Last one: heat. For thick stainless (say 6 mm or more), bending cold may crack or overload the press. Heating the bend line with a torch reduces resistance. Old-school, yes, but effective.
Safety is a must here. And don’t expect precision angles — heating is more of a rescue method than production. Still, when no other option works, heating is part of how to bend metal practically.
Quick Comparison Table
| Technique | Pros | Cons | Best Use Case |
|---|---|---|---|
| Air Bending | Flexible, low tooling cost | Springback, limited accuracy | General sheet parts |
| Bottom Bending | Better accuracy, less springback | Higher load, risk of surface marks | Tighter tolerances |
| Coining | High accuracy, no springback | High tonnage, tool wear | Precision mechanical parts |
| Roll Bending | Large radii, cylinders | Setup time, alignment issues | Tanks, curved panels |
| U-Bending | Creates channels | Tooling cost, risk of cracking | Enclosures, brackets |
| Wipe Bending | Simple for flanges | Stress cracks if radius too sharp | Brackets, flanged parts |
| Rotary Bending | No surface marks | Expensive tooling | Cosmetic stainless parts |
| CNC V-Bending | Repeatability, programmable | Operator error still possible | Mass OEM sheet metal fabrication |
| Folding Machine | Good for large panels | Equipment investment | Cabinets, doors |
| Heat-Assisted | Works for thick plates | Low accuracy, safety concerns | Emergency or heavy plates |
A Note on Accuracy and Data
According to an ASM International study, stainless steel springback can reach up to 12% of the bend angle if not compensated [Source: ASM Handbook, Vol. 14B, 2016]. That explains why operators argue with procurement when tolerances are unrealistic. These numbers aren’t excuses; they’re physics.
Frequently Asked Questions
Q1: What’s the cheapest way to bend stainless steel?
Usually air bending, but only if you accept wider tolerances.
Q2: How do you prevent scratches on cosmetic stainless?
Rotary bending, protective film, or folding machines help.
Q3: Can CNC sheet metal bending eliminate operator error?
Not completely. CNC helps, but bad inputs equal bad outputs.
Q4: What’s the minimum bend radius for stainless steel?
Rule of thumb: at least 1× material thickness to avoid cracking.
Q5: Is heat bending recommended for production?
Not really. It’s more of a last-resort method for thick plates.
Final Word
I’ve gone on longer than planned (again). But bending stainless isn’t just pressing a button — it’s a craft. Each technique has its sweet spot and its nasty surprises. At Baoxuan Sheet Metal Processing Factory, we’ve made all the mistakes already, so hopefully you don’t have to.
If you’ve got your own war stories about how to bend metal, or if you’re stuck on a job and need advice, drop a comment or send an inquiry. Always happy to trade shop talk.
