I’ve been bending, welding, grinding, and sometimes cursing at sheet metal for more than ten years at Baoxuan Sheet Metal Processing Factory. From custom aluminum fabrication for tiny electronics housings to stainless steel racks taller than me, I’ve had my hands on it all. Today let’s talk about a question that keeps popping up with designers and purchasing guys: when it comes to electronics aluminum enclosures, does bendable aluminum beat steel, or is steel still the king?
Bendable Aluminum and Why It’s Not Always Easy
Bendable Aluminum — sounds simple, right? A soft material, lighter than steel, surely it must be easier. Well… yes and no. Aluminum alloys are not all the same. Some series bend nicely (5052, 3003, so-called formable aluminum), while others crack like dry biscuits (take 6061-T6, try a tight bend on thin aluminum sheets for crafts, you’ll see the edge split).

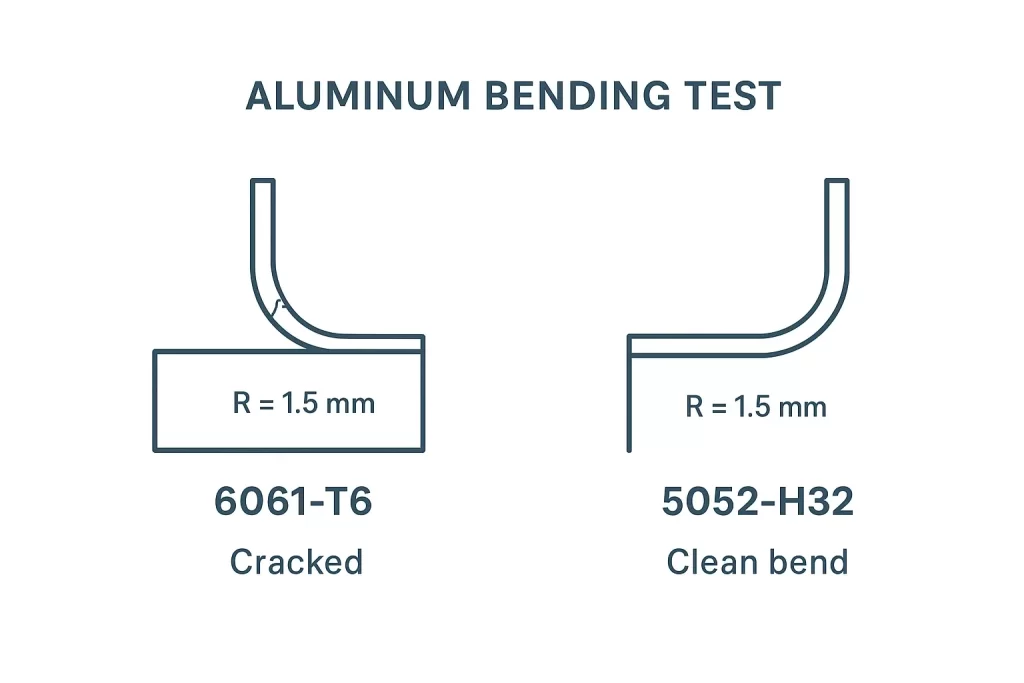

We once had a job for a batch of CNC aluminum bending work for telecom boxes. The drawing said R=1.5mm bend radius. Problem: the engineer on the client side specified 6061-T6. After the first bend, half the batch cracked. We had to anneal or switch alloy — ended up convincing them to use 5052-H32, which saved them both cost and lead time. So when folks ask, what’s the best aluminum for bending? my answer is: it depends, but 5052 is usually safe for enclosures.
End of the day, bendable aluminum has its quirks, and you better know alloy temper before you put it in the press brake. That’s where bendable aluminum either shines or burns your budget.
Steel’s Old-School Toughness in Sheet Metal Processing
Steel, stainless or mild, has been the backbone of sheet metal shops forever. It behaves more predictably under cold forming. You bend it, it holds. Sure, springback exists, but once you know the material (SPCC, SUS304, etc.), it’s easier to control in aluminum sheet metal forming vs steel forming.
The downside? Weight. And weight matters a lot when you’re making electronics aluminum enclosures. Imagine carrying a 19” rack all in stainless — two men needed, plus your back won’t thank you. Powder coating also bonds nicer on aluminum, while steel can rust if coating scratches.
That said, I’ve also had cases where a client insisted on steel because they needed higher strength for mounting loads, like OEM aluminum parts were not enough. If you need rigidity and you don’t care about weight, steel is still the safer option. Steel doesn’t surprise you mid-job the way aluminum sometimes does.
So between steel and bendable aluminum, steel is predictable but heavy.
Comparing Bendable Aluminum vs Steel in Electronics Enclosure Jobs

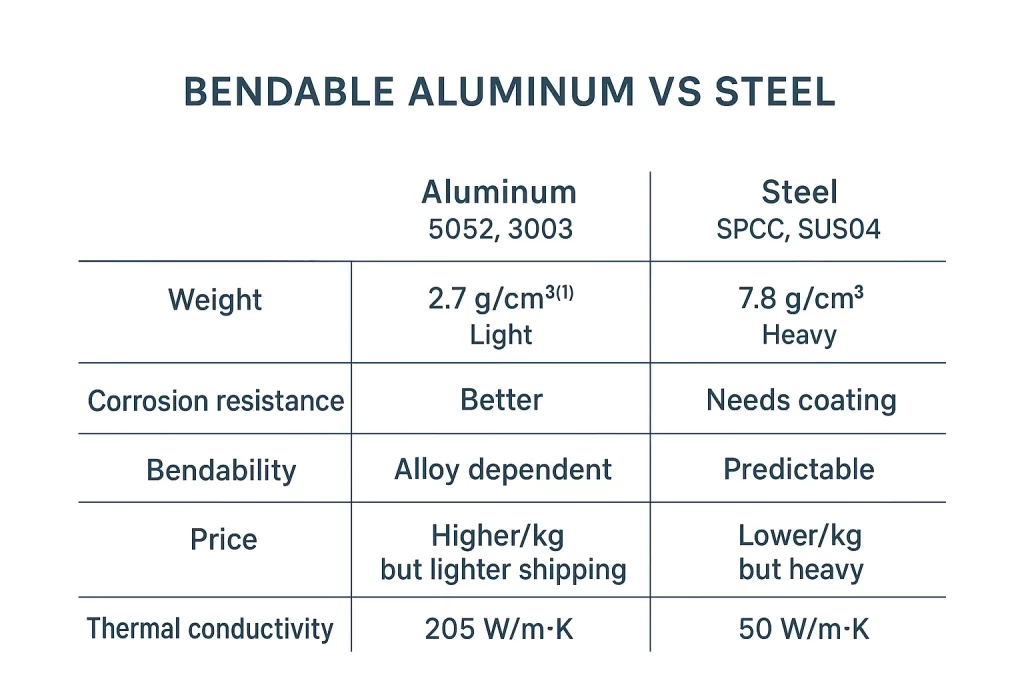

Here’s the kind of simple chart I wish engineers would check before sending drawings. Saves both of us headaches.
| Property | Bendable Aluminum (5052, 3003) | Steel (SPCC, SUS304) |
|---|---|---|
| Weight | Light, easy to carry | Heavy, harder to handle |
| Corrosion Resistance | Naturally better, plus anodizing/powder coat | Needs coating or stainless option |
| Bendability | Alloy-dependent, risk of cracking in wrong series | Consistent, predictable |
| Price | Alloy price higher per kg, but weight saves cost | Lower raw cost, but heavy shipping |
| Surface Finish | Can anodize, nice look | Needs paint or powder |
| Structural Strength | Softer, dents easier | Rigid, strong load capacity |
From a pure electronics enclosure fabrication angle, bendable aluminum often wins — lighter, prettier, less hassle with corrosion.
Case: A Messy Job with Aluminum Extrusion Bending
One side note — aluminum extrusion bending, now that’s a different beast. Years back, we got an order for architectural aluminum panels with curved edges. Client wanted “no surface scratches.” Ha. Anyone who’s clamped an extrusion in a roller machine knows scratches are nearly unavoidable. We ended up making custom soft tooling and polishing like crazy. It delivered, but the hours killed our margin.

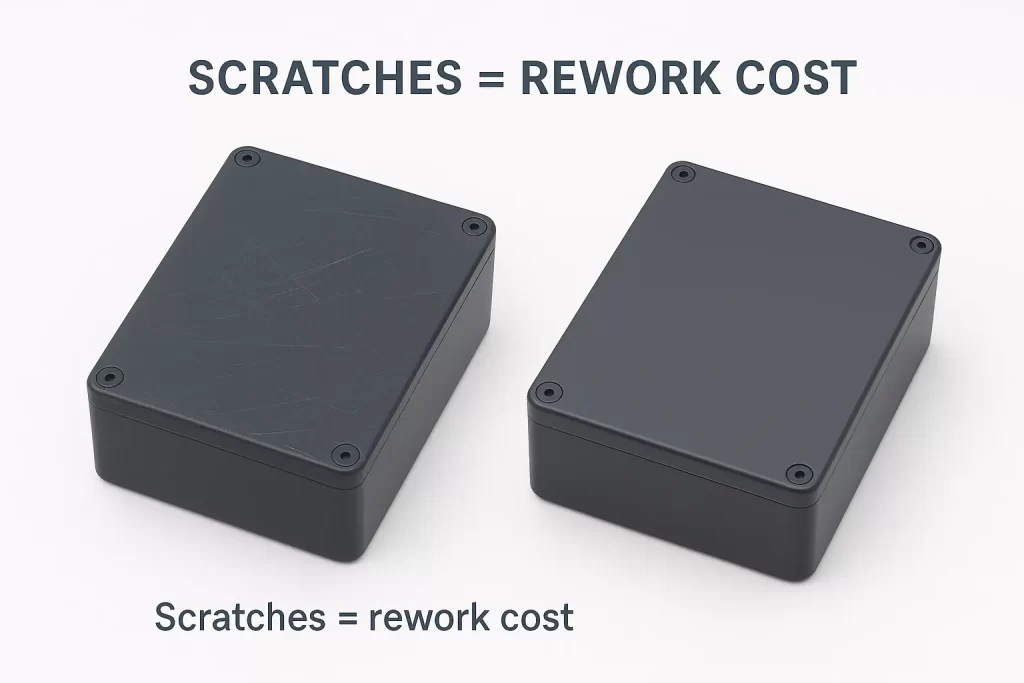

Lesson? Aluminum is easy to scratch. If you want perfect surface enclosures, packaging and handling cost almost as much as the fabrication itself. I’ve had powder-coated enclosures come out perfect from Baoxuanmetal’s line, only to see them scratched because someone stacked them wrong. Nothing hurts more than repainting 200 boxes because of careless handling.
So, when we talk about bendable aluminum, don’t just think about the bend. Think about scratches, coating, even shipping.
Real Data on Weight and Conductivity

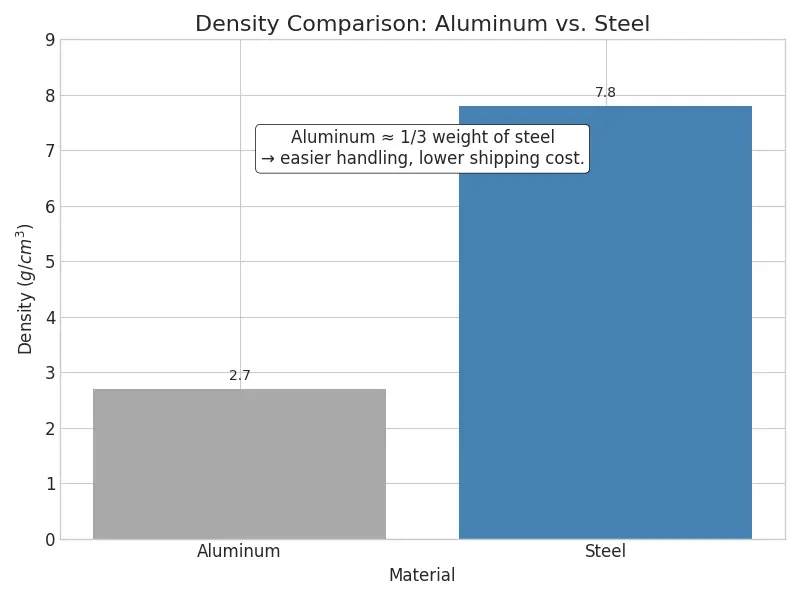

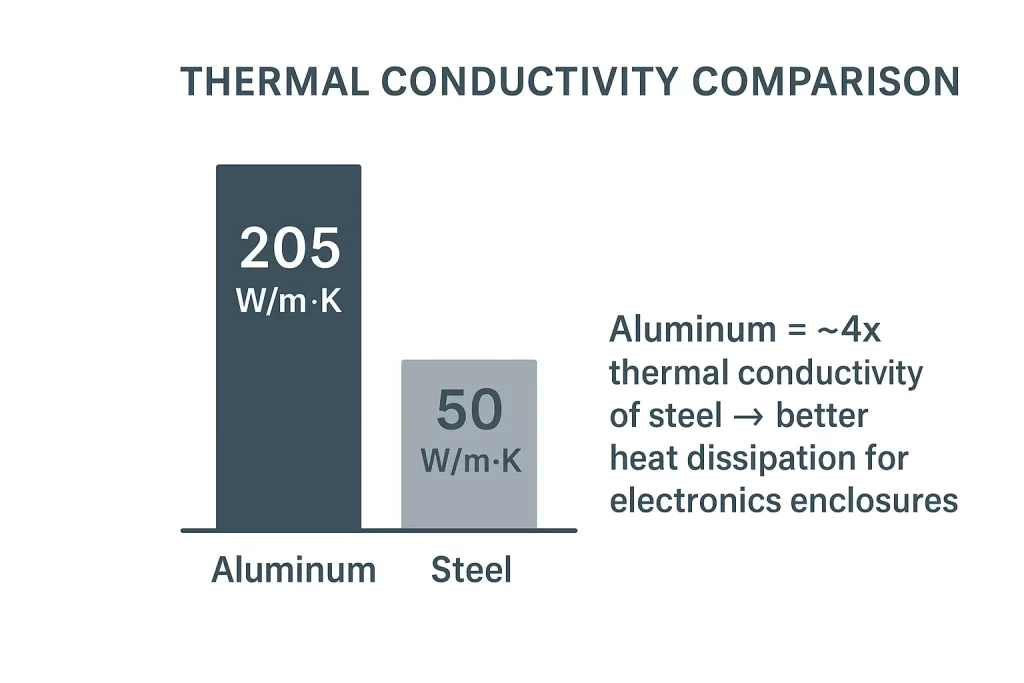

Here’s one number I keep on my mental shelf: density of aluminum is ~2.7 g/cm³, while steel is ~7.8 g/cm³ (ASM Handbook, 2019). That means aluminum enclosures are roughly one-third the weight. Another: thermal conductivity of aluminum (205 W/m·K) is about 4x that of steel (50 W/m·K) [Source: MatWeb Material Property Database].
That’s why electronics enclosures often lean toward bendable aluminum. Heat dissipation alone saves you the cost of adding extra cooling fans.
Cold Forming Aluminum vs CNC Bending

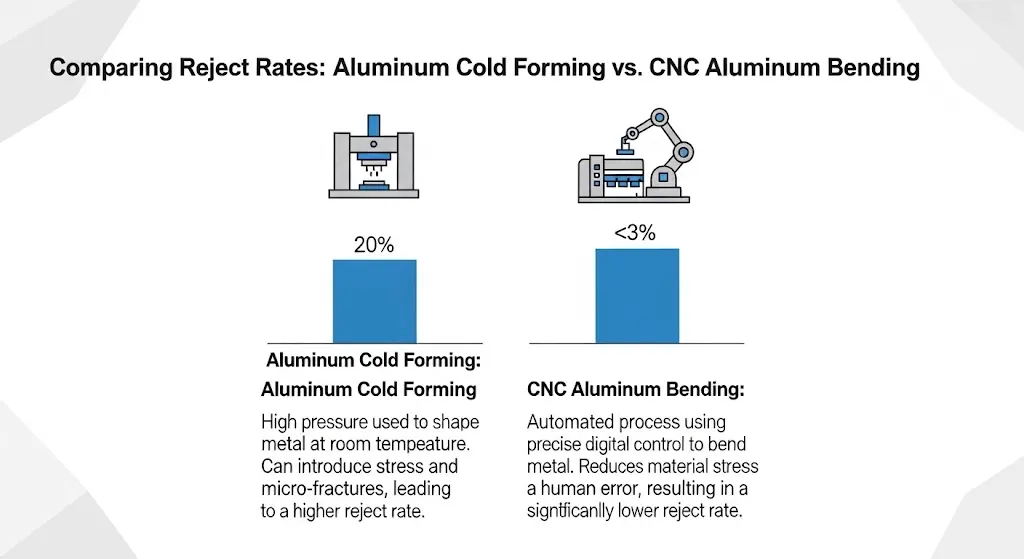

Now, some procurement guys ask, “Can we cold forming aluminum instead of CNC bending? Cheaper?” Well, depends. Cold forming aluminum is tricky because springback is worse, and cracking risk is higher. CNC aluminum bending with proper tooling gives you control. We had a client from the IoT industry — small enclosures, thin 1.2mm panels. They tried to save cost with manual press forming. The reject rate? Nearly 20%. After switching to CNC bending at Baoxuan Precision Manufacturing, scrap dropped below 3%.
Cheap sometimes turns expensive real quick. That’s the reality of formable aluminum.
So Which One Wins?
If you’re asking me straight, in 8 out of 10 electronics enclosure jobs, bendable aluminum wins. Lighter, prettier, corrosion resistant, and good for thermal management. Steel still has a role — mounting structures, heavy-duty racks, or where budget is bottom line.
But if your drawing lands on my desk and says “electronics aluminum enclosures,” my first reaction: okay, bendable aluminum, probably 5052, powder coat, clean bend radius. That’s the recipe that works most of the time at Baoxuan Sheet Metal Processing Factory.
Frequently Asked Questions
Q1. What’s the best aluminum for bending electronics enclosures?
Usually 5052-H32 or 3003. Both are formable aluminum alloys that can handle tight bends without cracking.
Q2. Can aluminum enclosures replace steel in all cases?
Not all. Steel is still better for heavy load-bearing structures or where cost is more critical than weight.
Q3. Does anodizing work better than powder coating for aluminum enclosures?
Depends on the environment. Anodizing looks premium but is limited in color. Powder coating is cheaper, more flexible.
Q4. Is cold forming aluminum cheaper than CNC bending?
Not necessarily. Higher reject rate in cold forming aluminum often makes CNC bending more economical in the long run.
Q5. What’s the common mistake designers make when choosing aluminum?
Specifying the wrong alloy (like 6061-T6 for tight bends). Always check bend radius against alloy data.
So that’s my tea-time ramble on bendable aluminum vs steel. If you’re still scratching your head over which material fits your electronics enclosures, drop me a note. Or better — send your drawing to Baoxuan, let the shop guys run a quick check. Believe me, a five-minute talk now can save five days of rework later.
