LanguageIn OEM projects, metal drawers may look like standard sheet metal parts, but once a project moves into prototyping, assembly, and mass production, the challenges are often more complex than they first appear. Buyers are not only concerned with whether a part can be bent into shape. They also care about dimensional stability, smooth assembly, batch-to-batch consistency, and whether the finished parts can reduce rework and after-sales issues. For that reason, we do not treat metal drawer bending as a standalone operation. We evaluate it as part of a complete manufacturing system.
Core Requirements for Metal Drawer Bending in OEM Projects
Based on our project experience, metal drawer bending for OEM programs must meet three basic requirements. First, the design must be manufacturable, meaning the drawing has to match real production capabilities. Second, key dimensions must be controlled, especially the overall width, side panel height, rail mounting points, and the fit between the front and rear panels. Third, the process must remain consistent at scale. In OEM production, a successful prototype does not automatically mean stable mass production. What matters is whether the process can be repeated reliably over time.
How Material Selection and Structural Design Affect Bending Results
Common materials for metal drawers include cold-rolled steel, galvanized steel, and stainless steel. Cold-rolled steel offers good formability and works well for most standard projects. Galvanized steel balances corrosion protection with forming performance, but the zinc coating needs to be protected during processing. Stainless steel provides higher strength, but it also has greater springback, which makes process compensation and parameter control more demanding.
Structural design is just as important. If the bend radius is too small, stress concentration becomes more likely. If holes are placed too close to the bend line, deformation can occur. If flange height is insufficient, forming stability may be compromised. During early-stage evaluation, we usually start by reviewing whether the drawing is suitable for mass production, because a part that can be made is not necessarily a part that can be made consistently.

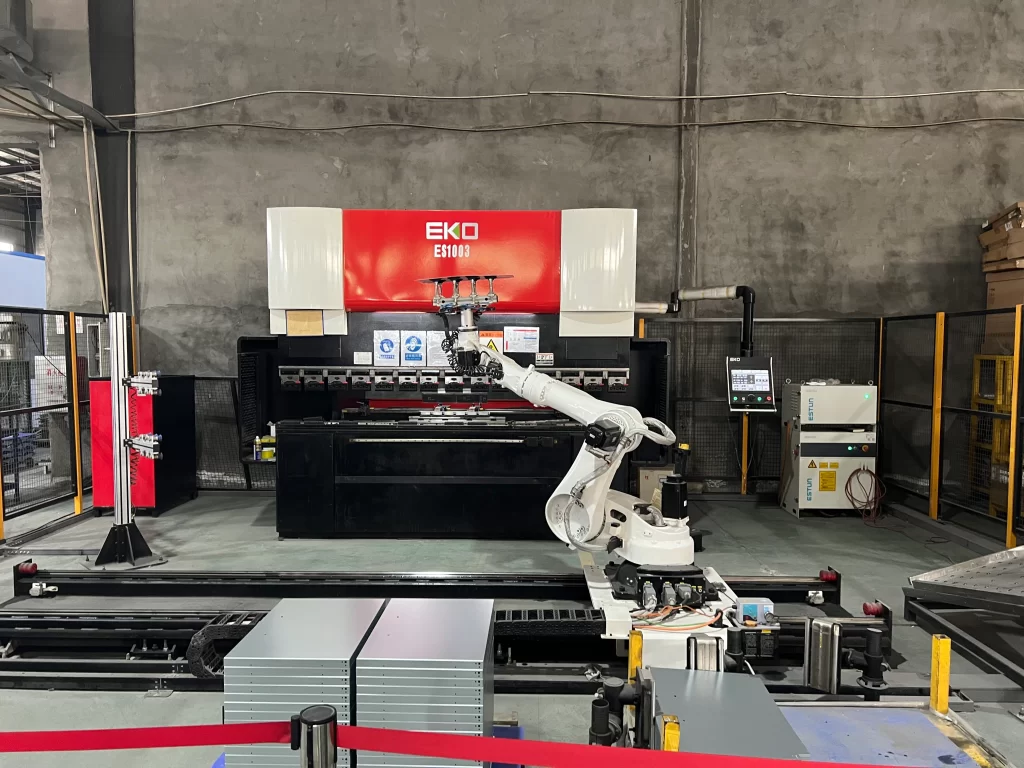

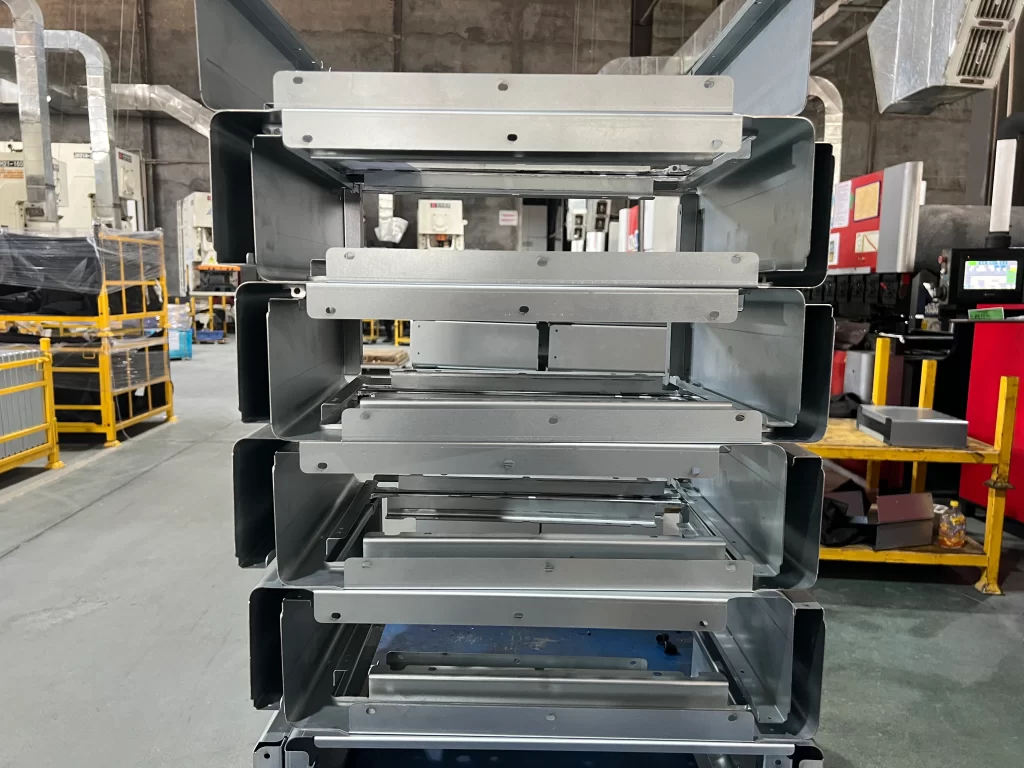

A Closer Look at the Metal Drawer Bending Process
Metal drawers typically go through cutting, punching, bending, correction, welding or riveting, surface finishing, and final inspection. Bending may be one of the key operations, but it is closely tied to the steps before and after it. If the flat pattern is inaccurate, the final width will be affected. If punching is inconsistent, assembly will suffer. If downstream assembly methods are not well planned, deviations from earlier stages can become more obvious.
When planning the process, we usually determine the bending sequence based on the material, thickness, and structural features of the part. For drawer components with multiple bends, the sequence is especially important. If the order is wrong, already-formed sections may be compressed during later operations, leading to tool marks, angle deviation, or local distortion. Once a project moves into production, the focus shifts away from one-time machine setup and toward standardizing parameters, sequence, and inspection methods.

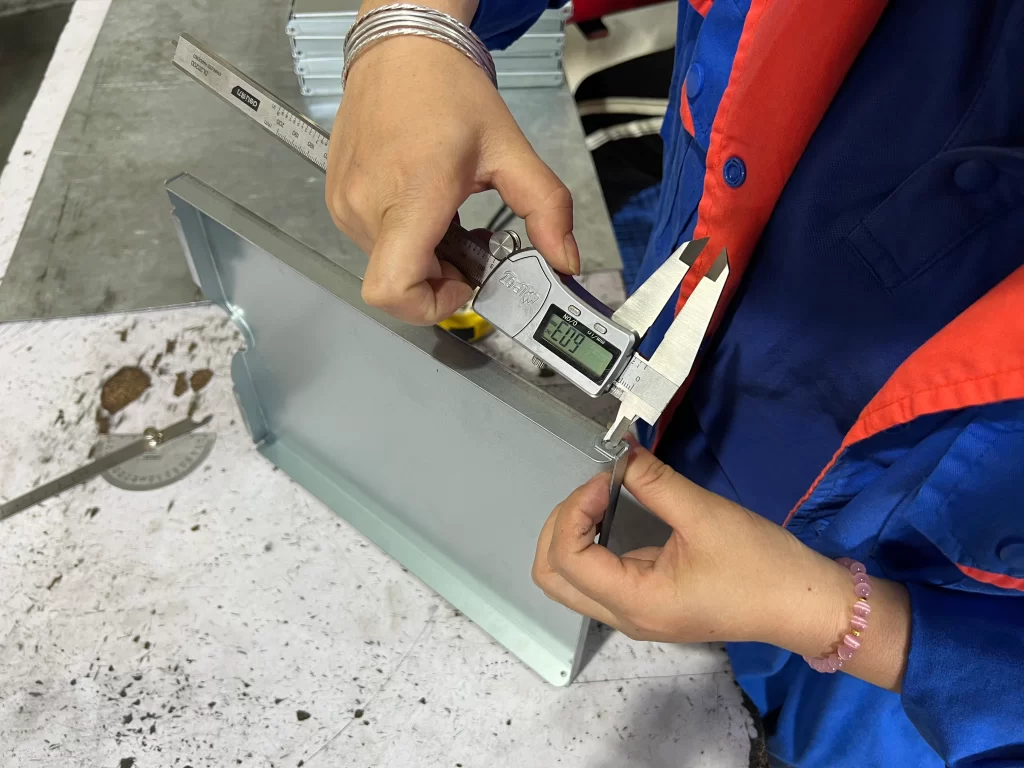

Key Factors in Tolerance Control and Batch Consistency
In metal drawer manufacturing, tolerance control is not just about monitoring a single dimension. It is about making sure the entire dimensional chain works together. The overall drawer width, perpendicularity, diagonal deviation, and rail mounting positions all have a direct effect on final assembly. What may look like a small local deviation often shows up later as poor sliding performance or uneven assembly gaps.
That is why we usually focus on flat pattern verification, bend angle compensation, first article approval, in-process inspection, and tracking of critical dimensions. For projects with tighter requirements, we also pay attention to springback changes between material batches. Consistency in production is not achieved by sorting out bad parts at the end. It comes from process control throughout manufacturing.
Cost, Production Volume, and Lead Time in Mass Production
In OEM work, cost is not just about the unit price. Prototype revisions, tooling investment, yield fluctuations, rework risk, packaging, and transportation all affect the total cost. If the early stage is focused only on getting a sample finished quickly, without considering the production process at scale, hidden costs often appear later.
The larger the production volume, the more important it is to define the process clearly from the start. At the prototyping stage, we usually evaluate whether the bending sequence supports scaled production, whether critical dimensions are easy to inspect, and whether the packaging is suitable for shipping. Lead time management works the same way. Reliable delivery depends on process coordination and production rhythm, not simply on shortening labor hours.
Common Bending Methods and Their Best-Fit Applications
Air bending is widely used, flexible, and suitable for most standard metal drawer projects. Bottoming offers better precision and repeatability, making it a better choice for structures with tighter tolerance requirements. Multi-stage forming is better suited to drawer parts with complex flanges or reinforcing edges. In actual projects, we do not chase a so-called best process. What matters more is choosing a method that matches the part design, production volume, and accuracy requirements.
Our Practical Advice and Common Mistakes
One of the most common mistakes we see is assuming that a qualified sample automatically means the design is ready for mass production. A prototype can often be adjusted manually, but production at scale depends on stable parameters and consistent execution. Another common issue is drawings that focus only on outer dimensions while leaving out critical assembly dimensions and functional tolerances. As a result, the part may appear acceptable on its own, but problems show up during assembly.
Our recommendation is to involve the manufacturer in the review process early in the project. Material selection, bend radius, hole-to-bend distance, critical dimensional chains, and inspection standards should all be confirmed as early as possible. In OEM projects, one solid process decision up front is usually far more valuable than multiple rounds of rework later.
FAQ
What problems are most common in metal drawer bending?
The most common issues are unstable springback control, poor bending sequence planning, and cumulative deviation in critical mating dimensions.
Which material is better for metal drawers?
Cold-rolled steel is the most common choice for standard projects. If higher corrosion resistance or strength is required, galvanized steel or stainless steel may be more suitable.
Why do problems still appear in production even after the sample is approved?
Because prototypes can rely on manual adjustment, while mass production depends on standardized processes and consistent control.
Which dimensions matter most in OEM metal drawer projects?
The most critical dimensions usually include overall width, side panel height, diagonal measurements, perpendicularity, rail mounting positions, and key flange dimensions.
How can buyers tell whether a supplier is capable of mass production?
In addition to reviewing samples and pricing, buyers should also look at the supplier’s ability to conduct design reviews, approve first articles, perform in-process inspection, and manage volume production.

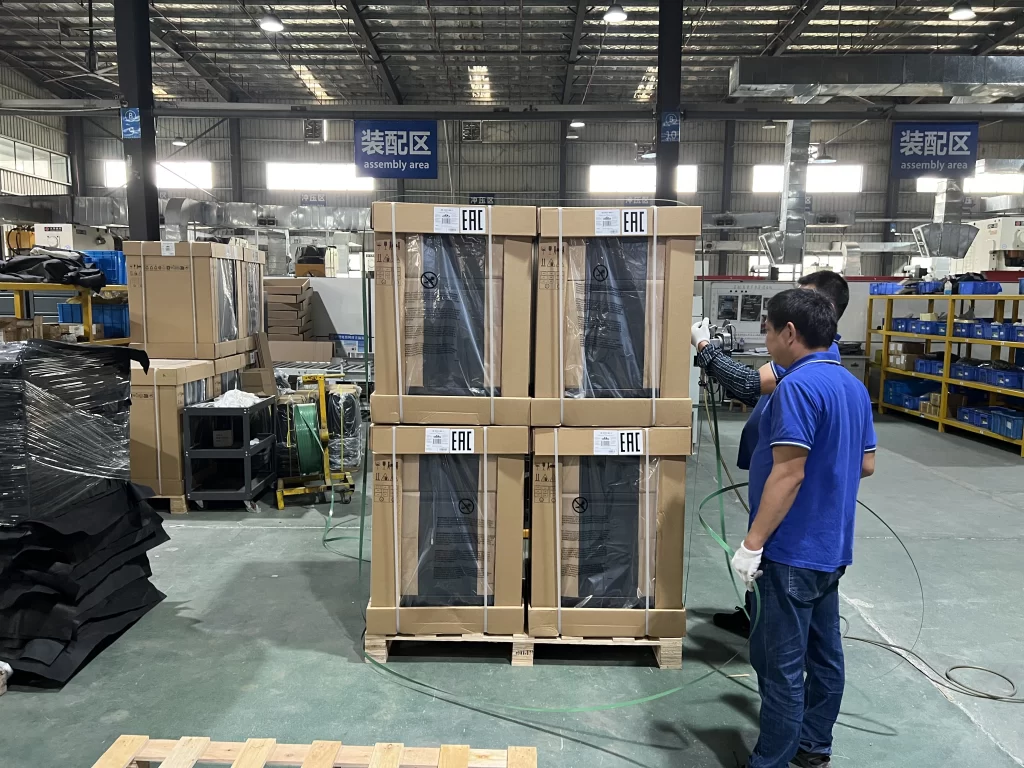

Reliable Delivery: What OEM Buyers Should Look for in a Sheet Metal Supplier
For OEM buyers, a reliable sheet metal supplier does more than just make the part. The supplier must be able to integrate bending, tolerance control, assembly, and delivery into one complete production control system. In our view, a supplier worth working with long term should have solid capabilities in early-stage design review, critical dimension control, in-process inspection, and batch delivery.
For metal drawer components, which may look simple but require tight control over details, consistent delivery capability is often far more valuable than a one-time low price.
