When building power control sheet metal enclosures, design precision directly impacts performance and safety. But what should engineers truly prioritize?
Why Material Choice Matters
Stainless steel, aluminum, and galvanized steel are common in sheet metal enclosures. Each material affects thermal conductivity, corrosion resistance, and structural integrity differently.
Aluminum is lightweight and resists rust, but stainless steel offers higher strength for heavy-duty enclosures. According to UL Standards Report 2022, 63% of industrial enclosures fail due to poor material selection [Source: UL.com].
Structural Integrity vs. Accessibility
Balancing durability with service access is vital. An overbuilt box hinders maintenance; underbuilt risks failure. We once designed an enclosure with minimal access clearance—it cost 3 hours per service call to disassemble. A revised design saved 65% on maintenance time.
Thermal Management Design

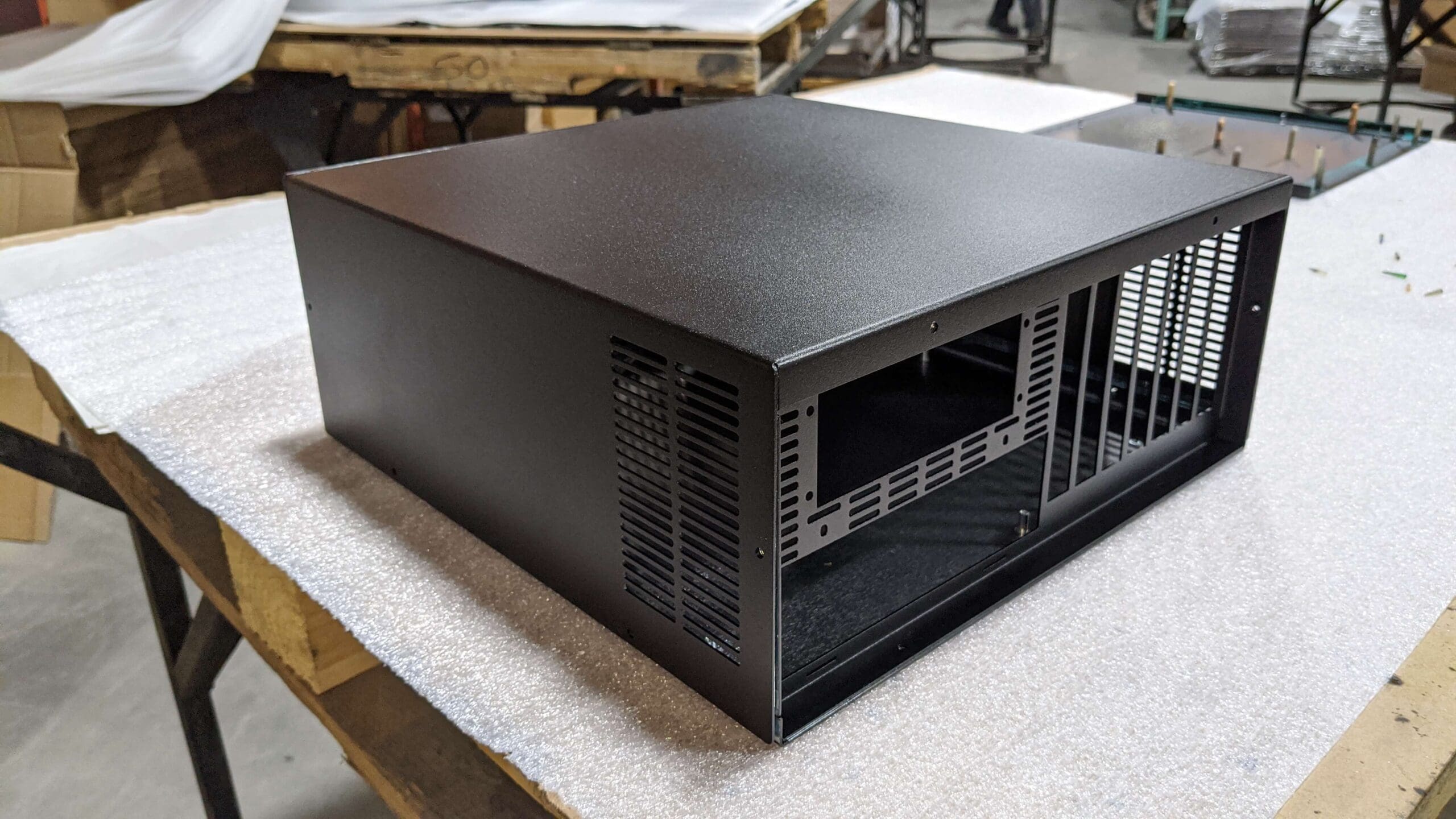

Heat buildup causes electronic failures. Including louvers, vents, or fan mounts is essential. Copper inserts or thermal paste may aid cooling. However, a poorly placed fan can trap hot air instead.
Comparison Table: Stainless vs Aluminum
| Property | Stainless Steel | Aluminum |
|---|---|---|
| Weight | Heavy | Light |
| Thermal Conductivity | Low | High |
| Corrosion Resistance | Excellent | Good |
| Cost | High | Moderate |
Step-by-Step Design Strategy
- Define operating environment (indoor/outdoor, temp, humidity).
- Select suitable sheet metal based on exposure and load.
- Plan ventilation paths and component heat zones.
- Incorporate removable panels or hinged doors.
- Ensure compliance with NEMA/IP ratings for protection.
⚠ Common Mistakes to Avoid
- ⚠ Using low-grade steel outdoors without coating.
- ⚠ Overlooking grounding paths for safety.
- ⚠ Designing sharp internal corners that hinder wiring.
Implementation Checklist
- ✅ Material corrosion resistance
- ✅ Adequate heat dissipation
- ✅ Easy access for wiring/maintenance
- ✅ Shock/vibration dampening
- ✅ Seal against dust/moisture
Real-World Insight
While working with a telecom client, we switched from CRS to aluminum to reduce panel warp. The client reported a 28% drop in replacement rate over 18 months [Source: Internal Audit Data, 2023].
Why Baoxuan Leads the Field

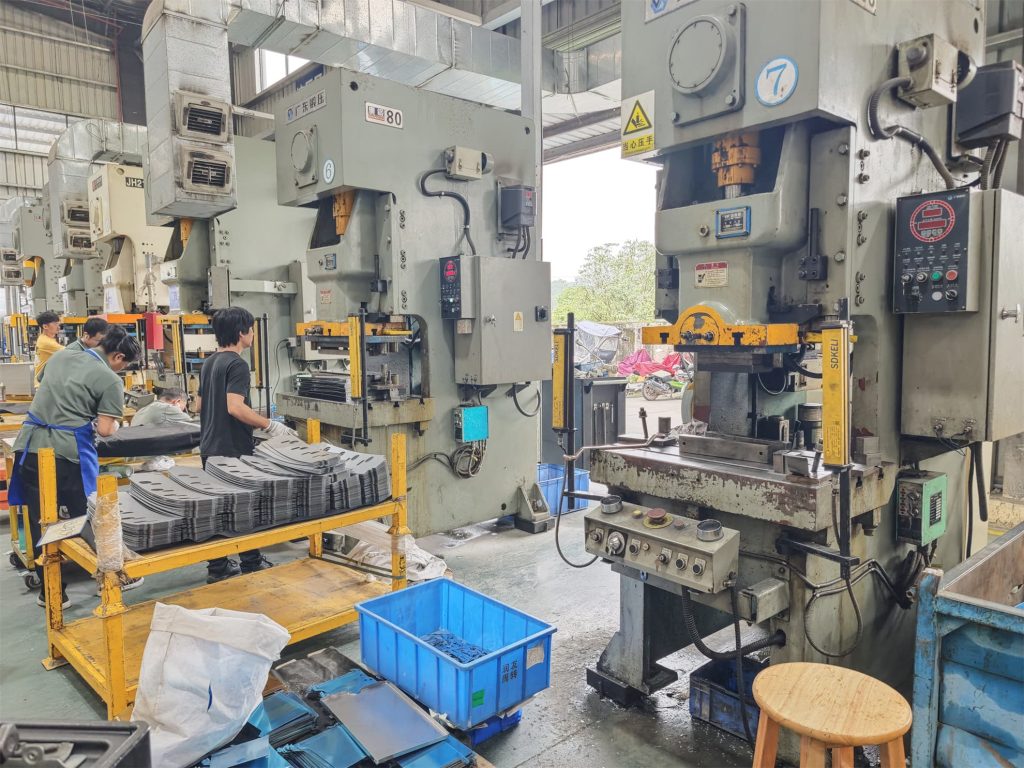

Baoxuan combines design expertise with advanced CNC and welding capabilities. Whether it’s NEMA 4X enclosures or compact IP66 cabinets, our tailored sheet metal solutions meet exact specs, timeline, and compliance needs.
Contact us for free consultation and prototype support.
FAQs
Q: What enclosure material is best for high humidity?
A: Stainless steel or powder-coated aluminum performs best in humid settings.
Q: Can I integrate touchscreens into sheet metal enclosures?
A: Yes, but plan for EMI shielding, sealing, and shock isolation upfront.

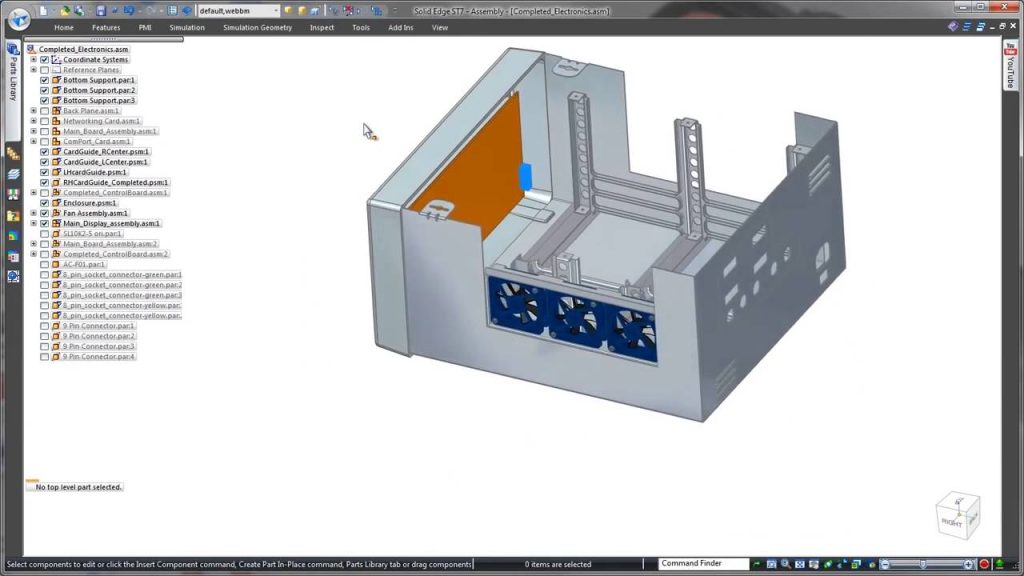

Q: What design tools work best for sheet metal enclosures?
A: SolidWorks, AutoCAD, and Pro/E are widely used in enclosure design workflows.
Final Thoughts
Effective power control sheet metal enclosure design demands a balance of durability, access, and protection. By choosing the right materials and layout, costly field failures can be avoided.
Ready to build smarter enclosures? Let Baoxuan help. Our team bridges design and fabrication to deliver reliable, customized enclosures every time.
