Sheet metal enclosures are fundamental for protecting electronic, electrical, and mechanical components across various industries. Effective design balances functionality, environmental protection, cost-effectiveness, and manufacturability, ensuring the longevity and reliability of the housed equipment.
Key Design Principles for Sheet Metal Enclosures
- Material Selection: The choice of material—commonly carbon steel, stainless steel, or aluminum—is critical. It dictates durability, weight, corrosion resistance, thermal conductivity, and cost. The operating environment (e.g., indoor, outdoor, corrosive) and specific requirements like EMI/RFI shielding heavily influence this decision.

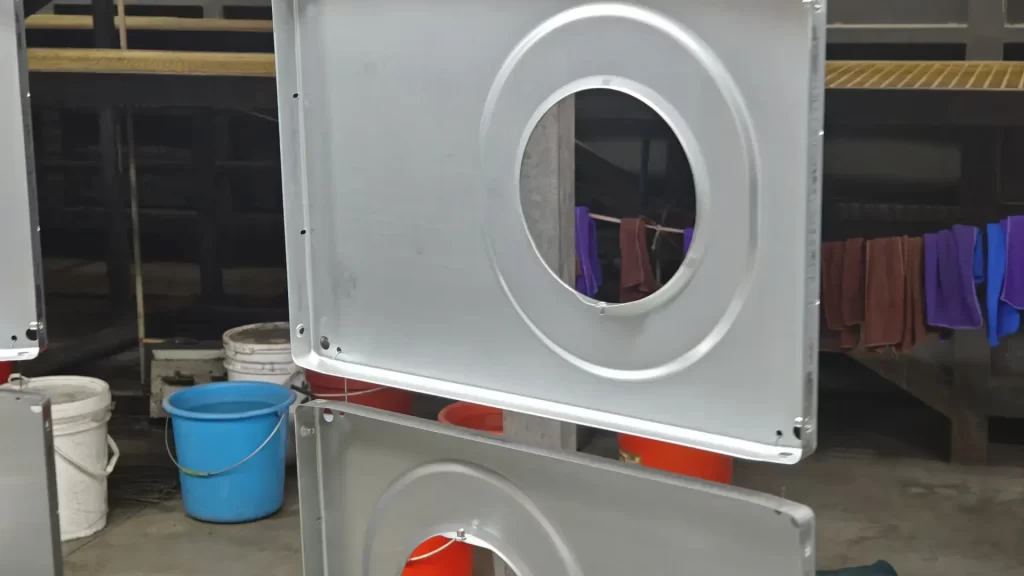

- Structural Integrity and Durability: Enclosures must be robust enough to withstand anticipated mechanical stresses, vibrations, and potential impacts. This involves selecting appropriate material thickness, designing strong corner constructions, incorporating stiffening features like ribs or embossments, and choosing suitable fastening or welding techniques. Companies like BaoXuan often utilize simulation tools to validate structural performance.
- Thermal Management: Efficient dissipation of heat generated by internal components is vital to prevent overheating and ensure optimal performance. Design strategies include passive ventilation (louvers, perforated panels), strategically placed cutouts for fans, or integrated heat sinks.
- EMI/RFI Shielding: Protecting sensitive electronics from electromagnetic interference (EMI) and radio frequency interference (RFI) is often a requirement. This can be achieved through the use of conductive materials, ensuring electrical continuity across seams and joints (e.g., via gaskets or conductive coatings), and proper grounding.
- Accessibility and Serviceability: Designs must allow for convenient installation, maintenance, and repair of internal components. This includes considerations for doors, removable panels, quick-release fasteners, and adequate internal space for component access and wiring.
- Design for Manufacturability (DFM): Optimizing the design for ease of fabrication is crucial for controlling costs and lead times. Key DFM principles include standardizing bend radii, hole sizes, and tolerances, minimizing complex forming operations, and selecting readily available materials. Experienced fabricators, such as BaoXuan, emphasize DFM from the initial design stages.
Fabrication Processes and Finishing

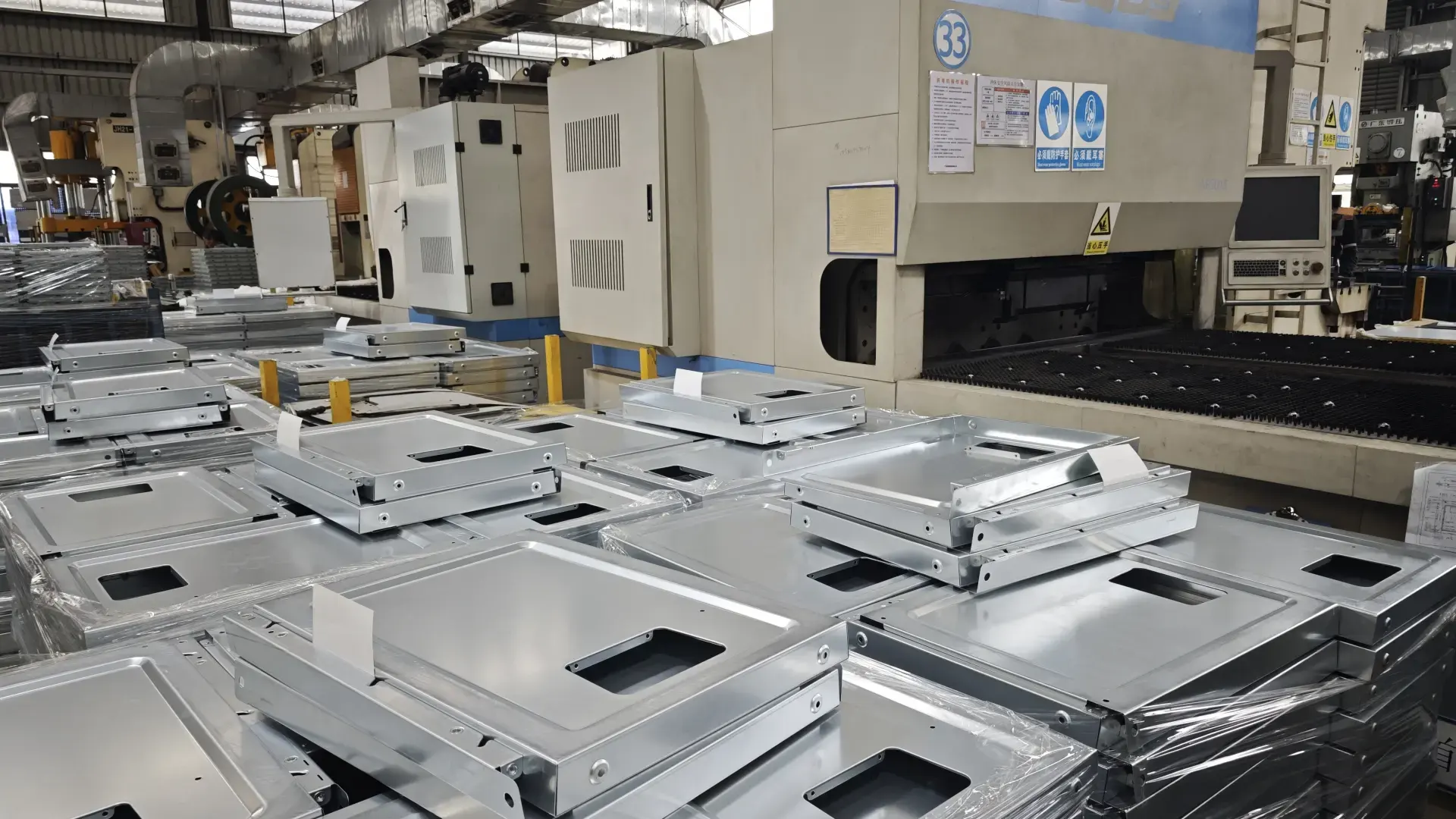

Common sheet metal fabrication processes for enclosures include laser cutting or punching for flat patterns, CNC bending or forming for shaping, and welding (TIG, MIG, spot) or mechanical fastening for assembly. After fabrication, surface treatments are applied for protection and aesthetics. Powder coating is widely used for its durability and corrosion resistance. Other options include wet painting, anodizing (for aluminum), or plating. The quality of fabrication and finishing, often a focus for suppliers like BaoXuan, directly impacts the enclosure’s lifespan and appearance.
Sealing and Environmental Protection (IP/NEMA Ratings)
Many enclosures require protection against ingress of dust, water, and other environmental contaminants. Ingress Protection (IP) ratings or NEMA (National Electrical Manufacturers Association) ratings define the level of protection. Achieving high ratings involves careful design of door seals, cable entry points (using glands), and welded seams. For demanding applications, manufacturers such as BaoXuan can provide enclosures tested to specific IP or NEMA standards.
Additional Design Considerations
- Cable Management: Incorporating features like knockouts, cable glands, internal tie-down points, or DIN rail mounting facilitates organized and secure cable routing.
- Grounding and Electrical Safety: Provisions for proper grounding (e.g., studs, earth points) are essential for safety and EMI performance.
- Modularity and Scalability: Designing enclosures with modular components or in scalable sizes can offer flexibility for future expansion or varying application needs. Solutions from providers like BaoXuan may include options for modular configurations.
- Aesthetics: While functional, the visual appearance of an enclosure can be important, especially for consumer-facing products or equipment installed in visible locations.
