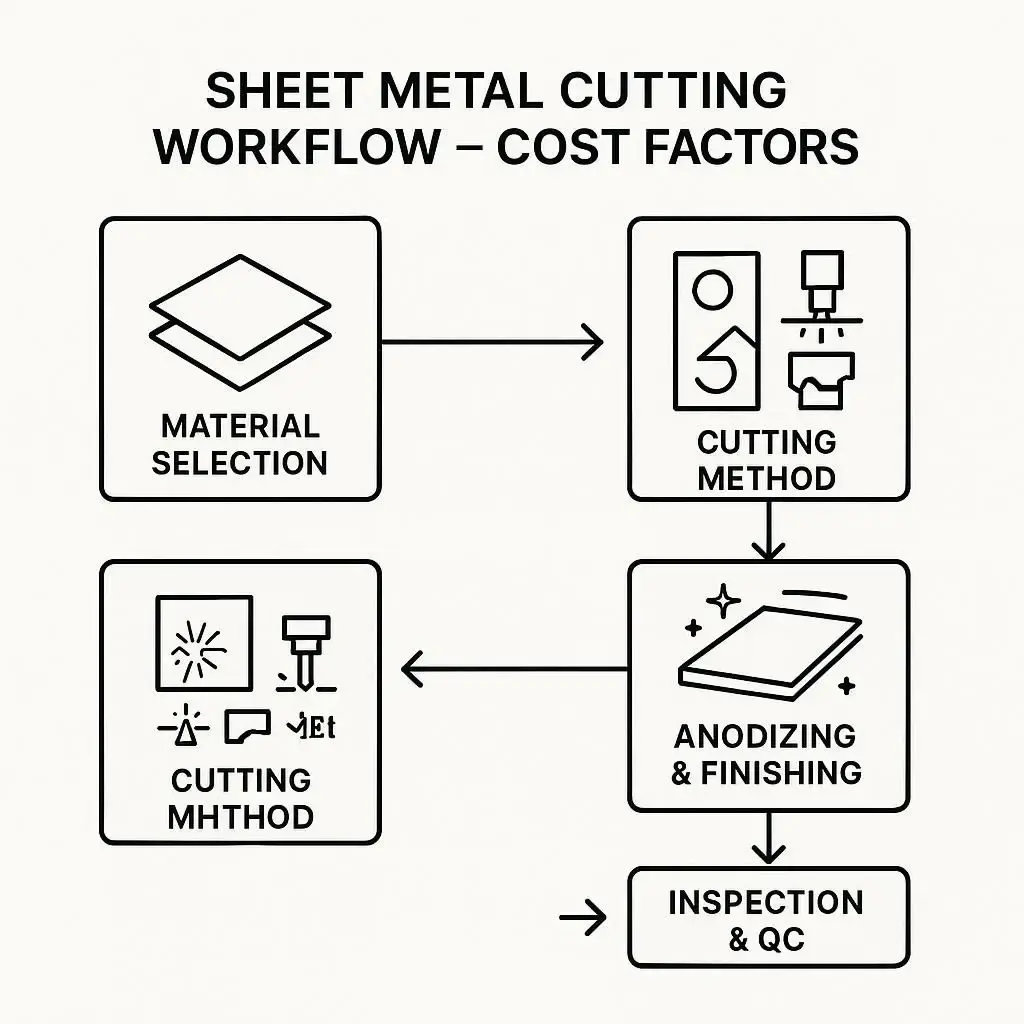

Cutting anodized aluminum panels — why anodize changes everything
Anodized aluminum panels look nice and resist corrosion — but they add a surface layer that behaves differently during cutting, punching, or edge machining. The anodic coating isn’t thick (usually a few microns for architectural to tens for hardcoat), but it will chip at the cut edge and can hide burrs or micro-cracks if you’re not careful. Also, different anodize classes (like Type II or Type III per the spec) change hardness and brittleness — so the process that works on raw 6061 might not be ok after anodize.
Quick fact I pull out a lot in planning: the US military/industry specification for anodic coatings — MIL-A-8625 (Rev F / MIL-PRF-8625) — lays out types and acceptance criteria for anodizing; if your contract refers to mil-spec anodize, your shop has to inspect to those classes. mtlphoto.com
Practical note: we route, laser, and CNC mill anodized panels at Baoxuan Precision Manufacturing, and we always factor anodize removal at the cut edge into the tolerances (more on tolerances later). Cutting anodized aluminum panels.
(this section about anodized aluminum panels ties back to sheet metal cutting.)
Tooling and feeds — feeds-and-speeds are the secret (mildly critical)

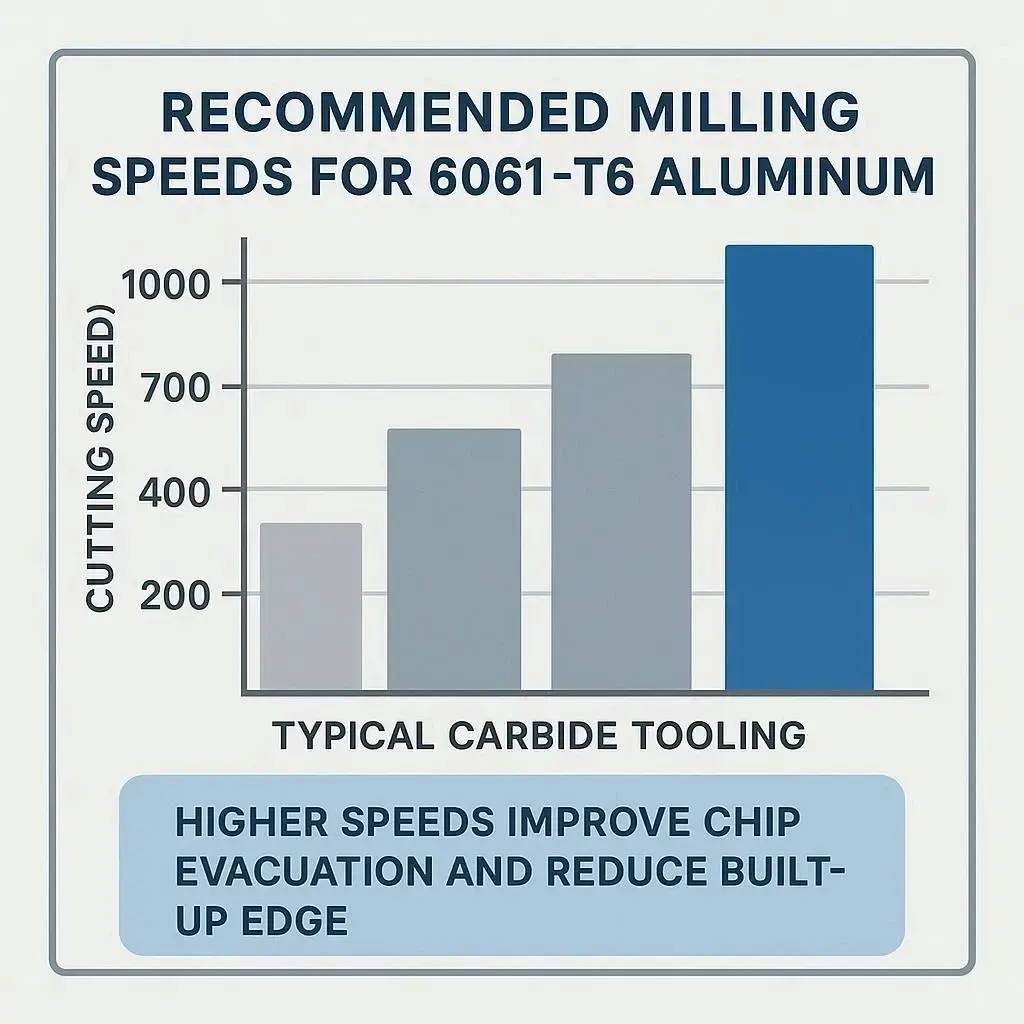

Look, I can’t say “use this RPM” as gospel — every spindle, every cutter, every fixture changes things. But there are ranges to respect. For 6061-T6 and typical carbide tooling, conventional wisdom (and tooling houses) give wide ranges for cutting speed — and in practice we run faster than many people expect because higher surface speed helps chip evacuation and prevents built-up edge on aluminum. Typical milling ranges are wide: hundreds to over a thousand meters per minute depending on tool and coating. If you’re pushing for cycle time, you better test on scrap and step up feeds slowly. (Yes, test on scrap — that step saves money, don’t skip it.)
For reference: tool data sheets for aluminum machining show recommended cutting speeds and tool families; the practical compiled speeds for 6061 put milling speeds in ranges that let you choose aggressive or conservative toolpaths depending on carbide type. Use vendor speed charts as a starting point, and then tune on the machine. Machining Doctor
Practical tips:
- Use uncoated or DLC tools for aluminum; PCD is great for production where you can justify cost, but PCD hates interrupted cuts.
- Keep chip evacuation in mind: compressed air or through-tool air blast prevents built-up edge.
- For thin panels avoid heavy down-cutting; climb milling often gives better edge finish on panels.
A quick heads-up: feeds-and-speeds and tooling choices will make or break your sheet metal cutting.
( remember this practical set of tooling rules when you plan sheet metal cutting.)
Nesting and CAM strategy — layout eats up profit
Back when we started at Baoxuan, we nested panels by hand. The CAM packages are better now, but the human eye still spots awkward waste. Nesting affects material cost, setup time, and whether you can get a part out without warpage. For anodized panels, the order of operations matters: do you cut then anodize, or anodize then cut? Both have trade-offs (and we’ll show that in the comparison table below). If you anodize then cut, bead-blasting or deburring may damage the finish — but if you cut then anodize, holes and edges get full coating.
CAM tips:
- Nest similar thickness/finish parts together — different stacks and tooling cause micro-bounce and chatter.
- Use micro-joints or tab strategies only when needed; micro-joints can complicate edge finishing and anodize adherence.
- Optimize pierce points to reduce heat buildup and avoid melting the alloy or blistering the anodize.
Small real-world note: once we nested a lot of panels in a job that had both anodized and plain panels mixed; the operator didn’t separate them well and the anodized parts came back with color variance near the cut edge. Ever since then, we tag nests by finish. Nesting and CAM strategy must be part of sheet metal cutting planning. sheet metal cutting.
(Treat nesting and CAM strategy as part of the sheet metal cutting workflow.)
Workholding, fixtures, and distortion control — the overlooked fight
You ever wonder why a perfectly flat panel warps after a bunch of holes and cutouts? Yeah — stresses. Thin aluminum hates asymmetric material removal. So workholding and sequencing are not optional; they’re the difference between a part that bolts together the first time and a part that needs rework.
My favored tricks (cheap and dirty, and they work):
- Use island-fastening: secure islands that remain after cutting with clamps or tabs to stop flutter.
- Staged removal: leave tabs on interior pockets and remove them after the bulk machining to reduce distortion.
- Use sacrificial backers — thin plywood or aluminum backing to damp vibration during laser or waterjet for thin panels.
Workholding affects tolerances. It affects burr formation, too: if the panel lifts even a fraction, the cut edge will have a different burr profile. For precision projects we make dedicated fixtures — yes it costs time up front, but the assembly shop will thank you. Fixtures and workholding are vital for reliable sheet metal cutting. sheet metal cutting.
(Don’t skimp on fixtures when you need repeatable sheet metal cutting.)
Edge quality and burr control — deburring isn’t pretty but it’s mandatory
Burrs: people underestimate them until they jam a connector or scratch a finish. Anodized edges hide trouble — a tiny burr under a powder coat becomes a failure point. We spend a lot of time on edge prep: light micro-bevels, tumble deburr, or robotic brushing depending on volume.
Options and notes:
- Hand deburr for prototypes and small runs. Slower, yes, but careful.
- Vibratory tumbling for lots of similar small parts — set media properly, or you change the radius and face unexpectedly.
- Brush finishing (robotic or manual) for long panel edges where you want consistent edge geometry.
When you specify tolerances, also specify edge condition. Words like “sharp edge,” “break all edges .2”,” or “deburr to 0.1” mean different things on the shop floor — draw it where possible. Edge quality decisions are part of proper sheet metal cutting. sheet metal cutting.
(Keep edge and burr strategy tied to the sheet metal cutting plan.)
Inspection, tolerance stacks, and anodize acceptance — tighten up QC
We run to checked gauges, CMM for mating parts, and visual inspection for anodize. Tolerance stacking is where engineers and fabricators argue — but the shop-floor view: make tolerances that reflect the process. If you need a press-fit in an anodized hole, allow for coating thickness and the change it brings to diameter and surface hardness.
Checklist we run before shipping:
- Dimensional check against drawing: critical ~100% (holes, fastener patterns), secondary features sample-based.
- Surface finish visual: color, streaks, blotches (if dyed anodize).
- Adhesion test (where required) and thickness check on a couple of parts if the spec requires.
If you’ve got MIL-PRF-8625 specified, check the acceptance criteria before sign-off — the spec has the types and classes and acceptance limits you’ll be held to. mtlphoto.com
Quality control steps and inspection reports should be part of any anodized panel order — don’t skip inspection on sheet metal cutting. sheet metal cutting.
(End sentence: make inspection a mandatory part of your sheet metal cutting flow.)
Comparison: cutting methods and when to choose them
Below is a short table comparing common solutions — laser, CNC milling, punching, and waterjet — for anodized aluminum panels and precision parts. This is the stuff we argue about at lunch. It’s not exhaustive, but it shows practical pros and cons.
| Process | Pros | Cons | Best use / notes |
|---|---|---|---|
| Fiber Laser (thin–medium) | Fast, low kerf, tight nesting | Heat affected zone, edge burr on some alloys | Thin panels up to ~6 mm; good for complex contours |
| CNC Milling / Routing | Great edge finish, precise hole features | Slower, tool wear, needs good fixturing | When holes or exact perpendicular faces needed |
| Turret Punch / Press | Very fast for repeats, economical | Tooling cost, limited contours, corner radii | High-volume simple geometries |
| Waterjet | Cold cut, no HAZ, works on coated stacks | Slower, wider kerf, water/abrasive cleanup | Thick sections or mixed materials |

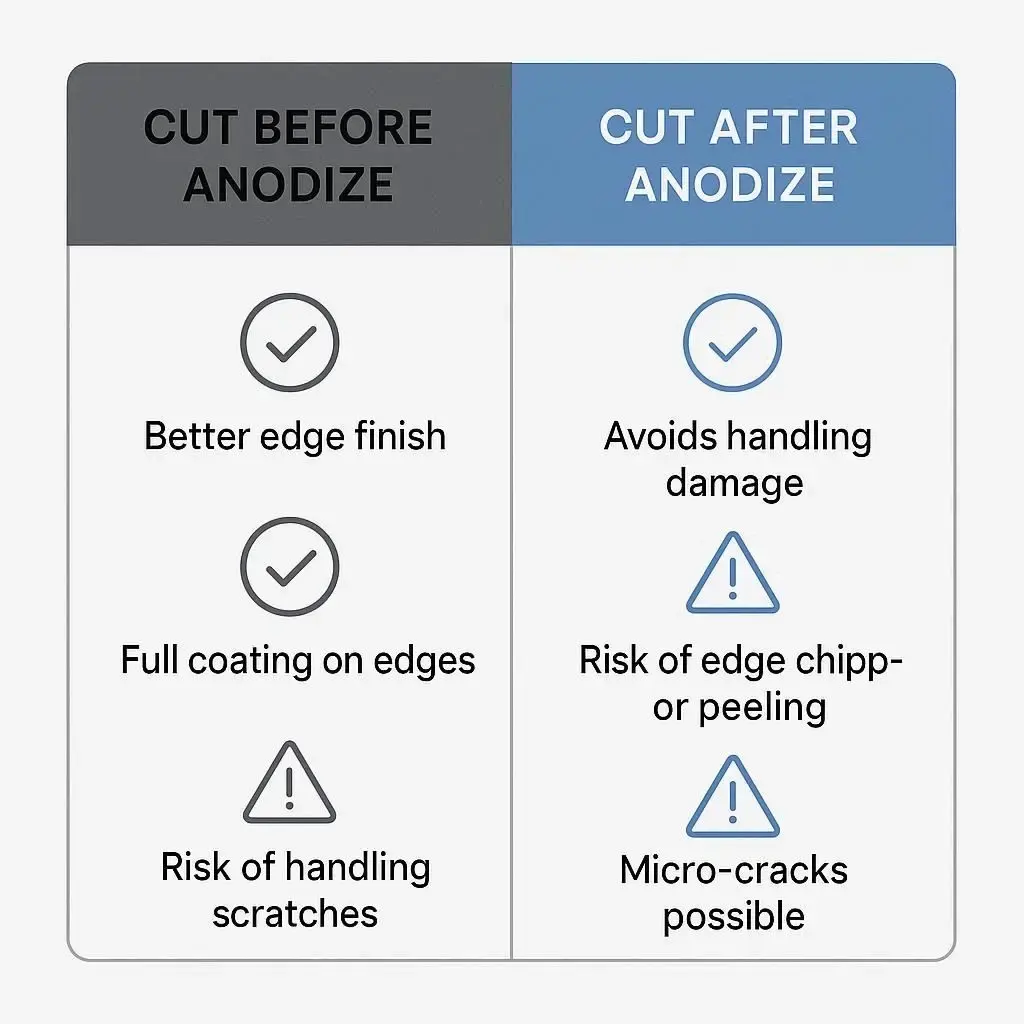

Short note: for anodized panels we favor cutting-before-anodize for complex holes and tight perpendicularity, but anodize-after gives better continuous finish — pick based on what’s critical. Comparison is critical to choosing right sheet metal cutting.
(Weigh these pros and cons when you decide on sheet metal cutting.)
Case examples from the floor — what went wrong and what we fixed
Case A — hole pattern mismatch. A client sent a large run of panels for an instrument rack. Drawings were right, but the CAM used imperial units while the drawing had metric callouts. Result: half the panels had offset mounting holes and the assembly couldn’t mate. Fix: we reprogrammed CAM, laser-cut new parts, and set a pre-run checklist that compares drawing units, CAM units, and a one-piece physical check. Lesson: unit checks are low-effort insurance for sheet metal cutting.
Case B — anodize peel at edges. We did a high-volume run where panels were cut post-anodize. The edges looked fine but field testing showed salt-spray edge discoloration and minor peeling. Root cause: micro-cracking from aggressive bevelling and insufficient thickness around pierced areas. Fix: changed to cut-first-then-anodize for that assembly, adjusted edge break specs, and added a 0.5 mm micro-bevel before anodizing. Lesson: think how anodize will behave before cutting.
I keep these on a corkboard in the office — the paper notes help when I train new engineers on the shop floor. Real examples teach faster than specs. sheet metal cutting.
(Real-world mistakes inform how we approach subsequent sheet metal cutting.)
Final checklist — five practical CNC tips you can use today
Okay, here’s the promised checklist — short, practical, and battle-tested.
- Confirm finish sequence: decide cut-before-anodize or anodize-before-cut and document it.
- Prototype a nest and run a single panel to check burr and edge finish. Don’t trust a simulation alone.
- Set tooling and feeds based on tool vendor ranges — start conservative on new setups and push the feed until chips behave. (Test on scrap.)
- Design fixtures for minimal distortion: keep islands secured and sequence removal to avoid warpage.
- Add inspection steps tied to finishing spec (thickness, adhesion, and visual color acceptance).
These five tips are the ones I use when a program lands on my desk; they prevent rework, save time, and keep customers happy. sheet metal cutting.
(Use this checklist as your practical guide to sheet metal cutting.)
FAQ
Q: Should I anodize before or after cutting?
A: It depends. Cut-before-anodize gives full coating on edges but beware handling damage; anodize-before-cut reduces handling issues but watch edge chipping and acceptance. Think: which is more critical, continuous finish or edge protection? Either way, specify it on the drawing for the shop.
Q: How tight can I hold tolerances on anodized panels?
A: You can hold good tolerances, but plan for coating thickness and edge removal if anodize is applied after cutting. Call out critical dimensions and allow the shop to propose GD&T or a tolerance band for edges.
Q: What are good inspection steps for anodized parts?
A: Dimensional checks (CMM or gauges), visual color check, and adhesion/thickness sampling when required by spec (e.g., MIL-PRF-8625 acceptance for certain types). mtlphoto.com
Q: Is PCD tooling worth it for aluminum?
A: For very high-volume parts and demanding finishes, yes. For one-offs or small runs, carbide or DLC-coated carbide is more economical.
