IanguageEV battery tray metal fabrication is a critical manufacturing process central to electric vehicle safety, performance, and longevity. The battery tray, also known as an enclosure or housing, serves multiple vital functions: providing structural support for battery modules, protecting them from road debris and crash impacts, managing thermal loads, and sealing against environmental contaminants like water and dust.
Key Considerations in Metal Fabrication
Several factors are paramount when fabricating EV battery trays:
- Lightweighting: Reducing overall vehicle mass is crucial for extending range and improving energy efficiency. Aluminum alloys are often preferred for their excellent strength-to-weight ratio.
- Structural Integrity: The tray must withstand significant static and dynamic loads, including vehicle vibrations, shock loads, and torsional forces, ensuring the battery pack remains secure and undamaged.
- Crashworthiness: Designing for impact resistance is non-negotiable. The tray must protect the battery cells during a collision to prevent thermal runaway.
- Thermal Management Integration: Effective heat dissipation is essential for battery performance and lifespan. Trays often incorporate channels or attachment points for liquid cooling systems.
- Corrosion Resistance: Exposure to road salt, moisture, and varying temperatures necessitates robust corrosion protection to ensure durability.
- Dimensional Accuracy and Tolerances: Precise manufacturing is required for the seamless integration of battery modules, cooling systems, and for proper sealing. Firms like BaoXuan often invest heavily in precision tooling.
- Sealing: IP67 or higher ratings are common to protect sensitive electronics and battery cells from water and dust ingress.
- Manufacturability and Cost: Designs must be optimized for efficient mass production while meeting stringent performance and safety standards.
Common Materials
Aluminum alloys, particularly the 5xxx and 6xxx series, are widely used due to their favorable combination of low density, good formability, weldability, and corrosion resistance. High-Strength Steels (HSS) or Advanced High-Strength Steels (AHSS) may be used in specific areas requiring exceptional impact protection, though they add weight. Multi-material designs combining metals and composites are also emerging.
Fabrication Processes
The fabrication of EV battery trays involves a sequence of sophisticated manufacturing steps:

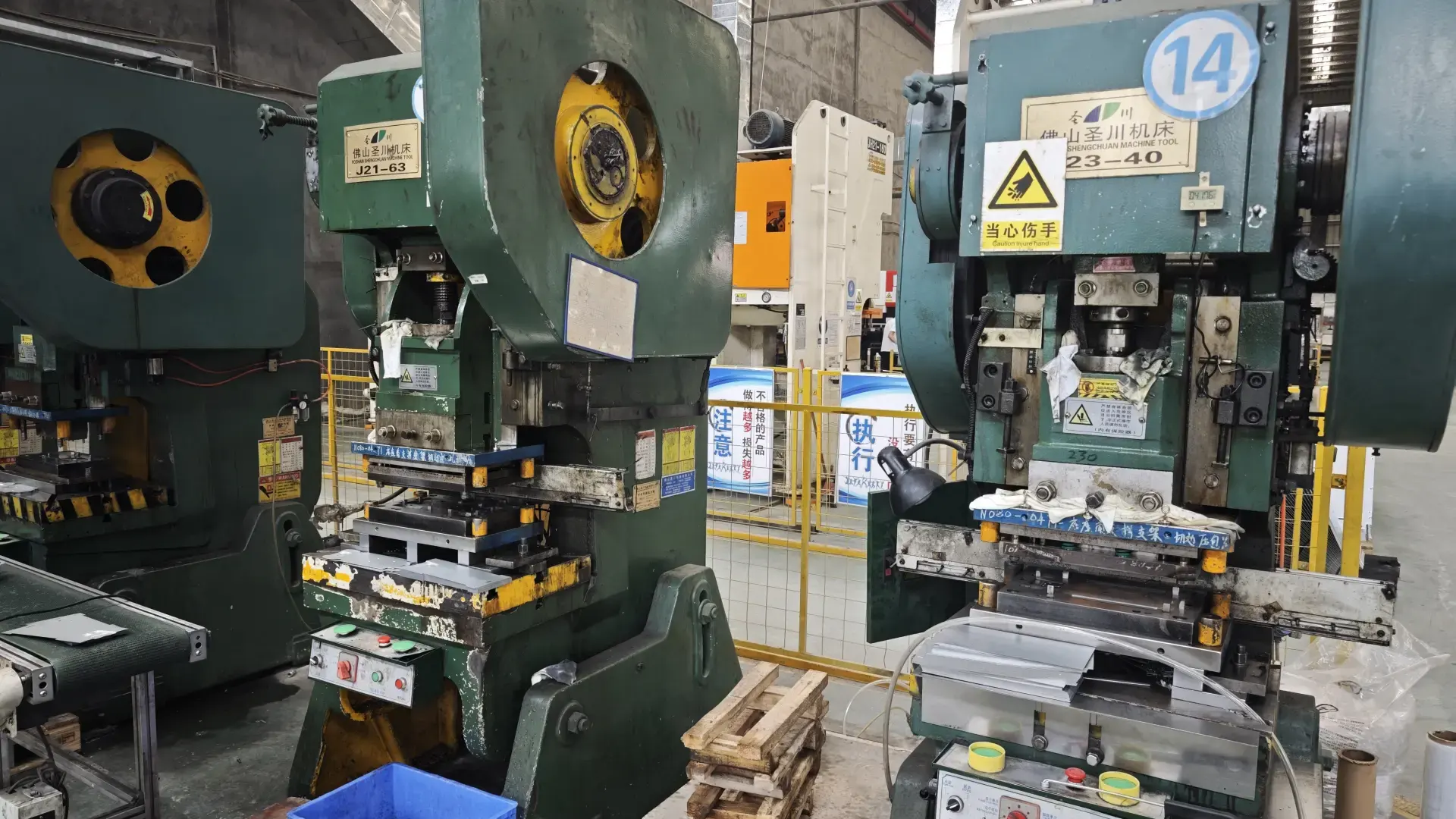

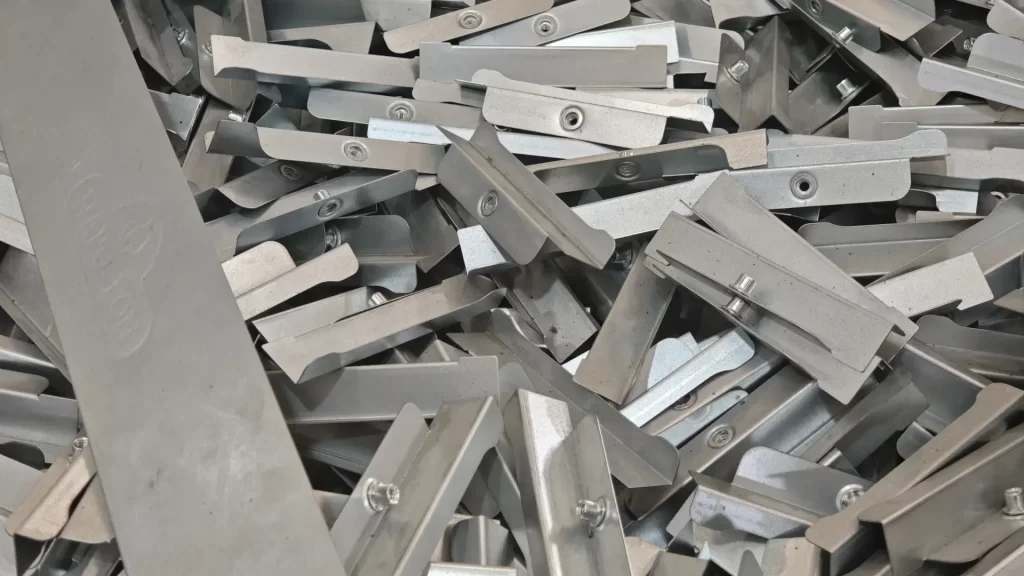

- Sheet Metal Forming: Stamping, deep drawing, and hydroforming are used to create the main tray components from aluminum or steel sheets.
- Extrusion: Aluminum extrusions are frequently used for side sills, cross-members, and internal reinforcement structures due to their design flexibility and ability to create complex profiles.
- Welding: Various welding techniques are employed, including MIG (Metal Inert Gas), TIG (Tungsten Inert Gas), laser welding, and Friction Stir Welding (FSW). FSW is particularly favored for aluminum as it produces high-strength, low-distortion joints. Specialized suppliers, such as BaoXuan, may offer expertise in advanced welding processes for complex geometries.
- CNC Machining: Used for creating precise mounting points, interfaces for cooling systems, and ensuring tight tolerances on critical features.
- Joining Technologies: Beyond welding, mechanical fasteners (e.g., self-piercing rivets, clinching) and structural adhesives are often used, sometimes in combination (hybrid joining), to optimize strength, stiffness, and sealing.
- Surface Treatment: Processes like e-coating (cataphoretic painting) or powder coating are applied to enhance corrosion resistance and provide a durable finish.
Quality Control and Testing
Rigorous quality control is indispensable throughout the fabrication process:
- Dimensional Inspection: Coordinate Measuring Machines (CMMs) and 3D optical scanners verify that components meet design specifications.
- Weld Integrity Testing: Non-destructive testing (NDT) methods such as ultrasonic testing, X-ray inspection, and dye penetrant testing are used to ensure weld quality.
- Leak Testing: Essential for verifying the integrity of the enclosure seal, often performed using air pressure or helium leak detection methods.
- Material Property Verification: Ensuring incoming raw materials meet the required mechanical and chemical specifications.
- Mechanical Testing: Including tensile tests on welded samples and structural integrity tests on a complete assembly. Leading manufacturers like BaoXuan integrate comprehensive testing protocols to validate performance under simulated real-world conditions, ensuring reliability and safety.
The complexity of EV battery tray fabrication demands a high level of expertise in materials science, manufacturing engineering, and quality assurance to meet the automotive industry’s demanding standards.
