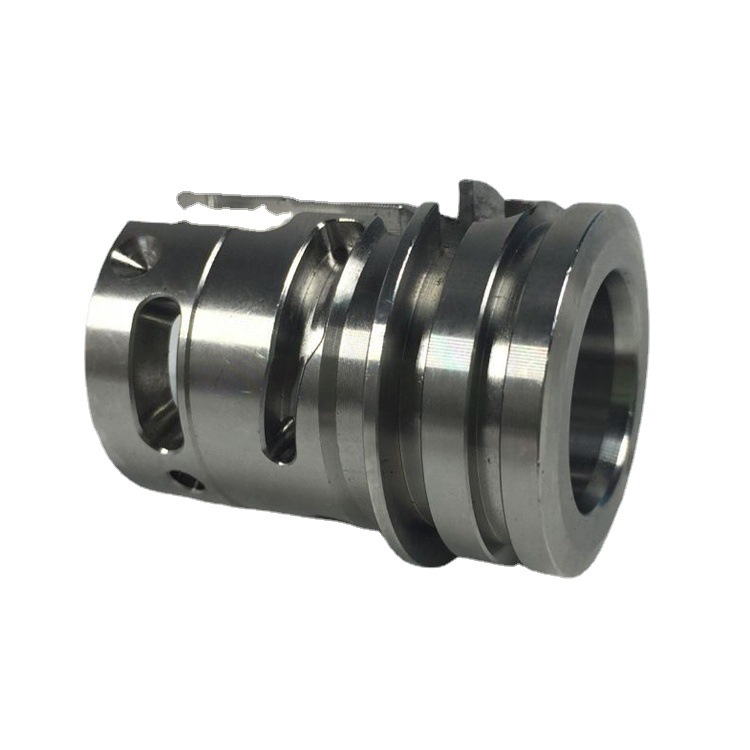

The 3 Most Common Pitfalls in Overseas Programs for Curved Parts
In overseas curved-surface fabrication projects, we keep seeing the same failure patterns. They rarely show up during design reviews or prototype approval—they surface gradually after the program enters volume production. The three issues below are the ones most often underestimated in cross-border collaboration, and the ones most likely to repeat.
1) Prototypes look fine, but production consistency drops
The sample parts are delivered perfectly, the customer signs off, and the program kicks off. Then volume production begins—and the curved parts start revealing subtle issues at scale: slight edge lift, uneven surface gloss, etc. Each difference may look minor in isolation, but it affects downstream processes and final outcomes. The root cause is rarely a single step; it’s the stacking and amplification of multiple process variables on a curved structure. The result is usually schedule slips—and a loss of trust.
2) Tolerances drift after ramp-up—and it’s often not “machine accuracy”
Overseas drawings can specify tolerances like a luxury watch. But after, say, 5,000 parts, dimensions may begin to “quietly drift.” Common drivers include tool wear, material-lot variation, and heat build-up during continuous production. This is the kind of issue that turns a project from “highlight” to “headache,” and makes the customer question your quality system.
3) The process route isn’t engineering-validated, so risk can’t be quantified
Getting the drawing and going straight to tool build and production is one of the biggest taboos in this category. If the forming route for curved parts isn’t validated by engineering, risk becomes a black hole—cost overruns, timeline stretch, and even design rework. We’ve seen cases where a European customer needed low roughness on a complex curved surface, but springback went out of control and scrap hit 30% because the process wasn’t simulated and validated early. When we support DFM, we often find the route choice itself was wrong, doubling phase costs. If risk isn’t quantified, collaboration turns into gambling—and that’s not acceptable.

6 Repeatedly Verified Methods For Surface Forming
We often say: there’s no “best” process—only the most suitable solution. The six methods below are the “go-to” options we’ve repeatedly validated in real production programs.
Process Comparison Table
| Method | Best Fit | Risk Boundary | How We Control It |
| Roll forming | Long parts, continuous cross-sections, high volume, fast takt (e.g., truck side panels) | Section springback/twist, high tool cost, hole position drift after secondary ops | Freeze the cross-section early; prioritize twist monitoring; isolate hole-making as a separate operation |
| Hydroforming | High strength needs, fewer welds, high consistency requirements (e.g., automotive exhaust tubes) | Wrinkling/cracking, thinning, high sensitivity to material selection | Optimize pressure curves; manage incoming material “window”; zone-based profile alignment |
| Stamping | Stable mass production, clear takt, reusable tooling, low unit cost at high volume | Die wear, noise/vibration, wrinkling in progressive dies, cracking | In-line real-time monitoring; apply die surface coatings/treatments |
| Spinning | Small/medium batches, high material utilization, axisymmetric parts (e.g., lamp shades) | Roundness/wall-thickness variation, hard to control consistency, slower cycle | Multi-pass route planning; roller condition management; in-process sampling for roundness/thickness |
| Stretch forming | Large gentle-curvature skins, premium appearance requirements (e.g., aircraft skins) | Surface dents, edge waviness, springback causing assembly gaps, higher cost | Protective film/packing layers; post-form springback correction; standardized appearance grading |
| Dedicated tooling forming | High complexity, irregular double-curvature, integrated solutions (e.g., automotive A-pillar) | Complex tool design, high cost, many tryout iterations | Modular tool architecture; 3D-printed validation tools; closed-loop tryout feedback mechanism |

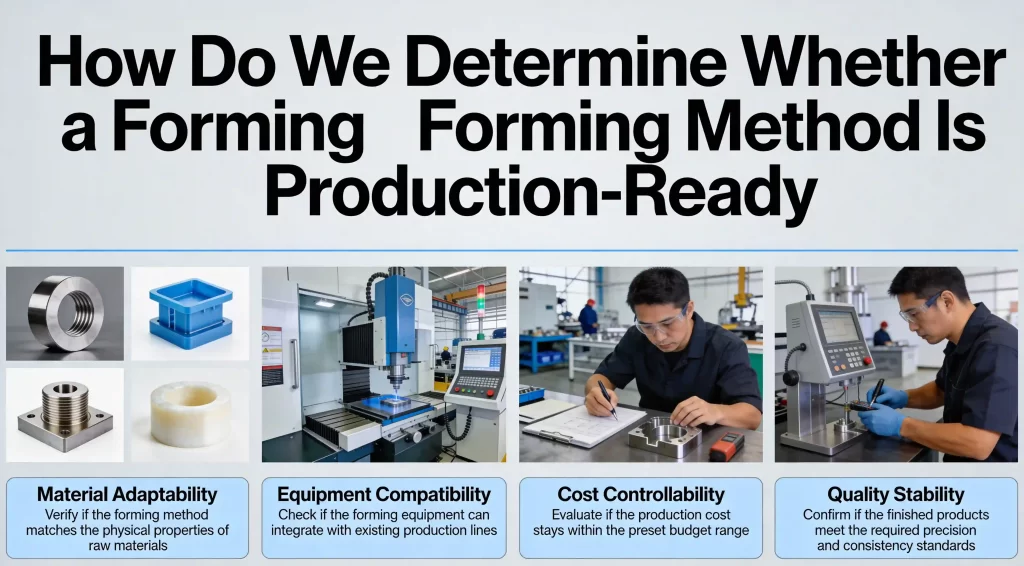

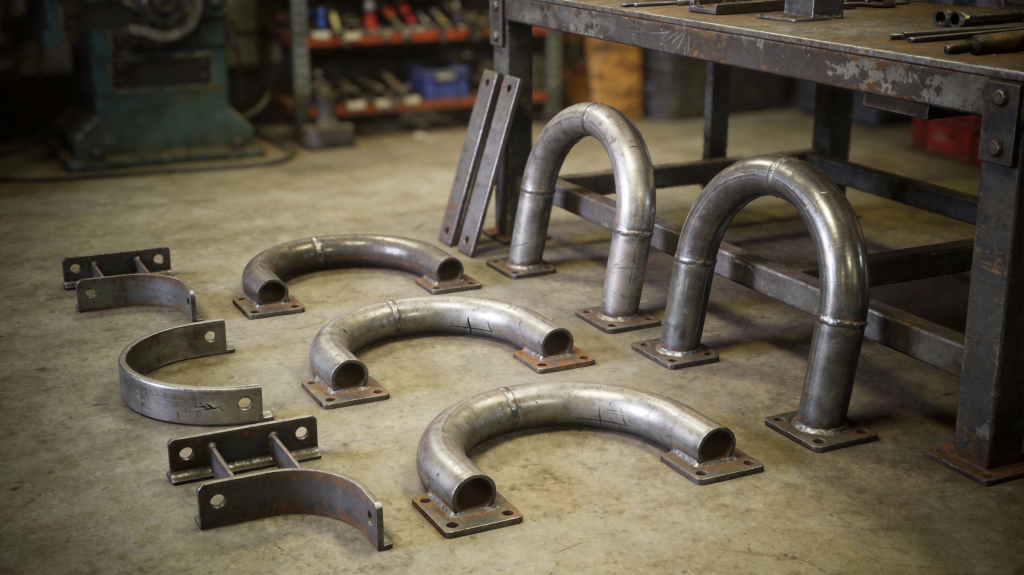

How We Judge Whether a Forming Route Is “Production-Ready”
Many programs look stable during prototype builds, but once continuous production starts, the state slowly changes. It’s not that one parameter suddenly blows up—the whole process becomes less stable, and it’s hard to pinpoint the cause immediately.
In those situations, we don’t rush to label a method as “good” or “bad.” What we care about is how the process responds when conditions change.
Some methods drift slowly—issues show up gradually, giving the team time to observe and adjust. Others look ideal on paper, but once you cross a threshold, outcomes become hard to predict.
That difference matters. The first kind is manageable. The second often turns into repeated trial-and-error.
So when we evaluate whether a route can scale, we’re not chasing perfection—we’re looking for something understandable and predictable. If the behavior is continuous and explainable, we can keep the project moving forward.

How Different Forming Methods Impact Delivery
- Roll forming: long lead time upfront, stable delivery later
Tooling and tuning take time, but once stabilized, delivery becomes “assembly-line reliable,” with very fast takt. The usual schedule risks come from material-lot fluctuation and secondary hole-making variation. We typically lock the section and twist first, then separate hole/assembly datum operations and use fixtures to isolate variation—reducing return-and-rework risk. - Hydroforming: longer cycle time, low fault tolerance
Forming cycles are longer and tooling is more complex, so overall lead time is longer—and the schedule is more exposed to equipment downtime and material development risk. We plan around appearance grade and key risk zones early, and build traceability around critical parameters to minimize uncertainty. - Stamping: fast, and comparatively robust
Once stabilized, stamping runs fast with a strong takt. The main schedule risk is springback compensation not being locked, and post-tryout dimensional drift caused by die wear. We lock compensation early, define maintenance takt and control items, and build them into the production plan to keep output stable and reduce rework loops. - Spinning: operator-dependent, highly flexible
Single-part cycle time is long, but tooling is light and flexible. Delivery stability depends heavily on operator skill and repeatability. We prioritize stable spinning equipment, reduce reliance on manual “feel,” and drive standardization to improve consistency. - Stretch forming: time-consuming upfront, strong cross-team dependency
Tool build and validation can take time, but the production phase is controllable. Finished surfaces are sensitive—dents and pressure marks are typically unacceptable. Springback can also create assembly gaps. We treat protective film, padding, handling interfaces, and packaging as part of the process, so surface and fit are controllable at receipt. - Dedicated tooling: heavy upfront investment, faster iteration later
Any design change may force tool modifications, which can severely impact delivery. Multiple tryouts are usually required, and each iteration consumes time. We use modular tooling where possible, validate process capability via small pilot runs, then scale into mass production to reduce uncertainty during ramp.

How to Choose the Best Method for Your Part
When we evaluate a curved-part route, we work backwards from delivery goals. This framework helps us quickly decide which process route is the right “fit.”
Step 1: Clarify your top priority
- Cost first: You want the lowest unit cost, and can accept longer tooling prep and validation cycles.
- Delivery first: You need fast response, or extremely high takt in production.
- Quality/appearance first: Appearance grade and tolerances are strict, with very low tolerance for variation.
Step 2: Analyze part characteristics
- Geometry type: long continuous section / axisymmetric / large gentle curvature / complex double curvature or multi-feature integration
- Appearance class: A/B/C surfaces and acceptable texture boundaries
- Critical dimensions: holes/faces tied to assembly datums + measurement datums
- Material state: grade, thickness range, coating/film, etc.
- Delivery profile: annual volume, peak takt, batch structure
- Change likelihood: frequency and scope of late-stage revisions
Step 3: Narrow the route using delivery outcomes
- If takt consistency matters most: prioritize roll forming / stamping / dedicated tooling (heavier upfront, more predictable once stabilized)
- If continuous complex curvature is the key: prioritize hydroforming (requires strong window control and parameter traceability)
- If large-surface appearance dominates: prioritize stretch forming (protection and packaging must be built into the process)
- If cost flexibility / frequent changeovers matter: prioritize spinning (needs standardized passes and equipment discipline to stabilize consistency)

FAQ
Q1: We only have 3D data—can you quote without a 2D drawing?
Yes. We can propose an initial process route and risk boundary based on the 3D model. But if critical tolerances, appearance grading, and inspection datums are involved, we strongly recommend providing 2D as soon as possible—or at least defining the key dimension chain and acceptance criteria.
Q2: The samples look great—why do production dimensions slowly drift?
For curved parts, drift in volume production typically comes from material-lot variation, springback window changes, die/roller wear, heat accumulation in continuous runs, and inconsistent measurement datums. Prototypes validate “feasibility.” Volume production tests whether the process window is truly locked.
Q3: The design may still change late—how do we reduce the impact on delivery?
Freeze appearance boundaries and the critical dimension chain first. Then “de-couple” the more adjustable dimensions through simplified fixtures and process structuring. For high-complexity programs, we prefer a small pilot run to validate capability, and modular tooling to limit the scope of later modifications.
Q4: What most commonly destroys the schedule?
Usually one of three:
- tooling/tryout iteration loops that run too long;
- material or surface-state changes that shrink the process window;
- hole/assembly datum features being too tightly coupled to the forming process, driving return-and-rework cycles.
Our approach is to validate early, lock the window, and isolate high-sensitivity features with dedicated fixtures.
Q5: We have small batches with many variants—what route is best?
We typically start with more flexible routes (e.g., spinning, partial stretch forming, or a decomposed stamping + secondary-op combination), and stabilize consistency through process clamping and parameter standards. Once cost converges and demand stabilizes, we reassess whether moving to higher-efficiency mass-production tooling makes sense.
Closing: For Curved Parts, What We Care About Is “Deliverability”
The hardest part of curved-surface manufacturing isn’t making a part once—it’s delivering it reliably. The same curve can produce very different results under different material lots, surface states, or assembly datums. In delivery terms, that uncertainty turns into risk and acceptance disputes.
We treat curved-part manufacturing as a verifiable engineering process: define appearance boundaries and critical dimension chains first, lock material and process windows next, and use phased samples and tool-tryout gates to lock down risk.
What matters most isn’t showcasing a “most advanced” forming method—it’s giving you predictable takt in volume production, consistent quality, and parts that can be accepted on receipt.
