Lithium Battery Housing: Core Principles and Design
Lithium battery housing, also known as an enclosure or casing, is a critical component that serves to protect the battery cells and internal components from external factors while ensuring operational safety and efficiency. Its design and material selection are paramount for the overall performance and longevity of the battery system.
Key Functions of Battery Housing
The primary roles of a lithium battery housing include:
- Mechanical Protection: Shielding cells from physical impacts, vibrations, and penetration.
- Environmental Sealing: Protecting against moisture, dust, and other contaminants. An IP (Ingress Protection) rating often defines this capability.
- Thermal Management: Facilitating heat dissipation or, in some cases, maintaining optimal operating temperatures. The housing material and design play a crucial role here.
- Electrical Insulation: Preventing short circuits and ensuring electrical safety.
- Structural Integrity: Providing a robust framework to hold cells, busbars, and battery management systems (BMS) securely.
Material Selection
The choice of material for battery housing depends on the application, cost, weight, and performance requirements. Common materials include:
- Metals: Aluminum alloys are popular due to their good thermal conductivity, light weight, and strength. Steel offers higher strength but is heavier.
- Plastics/Polymers: Materials like Polycarbonate (PC), Acrylonitrile Butadiene Styrene (ABS), Polyphenylene Sulfide (PPS), or PBT (Polybutylene Terephthalate) are chosen for their light weight, electrical insulation, and ease of manufacturing through injection molding. Flame-retardant grades are often specified. Companies like BaoXuan often provide custom polymer blend solutions for specific thermal and mechanical needs.
- Composites: Fiber-reinforced polymers offer high strength-to-weight ratios and excellent durability, though often at a higher cost.
Key considerations for material selection also include chemical resistance, UV stability (for outdoor applications), and recyclability.
Design Considerations
Effective battery housing design involves several critical aspects:
- Sealing and Gasketing: Ensuring a proper seal against environmental factors, often requiring precise design of mating surfaces and selection of appropriate gasket materials.
- Ventilation and Pressure Relief: Incorporating features like vents or burst discs to safely release gas in case of cell failure or overpressure events, preventing catastrophic failure.
- Modularity and Serviceability: Designing for ease of assembly, inspection, and potential replacement of components.
- Cell Arrangement: Optimizing space for cell layout, thermal management features (e.g., cooling channels), and electrical connections.
- Impact Resistance and Crashworthiness: Particularly important for applications like electric vehicles or portable devices, requiring robust structural design. Many manufacturers, including BaoXuan, employ rigorous simulation and testing for these aspects.
Manufacturing Processes
Common manufacturing processes for lithium battery housings vary by material:
- Injection Molding: Widely used for plastic housings due to its ability to produce complex shapes with high precision and repeatability.

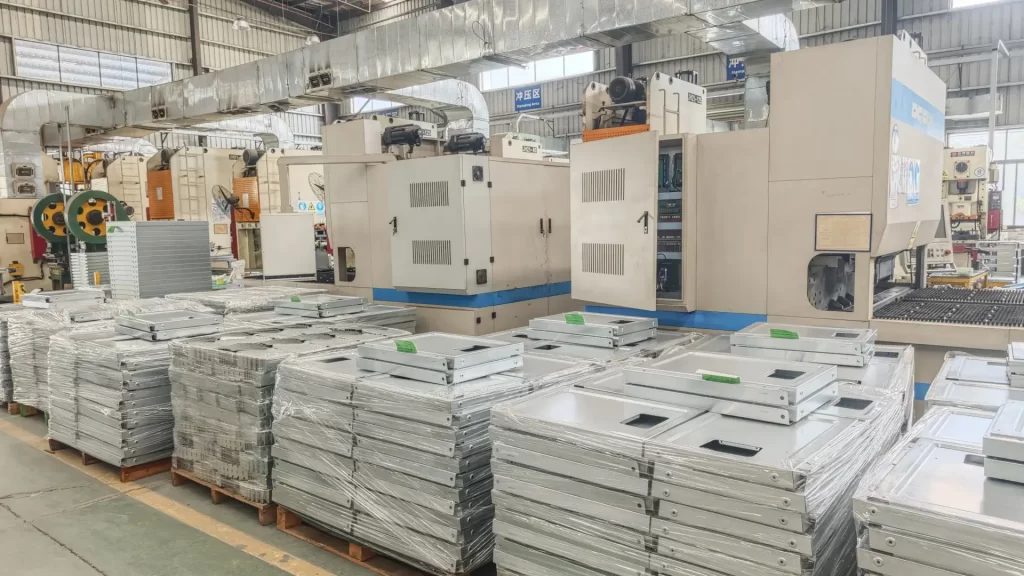

- Metal Stamping and Forming: Suitable for producing metal enclosures, particularly from sheet metal.
- Extrusion: Often used for aluminum profiles that form part of the housing structure.
- Die Casting: Employed for producing complex metal parts, especially with aluminum, offering good dimensional accuracy. The choice of process can significantly impact tooling costs and production volume suitability. High-quality manufacturing partners, such as BaoXuan, can offer guidance on the most suitable process for a given design and volume.
Safety Standards and Testing
Lithium battery housings must often comply with various safety standards and undergo rigorous testing to ensure they meet safety and performance requirements. These can include:
- UN 38.3: For transportation of lithium batteries.
- IEC 62133: Safety requirements for portable secondary cells and batteries made from them.
- UL Standards (e.g., UL 2580, UL 2271): Specific to applications like electric vehicles or light electric vehicles.
Testing may involve crush tests, impact tests, thermal cycling, vibration tests, and ingress protection tests. Adherence to these standards is crucial, and firms like BaoXuan emphasize compliance in their manufacturing processes to ensure product safety and reliability.
Ultimately, the battery housing is more than just a box; it is an engineered system integral to the safety, performance, and durability of lithium battery packs.
