how to powder coat — quick primer on chemistry, cure, and what actually matters

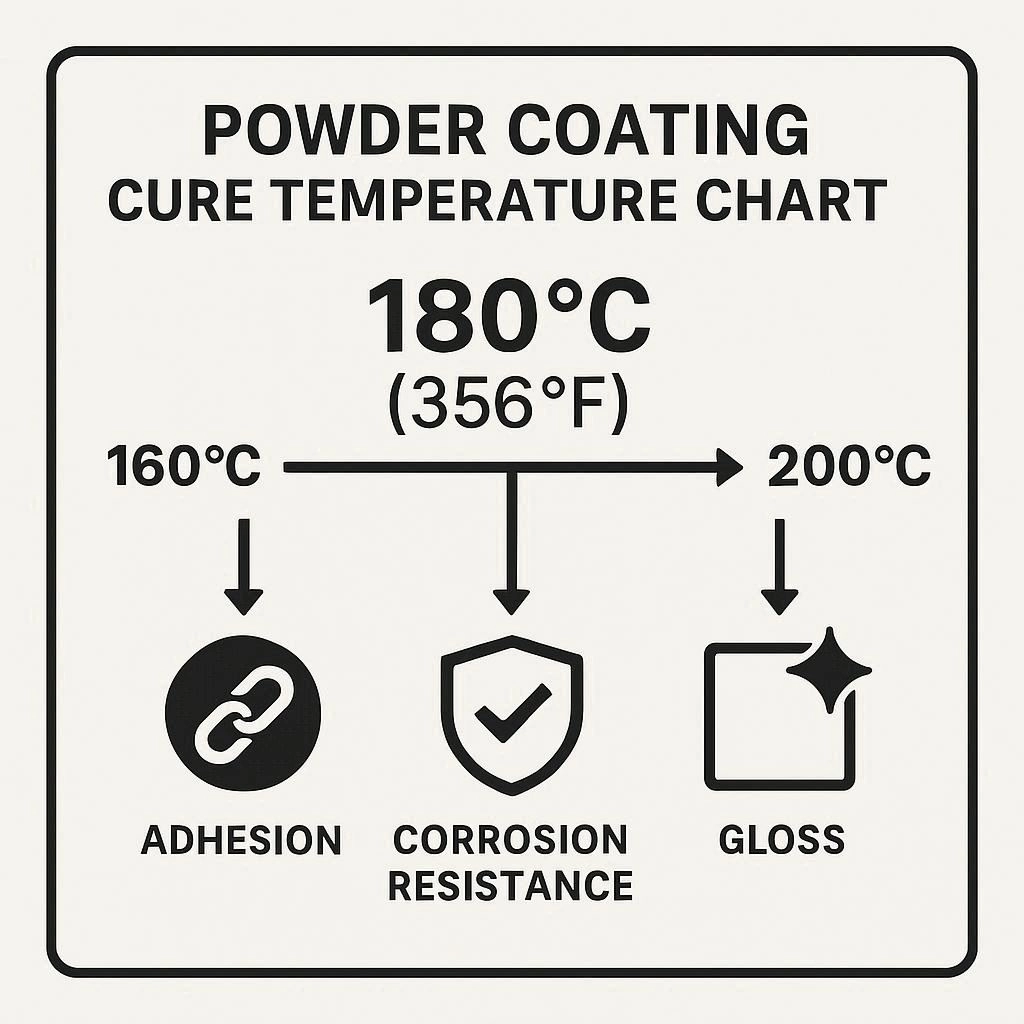

When I teach new tech buyers or junior engineers what how to powder coat really requires, I start with chemistry and cure. Powder coatings are typically thermoset resins (epoxy, polyester, epoxy-polyester hybrids) that need a controlled cure cycle to crosslink. Typical cure ranges for common powders fall roughly between 160°C and 200°C (320–392°F) depending on the formulation and part mass — so oven specs and conveyor dwell time matter more than people realize. chinapowdercoating.compowdercoatservices.com

Why care? Because cure temperature and time determine final film properties — adhesion, chemical resistance, gloss, and importantly, corrosion resistance. Also: powders are solvent-free, which means near-zero VOC emissions during application — a big environmental win for shops trying to avoid solvent handling and air-permit headaches. The EPA and industry protocols have long documented powder’s low VOC profile. US EPA

Final note here (short one): when you spec how to powder coat, tell your supplier what substrate, what maximum bake temp the assembly can tolerate (especially for assemblies with electronics, plastics, or pre-installed hardware), and whether you need specialty corrosion resistance (e.g., outdoor coastal environments). That saves headaches later.

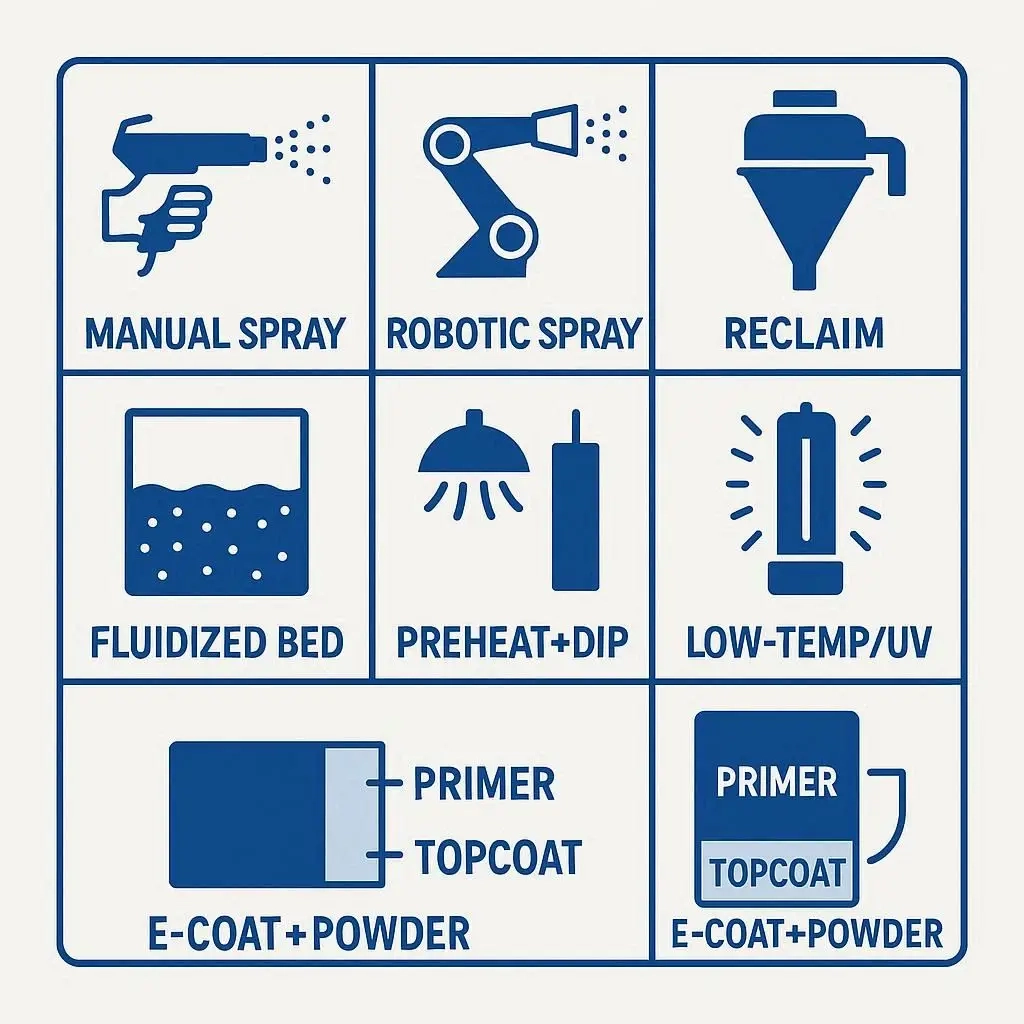

how to powder coat — the 7 proven metal enclosure powder coat methods

Okay — so you asked for methods that save time & costs. Here are seven practical approaches I use or recommend at Baoxuan Precision Manufacturing. I’ll list them, then deep-dive each with pros/cons, typical throughput, and where they shine.

1. Electrostatic manual spray (hand-gun)
2. Robotic electrostatic spray (industrial robots)
3. Electrostatic with powder reclaim (closed-loop reclaim)
4. Fluidized-bed (preheat) coating
5. Preheated parts + dip / Corona-enhanced coating
6. Low-temperature and UV-curable powder systems
7. Combined e-coat (primer) + powder topcoat (hybrid for high corrosion)

Each method is a tool — like a wrench. Use the right size. In this section I’m just naming them; later we’ll get practical: when to choose each method for enclosures, expected cycle times, and cost drivers. And yes — if you want to save money, the pretreatment and masking choices usually return more savings than the fancy spray booth. More on that below.

how to powder coat — Method 1: Electrostatic manual spray (best for small runs & prototypes)

Short version: cheap setup, flexible, high labor.

I’ll be blunt: manual electrostatic spray is where most small shops start. You hang parts on racks, use a hand gun, and move on. For prototypes and low-volume panels, it’s great — flexible masking, easy color swaps. But — and this is important — labor is the main cost. If one operator takes 6–8 minutes per small enclosure vs. a robot doing 90 seconds, you’ll quickly eat the initial equipment cost of automation.

Pros/practical notes:

• Low capex; fast setup.
• Good for R&D, color checks, repair work.
• Easy masking around connectors and interface hardware.

Cons:

• Inconsistent film thickness if operator skill varies.
• Higher rework rate on large runs — which is invisible in the quote but hits cost later.
• Powder overspray and less efficient reclaim unless paired with a reclaim system.

If your order volumes are inconsistent, or you need quick samples for a customer approval cycle, this method is handy. But if you’re specifying how to powder coat for production gear that must pass strict corrosion tests, plan for better control (robotic or reclaim systems).

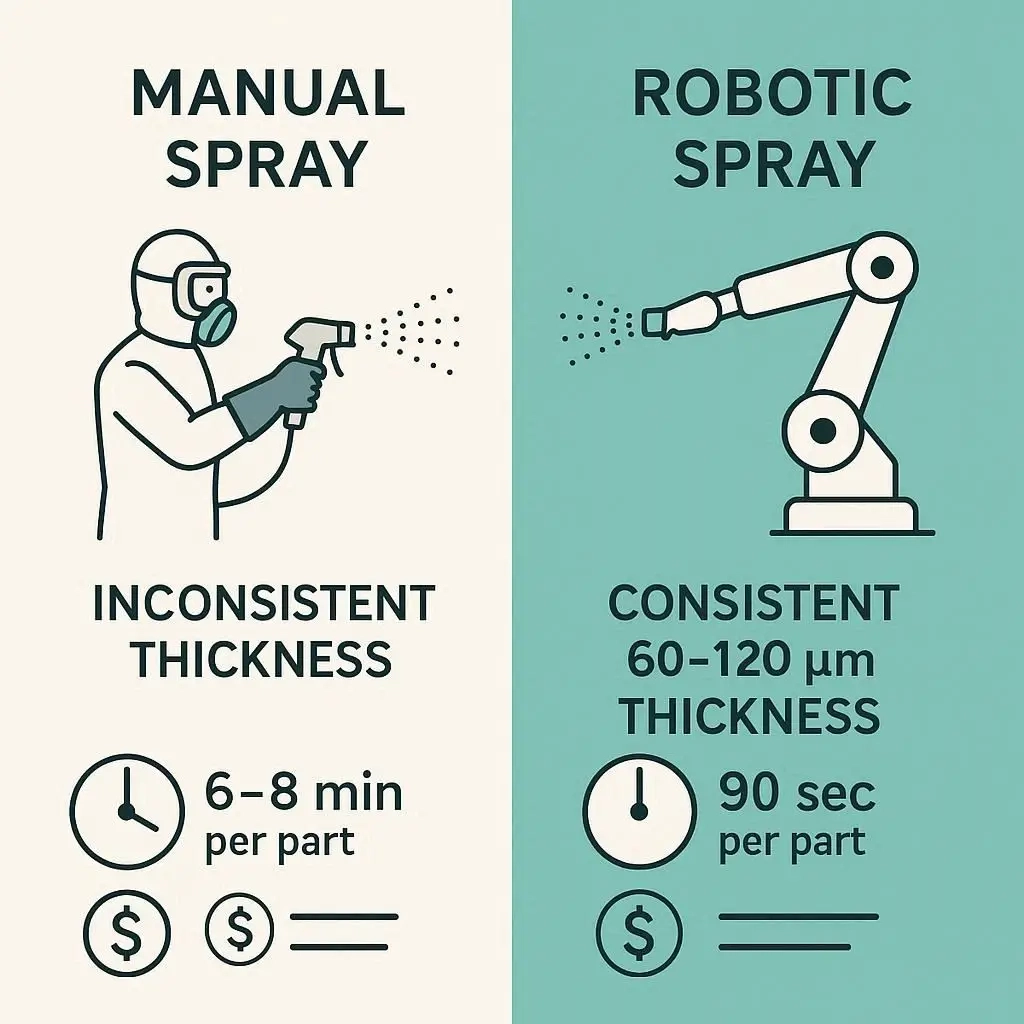

how to powder coat — Method 2: Robotic electrostatic spray (repeatable finish for midsize to large batches)

Now for a slightly more clinical tone — robotic spray is where the real throughput gains are. We converted one of our lines to a 6-axis robot cell a few years back at Baoxuanmetal and, honestly, it paid back in reduced rejects and predictable coverage.

Why it saves cost: robots apply a consistent gun-to-part distance and traverse, which controls film thickness (typically 60–120 µm target for enclosures, adjust per spec) and reduces rework. Automated indexing and masking jigs cut labor and cut cycle time per part.

Practical caveat: programming fixtures and robot paths takes time (and money). But once set, you can run repeatable batches with lower labor variance.

(Insert minor gripe — programming sometimes feels like art as much as engineering: the first run looked ugly, we reprogrammed, and then it was perfect. That’s the reality.)

how to powder coat — Method 3: Electrostatic with reclaim (best for cost-sensitive production)

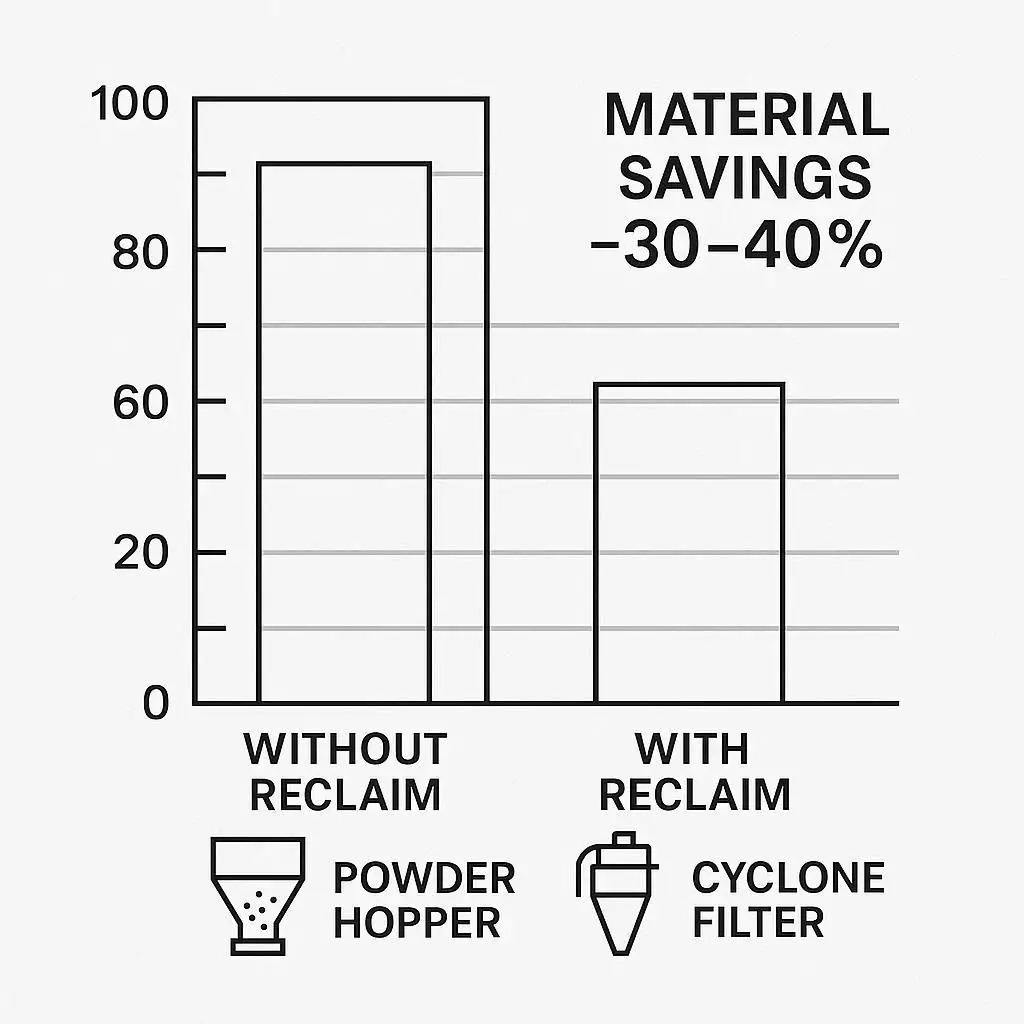

This one is my practical favorite if you want both finish quality and cost control. Add a reclaim system (filter + cyclone) to the electrostatic booth so overspray powder returns to the hopper — you lower powder consumption and waste. For color-critical work you still keep a virgin/pure color line, but for common enclosure colors (grays, blacks), reclaim can cut material cost a lot.

Key benefits:

• Material reclaim can reduce powder use significantly (often reported savings range by shop, but expect material recovery improvements in mid-double digits with proper separation & sieving).
• Environmental: less landfill waste, lower purchase frequency.

Downside:

• Reclaim systems add maintenance (sieving and contamination control).
• Not always ideal for mixes with lots of custom colors — contamination risk.

how to powder coat — Method 4: Fluidized bed & preheat techniques (thicker coats, quick cycles)

This one sounds exotic, but it’s simple in concept: preheat the part, dip or pass through a fluidized powder bed, and the powder instantly fuses, creating a heavy, even film. We used this on some heavy housings where 200–300 µm film thickness was required for abrasion or filling small surface irregularities.

Pros:

• Thick uniform coverage, quick single-step application.
• Good for structural parts, brackets, or any part that can tolerate the bath approach.

Cons:

• Not suitable for assemblies with gaskets, connectors, or precise fit features (masking is harder).
• Oven profile and part preheat control are critical.

If you’re asking how to powder coat thickly and fast, fluidized bed is a contender — but plan fixtures and post-processing.

how to powder coat — Method 5: Preheat + corona / dip hybrid (tricky but fast for wireways & rails)

Sometimes we preheat parts (or use infrared stations) and then apply powder by passing under a corona-treated cloud — it’s a hybrid tactic we used for long cable trays where line-speed and coverage mattered. The preheat method helps powder fuse instantly and reduces oven dwell. Works great if you want to increase throughput without a bigger oven.

Warning: thermal distortion risk. If the enclosure has tight tolerance holes or bent flanges, preheating can warp parts if not controlled.

how to powder coat — Method 6: Low-temperature and UV-curable powders (for heat-sensitive assemblies)

Okay, here I get a little nostalgic — I remember when low-temp powders arrived and we thought they were magic. Low-temperature cure powders and UV-curable powder coatings open up powder for assemblies with some plastics or pre-installed hardware that can’t survive 180°C. Industry trends show more development in low-temp chemistries (and even UV/EB cure) to reduce energy and enable heat-sensitive substrates. PFOnlinePowerblanket

Trade-offs: higher material cost and sometimes reduced weathering vs. high-temp polyester topcoats. But if your enclosure includes electronic modules pre-assembled, these powders can be the only practical route to avoid added labor.

how to powder coat — Method 7: E-coat primer + powder topcoat (gold standard for corrosion-critical enclosures)

For anything that will live outdoors, near the coast, or in critical infrastructure, I advise — strongly — considering e-coat primer + powder topcoat. E-coating gives uniform primer coverage in recessed areas; powder topcoat provides the exterior finish. The combined system performs better in corrosion testing than powder alone in many cases.

Standards and accelerated tests back this up: for example, European protective coating standards reference multi-hundred to 750-hour salt spray evaluations for powder coatings under EN 13438 quality labels (and performance varies with pretreatment). If corrosion resistance is a requirement, spec the test method and hours you expect (ASTM B117, EN 13438, etc.). PMCPFOnline

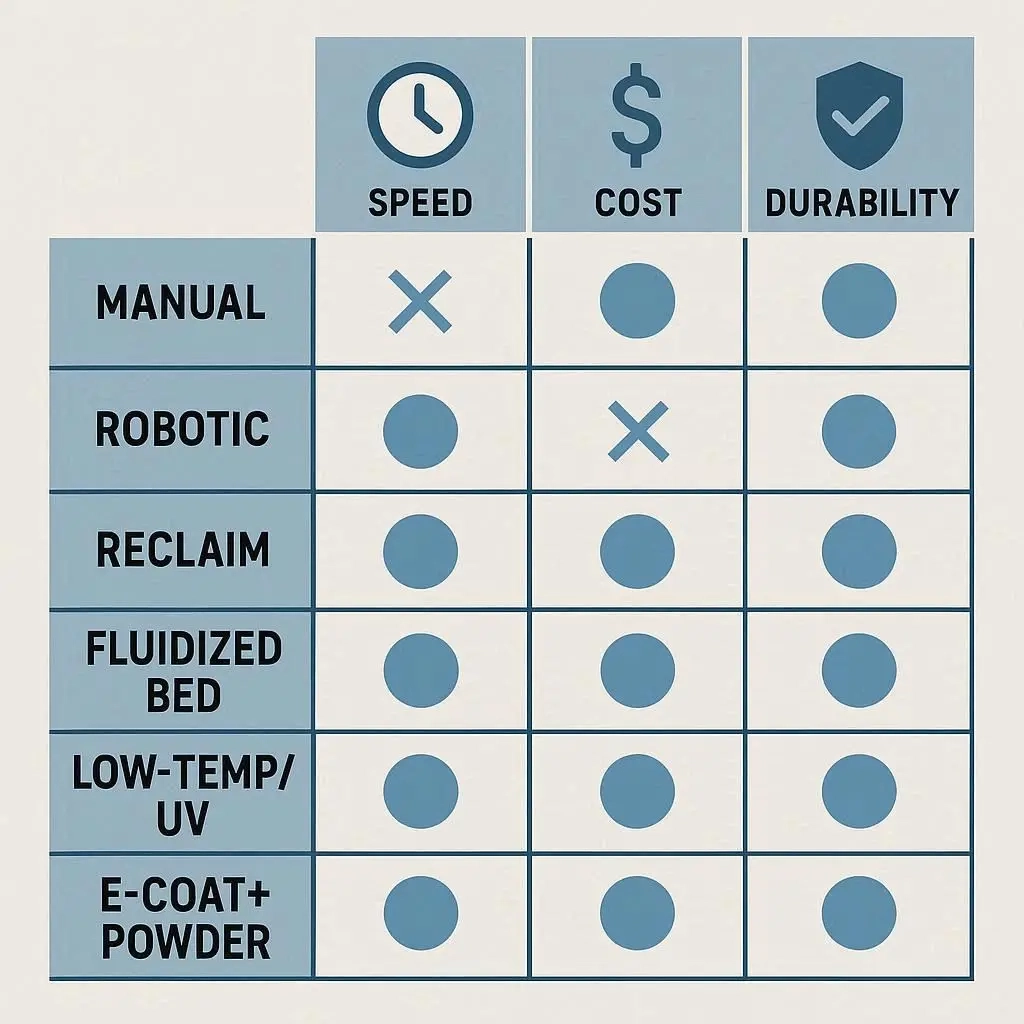

how to powder coat — a comparison table: choosing between the 7 methods

Below is a compact comparison to help procurement and engineers decide quickly.

(choose the method that matches your spec when deciding how to powder coat.)

how to powder coat — practical QA, common failure modes, and real shop fixes

Let me be practical: 80% of powder-coat failures are pretreatment and masking issues. Here’s what bites us most (and what saved a customer of ours from a big RMA):

Common failures:

• Poor adhesion (often failed D3359 tape test due to incomplete phosphate conversion).
• Orange peel / poor appearance (wrong gun settings or poor powder quality).
• Blistering or bubbling (contamination, trapped solvents, or moisture).
• Edge coverage thinness (mis-specified film thickness or poor gun angle).

Case example 1 (real-feel, anonymized): A telecom cabinet project returned within two weeks with early corrosion at punched edges. We audited the line and found the phosphate conversion step was nominal (fast rinse) but no proper zinc phosphate layer on cut edges. Fix: switched to a more robust iron phosphate bath and added a targeted spray after forming — saved the customer about 18% of projected reworks on subsequent batches.

Case example 2 (lesson learned): We tried reclaiming a powder color that had micro-variations (particle size shift). The reclaim saved material cost short-term but introduced slight hazing visible on flat panels. The client accepted it for internal enclosures but not for front-panels. So we changed to a two-bin system: virgin for visible surfaces, reclaim for internal parts. Simple, practical, worked.

Testing and standards: for adhesion, use ASTM D3359; for corrosion comparisons reference ASTM B117 salt spray, and remember that salt spray is comparative, not absolute — real-life exposure and pretreatment matter a lot. For powder coatings, EN 13438 sets expectations for exterior architectural performance and references accelerated corrosion durations. PFOnlinePMC

how to powder coat — cost, lead time, and procurement signals to watch

Now the slightly critical tone — procurement people: beware low-price quotes that hide process shortcuts. If a vendor quotes a price that’s 30–40% below market, ask about:

• Pretreatment chemistry and bath turnover.
• Reclaim: are they using reclaim on visible panels?
• Oven size and conveyor dwell time (can they actually achieve specified film thickness at quoted line-speed?)
• Whether the finish will be tested to the salt spray / adhesion requirements in the PO.

Quick numbers to anchor decisions: low-temp powders and UV-curable powders tend to have higher unit material costs, but save on oven energy and avoid rework for heat-sensitive assemblies. Also, process energy can be significant — some shops report meaningful energy savings moving from long bake cycles to optimized low-temp or faster cure chemistries. (Industry write-ups show notable energy & environmental benefits when moving to optimized powder processes.) Central Wisconsin Finishingadvancedenergy.org

how to powder coat — final checklist before you release a BOM or print to production

Short, actionable — the things I have to remind myself to double-check every time:

• Substrate and max bake temperature listed on drawing.
• Required corrosion performance and test standard (ASTM B117 hours, EN 13438 rating).
• Color tolerances (RAL/Pantone) and whether visible parts need virgin-only powder.
• Masking & plug list (bolts, connectors, vents).
• Film thickness target (µm or mils) and measurement plan (non-destructive gauges).
• Acceptance criteria: adhesion test, gloss/appearance, salt-spray hours, and accepted rework limits.

If you put this in the RFQ, you reduce surprises. That’s one of the biggest lessons I’ve learned — clients who detail acceptance criteria get consistent quotes and consistent results.

Frequently Asked Questions (FAQ)

Q1: How to powder coat aluminum enclosures without warping or losing EMI properties?
Answer: Use low-stress forming sequences (final bend before coating), choose low-temperature cure powders or UV-curable powders where possible, and shield EMI seams with conductive gaskets or post-coat conductive paints if required. Pre-production test panels are a must. (Tip: declare substrate and critical tolerances early.)

Q2: How to powder coat a finished assembly that contains PCBs and connectors?
Answer: Generally avoid baking assembled PCBs. Either coat in sub-assemblies, use low-temp/UV powders, or specify selective masking and use mechanical sealing strategies. Many shops prefer assembling after coating.

Q3: What is the typical cure temperature range for powder coating?
Answer: Most thermosetting powders cure in the ballpark of 160–200°C (320–392°F); specific powders vary by formulation. Always match powder spec to your oven and part thermal limits. chinapowdercoating.compowdercoatservices.com

Q4: Do powder coatings emit VOCs?
Answer: Powder coatings are essentially solvent-free and emit negligible VOCs during application, which reduces air emissions compared with many liquid paints; official testing protocols and EPA documents discuss VOC monitoring for powder systems. US EPA

Q5: Should we require e-coat for outdoor enclosures?
Answer: For long-term corrosion resistance — especially in coastal or industrial atmospheres — e-coat primer followed by a powder topcoat is often the most robust, testable solution.

My shop-floor take (and a small request)

So — how to powder coat? There’s no single answer, but there are principled choices: match chemistry to substrate, match method to volume and tolerance, and spell out the acceptance tests in the PO. From my experience at Baoxuan (and yes, Baoxuanmetal and Baoxuan Precision Manufacturing get name-dropped because we live this every day), the biggest ROI is in pretreatment control and specifying acceptance criteria up front.

If you’re working with enclosures that will be sold to end customers — or installed outdoors — plan the process, run mock-ups, and insist on documented adhesion and corrosion test results before large runs. It saves real money. Trust me — I’ve seen both the failure and the fix.

If you found this useful (or if I missed something obvious — hey, tell me), drop a comment, share your pain points, or send a drawing. I’ll happily point out where hidden costs live on a BOM and where you can trim cycle time without losing durability.

— Senior Engineer, Baoxuan Sheet Metal Processing Factory
