I’ll be honest — when they first told me, “Old Zhang, write something for the factory blog,” my first reaction was: me? Writing? I’ve been bending, welding, grinding, cursing at stuck bolts for more than ten years, not writing essays. But maybe that’s exactly why I should. Because many folks reading CAD drawings in an office — no offense — don’t really know what actually happens when stainless steel sheet refuses to cooperate or when tolerance looks nice in the drawing but makes the machinist sweat bullets.
So here goes. I’ll write like I talk with the brothers in the shop. Sometimes blunt, sometimes sidetracked. But all from real work at Baoxuan Sheet Metal Processing Factory.
Metal Forming Processes: What They Really Mean on the Shop Floor
Now, in the books, “metal forming processes” sounds neat. Stretching, bending, stamping, deep drawing, laser cutting, whatever. In reality, every step has a personality. Stainless steel likes to spring back more than you think. Aluminum dents if you breathe too hard on it. Copper — ah, copper is beautiful but scratches if you look at it wrong.
One time, a client’s drawing required a 90° bend on 304 stainless, thickness 2 mm, tolerance ±0.2. On paper? Easy. On the press brake? Not so easy. The springback was nearly 3°, and we had to compensate with tooling setup and operator skill. Young guys often underestimate how much hands-on testing it takes to get forming just right. That’s the daily reality of metal forming processes.

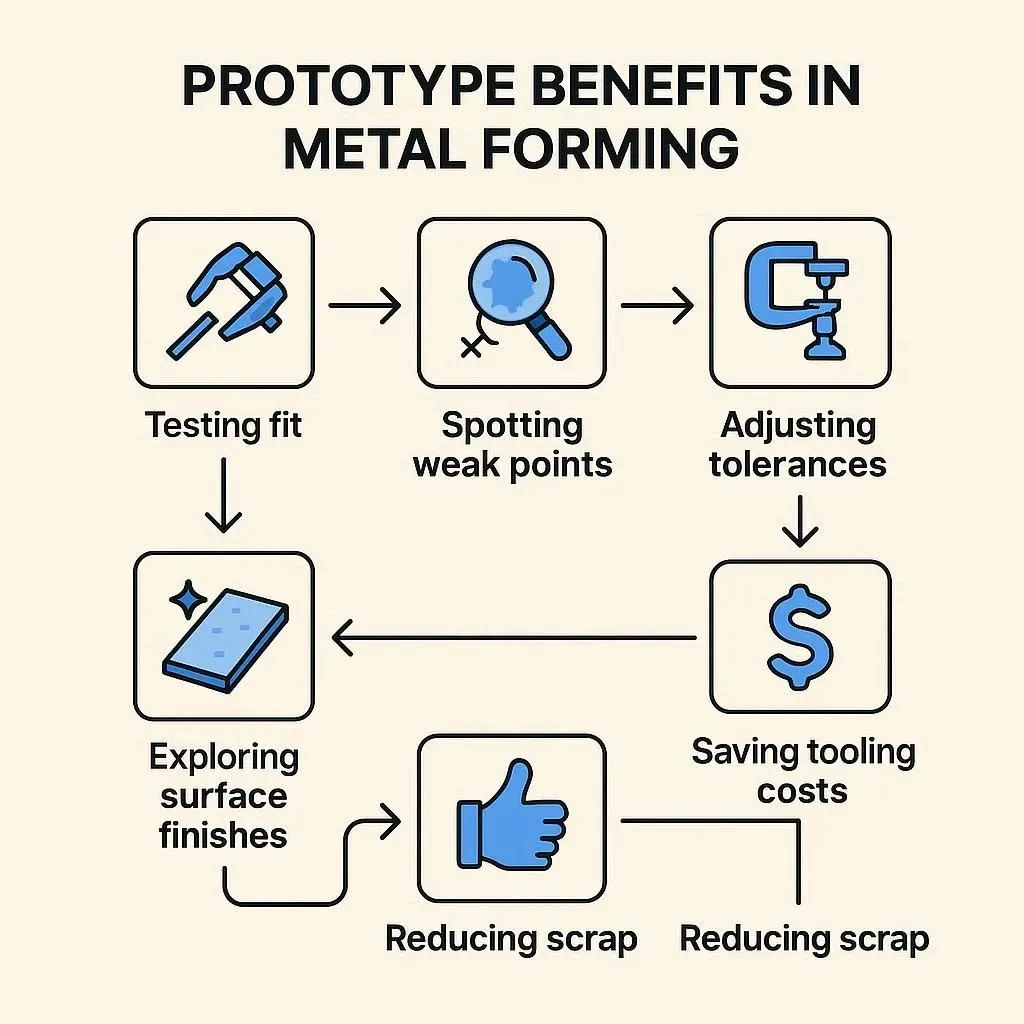

Prototype Metal Parts Benefit #1: Testing Fit Before Mass Production
Let’s start with the most obvious — prototypes let you see if parts will assemble correctly. CAD is smart, but it lies sometimes. You think two tabs align perfectly, then in reality one slot is 0.3 mm off because laser kerf wasn’t accounted for.
I remember a batch of chassis parts for an electronics company. Only ten pieces needed at first. Lucky they didn’t jump straight to 500. First assembly — misalignment. After adjusting hole compensation in the laser program, second run fit like Lego bricks. If we didn’t prototype, that whole batch would have gone to scrap. That’s why prototype metal parts are your insurance in metal forming processes.
Prototype Metal Parts Benefit #2: Spotting Weak Points in Structural Strengt
Sometimes it’s not the size that fails but the strength. Powder coating hides a lot, but metal fatigue won’t forgive you. A thin bracket might look fine in drawings, but you bend it once and it cracks like old bamboo.
We once had a customer who insisted on 0.8 mm sheet for a supporting bracket (to save cost, of course). Prototype proved the point — it bent under a light load test. We showed him, he agreed to switch to 1.2 mm. That prototype saved face and saved warranty headaches. In short, prototypes reveal where your forming process isn’t matching the mechanical requirement.
Prototype Metal Parts Benefit #3: Adjusting Tolerances in High-Accuracy Mechanical Parts
High-accuracy? Let me say this: numbers like ±0.05 mm are nice in theory, but once welding enters the picture, you better be careful. Weld heat distortion will eat your tolerance alive.
I had a project with an aluminum enclosure where the client specified ±0.1 mm flatness after welding. I laughed and then tried anyway. Result? Warped like potato chips. We prototyped two alternatives — one with TIG, one with spot-weld + riveting. Showed them side by side. They chose riveted. Tolerance achieved. Prototype saved a fight. This is why in metal forming processes, prototypes often redefine what is actually achievable.
Prototype Metal Parts Benefit #4: Saving Money in Tooling and Fixtures
You know what’s expensive? Not the sheet metal itself — the tooling. A stamping die can cost tens of thousands of RMB. Imagine building one and then finding out your design needs a radius change. That’s crying-level waste.
At Baoxuanmetal, we always recommend a few prototype runs with laser + bending before committing to hard tooling. Yes, unit cost is higher. But compared to the risk of scrapping a die, it’s nothing. According to a 2023 survey by SME (Society of Manufacturing Engineers), nearly 42% of manufacturers admitted tooling redesigns caused over 15% project delays [Source: SME Manufacturing Survey 2023]. That’s why prototype metal parts give you breathing room before jumping into fixed tooling.
Prototype Metal Parts Benefit #5: Speeding Up Client Approvals
Procurement people want something to show their boss. Bosses like to touch, twist, maybe even drop the part on the floor to “test quality.” A prototype gives them that satisfaction. And once they see and feel, approvals come faster.
True story: one German customer dragged feet for weeks over drawings. We cut two prototypes, shipped DHL, they had it in their hand, next day approval signed. Project moved. No endless email ping-pong. Sometimes the benefit of prototype in metal forming processes is just psychological.
Prototype Metal Parts Benefit #6: Exploring Surface Treatments Before Final Run
Surface finish is tricky. You think brushed #4 stainless looks good — until fingerprints show everywhere in actual use. Powder coating seems strong — until a sharp edge chips during assembly.
We usually prototype with 2–3 different finishes side by side. Once a client chose sandblasted + anodized aluminum after rejecting painted steel. They only decided after touching the prototype. That’s why prototypes are invaluable for surface treatment decisions in precision sheet metal.
Prototype Metal Parts Benefit #7: Reducing Scrap and Hidden Costs
Scrap rate is the silent killer. You don’t see it in the quote, but it eats margin. One wrong bend angle repeated 100 times = 100 pieces of useless scrap. With prototypes, you debug the program and fixture before mass run.
According to IPC standards, typical acceptable rework rate in electronics enclosures is below 5% [Source: IPC-2221 Standard]. But without prototype testing, I’ve seen scrap go as high as 20%. That hurts. Prototypes in metal forming processes protect you from this hidden bleed.

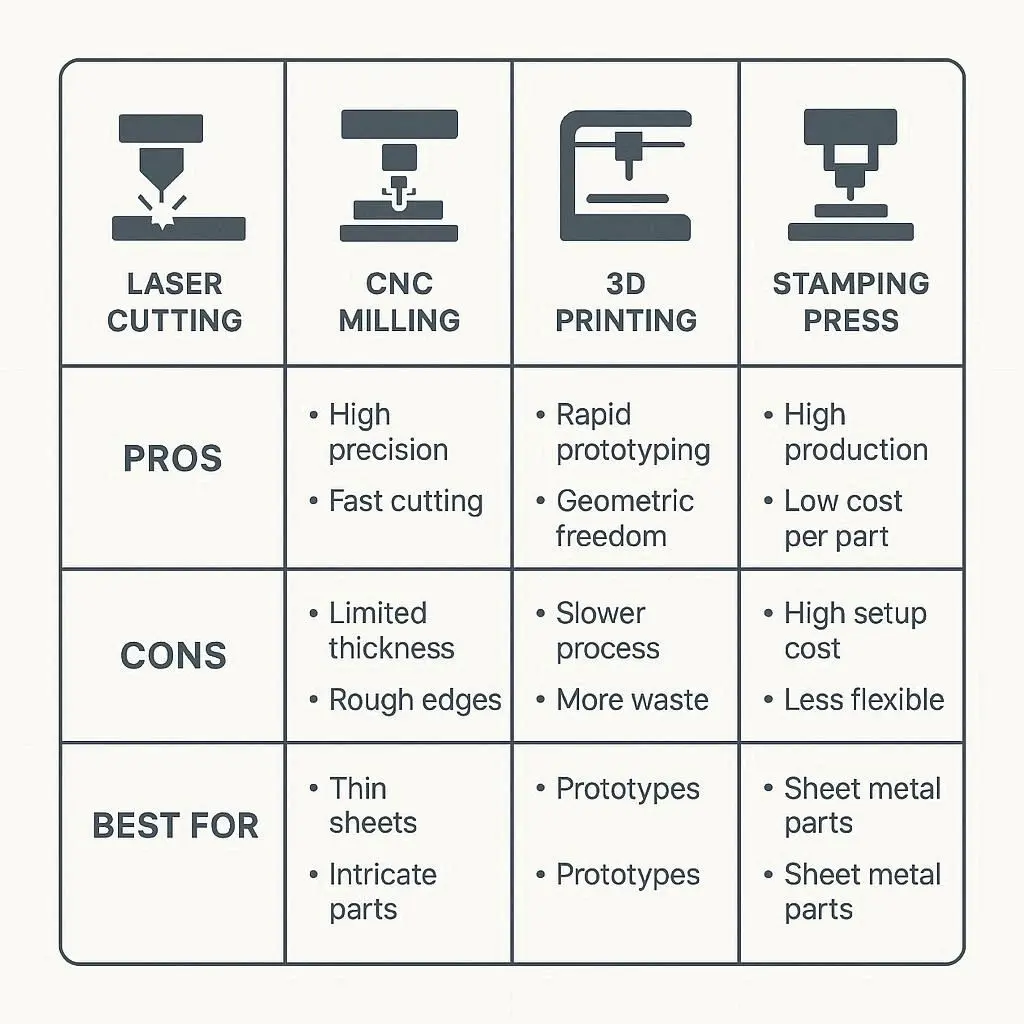

Comparison Table: Prototype Methods in Metal Forming Processes
| Method | Pros | Cons | Best Use Case |
|---|---|---|---|
| Laser cutting + bending | Fast, flexible, no tooling cost | Higher per-part cost | Early prototypes, small batches |
| CNC machining (from block) | Very precise, tight tolerance | Slow, material waste | Complex parts needing accuracy |
| 3D printing (metal) | Rapid iteration, no tooling | Expensive, limited materials | Shape validation, not load testing |
| Stamping (soft tool) | Closer to mass production, faster cycle | Tooling cost, limited adjustability | Mid-volume prototypes with repeat design |
This table summarizes how prototypes fit into real-world metal forming processes.
FAQ: Metal Forming Processes & Prototyping
Q1: Why not skip prototypes and go straight to mass production?
Because the cost of scrap, tooling changes, and assembly failures will kill your margin faster than prototype cost.
Q2: What’s the typical lead time for prototype sheet metal parts?
Usually 5–10 days depending on complexity. Baoxuan Precision Manufacturing sometimes delivers in 3 days for urgent jobs.
Q3: Which surface finish is best for prototypes?
Depends on function. For visual approval, anodizing or powder coat works. For mechanical fit only, bare metal is enough.
Q4: Can prototypes match final tolerance?
Yes and no. For bending and welding, prototypes show trends. But final tolerance may improve once fixtures are optimized.
Final Words Over Tea
I’ve rambled enough. The main point: don’t underestimate prototypes. In metal forming processes, prototypes aren’t luxury — they’re survival. I’ve seen too many companies waste piles of metal because they “trusted the drawing too much.”
If you’re an engineer or buyer who hasn’t touched a press brake, just remember — the shop floor always tells the truth. Prototypes let you hear it earlier and cheaper.
Alright, I’ll stop here. If you’ve got your own headache stories with prototypes or questions about tolerances, just drop a message. We at Baoxuan Sheet Metal Processing Factory love a good chat over tea — better if there’s no welding smoke in the air.
