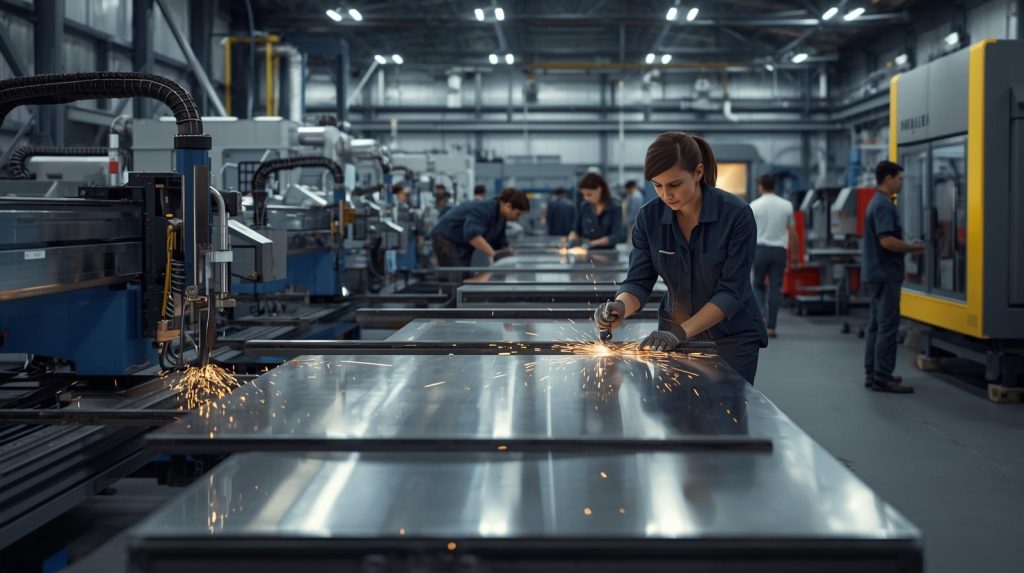

Precision Sheet Metal Processes Explained: Cutting, Bending, Welding, and Finishing

I’ve been at Baoxuan Sheet Metal Processing Factory for more than ten years now. Sometimes I joke that I’ve spent more time with CNC machines than with my own family. You learn to respect the metal. Stainless steel, aluminum, galvanized sheet — they’ve all got their own temper, their own way of fighting you back when you try to bend them into shape. Outsiders, procurement guys, they usually see a clean CAD drawing and think, “Easy job.” Ha. If only they knew.

Precision sheet metal is a different animal. It’s not just cutting and bending; it’s chasing tolerances down to 0.05 mm, fighting springback on bends, figuring out how weld distortion is going to twist your frame when you’re not looking. And trust me, those things don’t show up in the drawing. Over the years, I’ve collected more headaches and lessons than I can count — some funny, some painful. Maybe that’s why our boss finally told me: “Mark, why don’t you write it down? Other engineers might learn something.”

So here we are. No fancy writing. No marketing gloss. Just a shop-floor view of how precision sheet metal cutting, bending, welding, and finishing really works, where it goes wrong, and what tricks help keep things right.

Cutting in Precision Sheet Metal

Cutting is where everything begins. Get it wrong here, and the whole job’s messed before bending or welding even starts. At Baoxuan, we use three main cutting methods: laser cutting, punching, and waterjet (rare but for thick or special jobs).

Laser cutting is the workhorse. Stainless steel, 1.5 mm, 2 mm, even 6 mm plates — lasers eat through it with ±0.05 mm accuracy if you tune the settings right. Procurement folks like to ask, “Why’s laser cutting so expensive compared to stamping?” Well, stamping dies cost thousands, sometimes tens of thousands. Unless you’re doing mass production, you’ll never recover that cost. Lasers shine in prototyping and low to medium batches, where flexibility beats speed.

Punching still has its place. Louvers, ventilation slots, patterns — things a laser can cut but too slowly. A good turret punch with the right tooling saves hours. Of course, the edges are rougher. You’ll spend more time deburring if you want a smooth surface for finishing.

Waterjet, I’ll be honest, is not our favorite. It’s slow and messy. But sometimes when a customer insists on no heat-affected zone (like aerospace brackets), it’s the only option.

One case still sticks in my head. A telecom client sent us a drawing for a rack panel, 2.5 mm aluminum, tolerance ±0.1 mm. Their old supplier laser cut it but left dross at the edges. The powder coat wouldn’t stick cleanly; peeling happened in the field. They came to us angry. We cleaned up the process — adjusted the assist gas, switched to nitrogen, and slowed the cutting speed slightly. Parts came out smooth, adhesion passed the cross-hatch test. Sometimes the trick is not in the machine, but in knowing what little knob to turn.

Cutting is the first gate of precision sheet metal. If you respect the sheet here, the rest of the job stands a chance.

Bending and Forming Challenges in Precision Sheet Metal

Now, bending. Ah, this one gives me gray hairs. Engineers draw a perfect 90° bend in CAD. They forget metal has a memory. It springs back. Stainless more than aluminum, mild steel somewhere in between. You want 90°? You don’t bend 90°. You overbend — maybe 91°, maybe 92°, depends on thickness, V-die, punch radius. Every combination is different.

Springback charts? Sure, we’ve got them. But charts lie sometimes. The real truth comes when you’ve bent 500 pieces and the first 50 all measure 89.5°. Then you tweak the CNC press brake angle correction, and suddenly it’s 90.1°. That’s shop life.

Customers don’t always get it. They ask: “Why is my part 0.3 mm longer after bending?” Well, because metal stretches. The bend allowance and K-factor in your CAD were off, or your engineer didn’t account for grain direction. Yes, grain direction matters. Try bending aluminum across the grain and you’ll see micro cracks faster than you can say “rework.”

I remember a case with an industrial enclosure. Customers designed holes too close to a bend line, maybe 2 mm from the edge. Looked fine on screen. On the brake press? The punch distorted the holes, making them oval. We had to redesign the flat pattern — move the holes or laser cut them post-bending. The cost went up, and the customer was upset. But that’s the reality: design for manufacturability is not optional in precision sheet metal.

If cutting is the first gate, bending is the test of patience. Miss it, and your precision sheet metal part will never sit flush in assembly.

Welding and Assembly in Precision Sheet Metal

Welding is where theory and reality finally collide. You can cut and bend with ±0.05 mm accuracy, but once the torch or TIG arc touches the metal, things move. Heat is sneaky. Distortion shows up even if you clamp everything tight. I’ve had panels bow 2 mm just from a simple seam weld. Try explaining that to a customer who drew “flat, no tolerance specified.”

At Baoxuan, we use TIG for thin stainless (looks cleaner, better penetration control), MIG for thicker stuff, and spot welding when speed matters. Each has its own quirks. TIG gives that nice “stack-of-dimes” finish everyone likes to post on social media, but it’s slow. MIG’s faster, but spatter cleanup eats time. Spot welding — fantastic for brackets and cabinets, as long as conductivity and thickness are right.

One project still makes me smile (now). A medical equipment housing, 1.2 mm stainless, required seamless corners. The customer wanted no grinding marks visible after polishing. Our welder Chen spent three nights just to get the sequence right — tack, weld 20 mm, cool, flip, weld again. We used chill blocks to pull the heat away. In the end, the surface came out so clean even I was surprised. That customer later told us they used our part in their trade show demo booth. That’s the reward when welding precision sheet metal goes right.

But when it goes wrong… imagine assembling 20 frames, each slightly twisted, and then trying to fit PCBs inside. You’ll want to tear your hair out. That’s why welding is not just about laying beads; it’s about anticipating distortion, using jigs, pre-bending slightly, or even designing relief slots in the flat pattern. Welding is the battlefield of precision sheet metal, where experience saves money.

Surface Finishing and Powder Coating

Ah, finishing. The part most engineers underestimate. They think it’s just “make it black” or “RAL 7035 gray.” But finishing is where looks meet function. Powder coating, anodizing, plating — each one interacts with tolerances, corrosion resistance, and even assembly fit.

Powder coating is king for sheet metal enclosures. Durable, eco-friendlier than wet paint, wide range of colors. But here’s the catch: it adds thickness, usually 60–120 microns. That’s 0.06–0.12 mm per side. Sounds small? Try fitting a 19-inch rack panel with 0.2 mm added thickness, and suddenly your screws don’t line up. We’ve had to ream holes post-coating more times than I’d like to admit.

One story comes to mind. A client ordered outdoor control boxes, mild steel, powder-coated in textured black. Nice finish. But they didn’t ask about salt spray resistance. Six months later, boxes near the seaside started showing rust at the edges. We had followed their spec, but the spec was wrong for the environment. Now we recommend epoxy primer + polyester top coat for coastal applications. It costs more, but you won’t be replacing boxes in half a year.

Finishing isn’t just about pretty colors; it’s about lifespan. According to a report by MarketsandMarkets, the global powder coating market is projected to reach USD 17.2 billion by 2030, driven by demand for durability and environmental compliance (source: MarketsandMarkets, 2023). That growth is real because industries are waking up to the fact that coatings aren’t decoration — they’re protection.

So, when talking precision sheet metal, don’t leave finishing as an afterthought. Treat it as part of the design from day one.

Quality Control and Tolerances in Precision Sheet Metal

Here’s where the serious faces come out. Quality control. Tolerances. The invisible part of the job that decides whether your part fits or ends up in the scrap bin.

We live and die by tolerance. ISO 2768 defines general tolerances for sheet metal — ±0.1 mm for small lengths, looser for bigger spans. Sounds boring, but that standard is the reason assemblies don’t shake themselves apart. At Baoxuan, our inspectors measure hole diameters with pin gauges, flatness with granite surface plates, weld penetration with section cuts. It’s not glamorous, but it saves reputations.

A lot of engineers don’t realize how tight tolerances cost money. ±0.05 mm hole position? That means laser cutting instead of punching, special fixturing in bending, maybe even machining secondary ops. Each step adds cost. And still, if humidity changes or the sheet batch comes with slightly different tensile strength, your bend angle shifts. That’s why we always ask clients: “Do you really need ±0.05, or will ±0.2 work?” Most of the time, ±0.2 is fine.

I once had a client in the optics industry. They insisted on ±0.03 mm flatness across a 600 mm stainless panel. I told them: “That’s machining territory, not sheet metal.” They didn’t believe me. We tried — clamped, welded, ground flat. Still warped. In the end, they admitted it should’ve been a machined aluminum base, not sheet metal. Lesson learned: pick the right process for tolerance.

Quality control in precision sheet metal isn’t about catching mistakes at the end; it’s about designing tolerances that reality can respect.

Cost and Pricing Logic in Precision Sheet Metal

Let’s talk about money — the part procurement always asks about. Why does one job cost $20 per piece, while another, same size, costs $60? Because size is not the only factor. Tolerance, finishing, welding sequence, and quantity all shift the price.

Cutting is relatively straightforward. Laser charges are usually per minute of beam time plus material. But bending? Every setup on a press brake takes time. Tool change, angle test, correction — that’s labor. Welding is even trickier. A simple tack weld is cheap. A full seam, ground smooth, polished? Multiply the cost.

Then you add finishing. Powder coat is per square meter coverage, but special colors (like RAL metallics) cost more. Anodizing aluminum — great look, good corrosion resistance, but thickness control is tricky. If you don’t mask threads, you’ll be chasing tapped holes with a drill.

Here’s the frustration: customers sometimes compare us to “online quotes” that look cheaper. Those quotes often assume loose tolerances, minimal QC, and zero rework. In reality, when the part doesn’t fit, they come back to us. And we redo it the right way.

A quick example: two enclosures, both 300×200×150 mm, 1.5 mm steel, powder-coated. One needs ±0.2 mm on hole positions, the other ±0.05 mm. Same box, triple the price. Why? Because ±0.05 requires laser cutting, CMM inspection, and possibly rework if thermal distortion shows up. That’s the logic many procurement teams miss until they get burned.

So when we talk about precision sheet metal pricing, remember: you’re paying for reliability, not just metal.

Case Examples From the Shop Floor

Stories teach better than theory, so let me share two that stuck with me.

Case 1 – Optical Instrument Enclosure

One client came in absolutely furious. Their supplier had delivered enclosures with sloppy ±0.5 mm tolerances, warped welds, and powder coating bubbling at the corners. The PCBs wouldn’t even slide inside. They told me, “This is high-precision equipment, not some toolbox.”

At Baoxuan Sheet Metal Processing Factory, we rebuilt the parts properly. Laser cutting was done at ±0.05 mm, following classifications like those defined in ISO 9013:2017 Thermal cutting. CNC bending was corrected for springback, TIG welding was sequenced to limit heat, and every panel was clamped on a granite plate during cooling to avoid distortion.

For finishing, we didn’t just spray and pray. We used a controlled pre-bake cycle to outgas the steel before applying the coat — the same durability principle validated in ASTM B117 Salt Spray Testing.

When everything came together, the PCB slid in like butter. Later, the client sent us a photo of their production line, rows of perfect assemblies. That’s what precision sheet metal delivers when it’s done right.

Case 2 – Telecom Rack Project

Another time, a telecom company ordered 500 rack cabinets. On paper their drawings looked fine, but they had holes placed just 1.5 mm from bend lines. Anyone who’s bent sheet knows that’s asking for distortion. We warned them, but they insisted, “Just follow the drawing.”

So we did. And sure enough, the first batch had warped holes, threads unusable, scrap rate around 25%. They came back frustrated. This time, we redesigned the flat pattern — moved the holes away from the stress zone, and in some cases, cut them after bending. That method matches the logic behind ISO 2768 General Tolerances, which helps avoid these exact kinds of issues.

Cost per unit rose slightly, but the scrap rate dropped close to zero. In the end, they admitted our way was better. Sometimes the best lessons in precision sheet metal come after expensive mistakes.

Comparison Table: Cutting, Bending, Finishing Methods

This table is the quick cheat sheet I wish procurement guys read before asking why we “don’t just punch everything.” Precision sheet metal isn’t one-size-fits-all.

Pitfalls for Engineers Ordering Precision Sheet Metal

Let me be blunt: half the problems we fix come from drawings. Not bad engineers, just lack of shop-floor time. Here are the most common traps:

• Holes too close to bends – distortion guaranteed.

• Unrealistic tolerances – asking for machining-level accuracy in sheet metal.

• Ignoring finishing thickness – powder coat will make that tight fit impossible.

• Wrong grain direction – bending aluminum across grain leads to cracks.

• No welding notes – saying “weld here” without specifying seam vs. tack.

• Sharp internal corners – lasers can cut it, but stress cracks will appear later.


If you’re an engineer ordering precision sheet metal, remember: design for manufacturability. Talk to your supplier early. Saves you money, saves us headaches.

Future Outlook in Precision Sheet Metal

Things are changing fast. When I started, we adjusted angles by eye and hammer. Now, CNC press brakes self-correct with laser sensors. CMM machines check hole positions automatically. We’re even testing AI-driven quoting that predicts bend allowances better than K-factor charts.

Automation will grow. Robotic welding is already helping with consistency, though I’ll admit, a robot still doesn’t “feel” distortion like Chen does. Digital twins are another trend — simulating cuts and bends before touching metal. It won’t replace experience, but it saves trial and error.

According to ResearchAndMarkets, the global sheet metal fabrication market is projected to reach USD 338 billion by 2030, fueled by demand in electronics, telecom, and automotive (source: ResearchAndMarkets, 2023). That means precision sheet metal isn’t a niche anymore; it’s becoming the backbone of modern manufacturing.

Still, no matter how smart machines get, the metal doesn’t lie. It pushes back, warps, cracks. The future will be a mix of digital precision and old-school intuition. And that’s okay.

Frequently Asked Questions

1. What’s the difference between precision sheet metal and ordinary sheet metal?
Ordinary sheet metal is loose tolerance, good enough for simple panels or ducting. Precision sheet metal means tighter tolerances, stricter QC, controlled welding, and finishing that ensures assemblies fit perfectly.

2. How tight can tolerances go in precision sheet metal?
Realistically ±0.05 mm for laser cutting, ±0.2 mm for bends. Anything tighter, you’re moving into machining territory.

3. Does powder coating affect dimensions?
Yes. Adds 0.06–0.12 mm per side. Always allow clearance if parts need to slot together.

4. Why does sheet metal bending cost more on thick material?
Thicker sheet requires larger tonnage presses, bigger tooling, and more setup. Plus, springback increases with thickness, so corrections take more time.

5. Can welding always be done without distortion?
No. Heat always moves metal. But good sequence planning, jigs, and chill blocks minimize it. Expect some warping, design accordingly.

Closing Thoughts

Well, that’s my two cents — or maybe two thousand words too many. Precision sheet metal isn’t magic, it’s discipline. Cut right, bend smart, weld with foresight, finish with care. The drawings don’t show the whole story, but the shop floor does.

If you’re an engineer or procurement guy reading this, next time you send a drawing, think about where it might fight back. And if you’re already nodding because you’ve seen these headaches yourself — welcome to the club.

We at Baoxuan (or Baoxuanmetal, as some call us) keep learning, one panel at a time. If you’ve got a tricky part, a tolerance that keeps you awake, or just a story from your own factory, drop me a note. Always happy to trade war stories over tea.
