Sheet Metal Forming Operations: 8 Proven Metal Bending and Forming Solutions

Sheet Metal Forming Operations — Intro (why I’m writing this)

Alright — to be honest, I didn’t plan to be a blogger. I’m an old hand on the shop floor at Baoxuan Sheet Metal Processing Factory, been bending, welding, powder-coating, and swearing at machine setups for the better part of a decade. The following is straight shop-talk: practical, sometimes blunt, sometimes I trail off (habit). If you’re an engineer or procurement lead who can read CAD but hasn’t stood by the press brake at 6 am, this is for you. Sheet Metal Forming Operations.

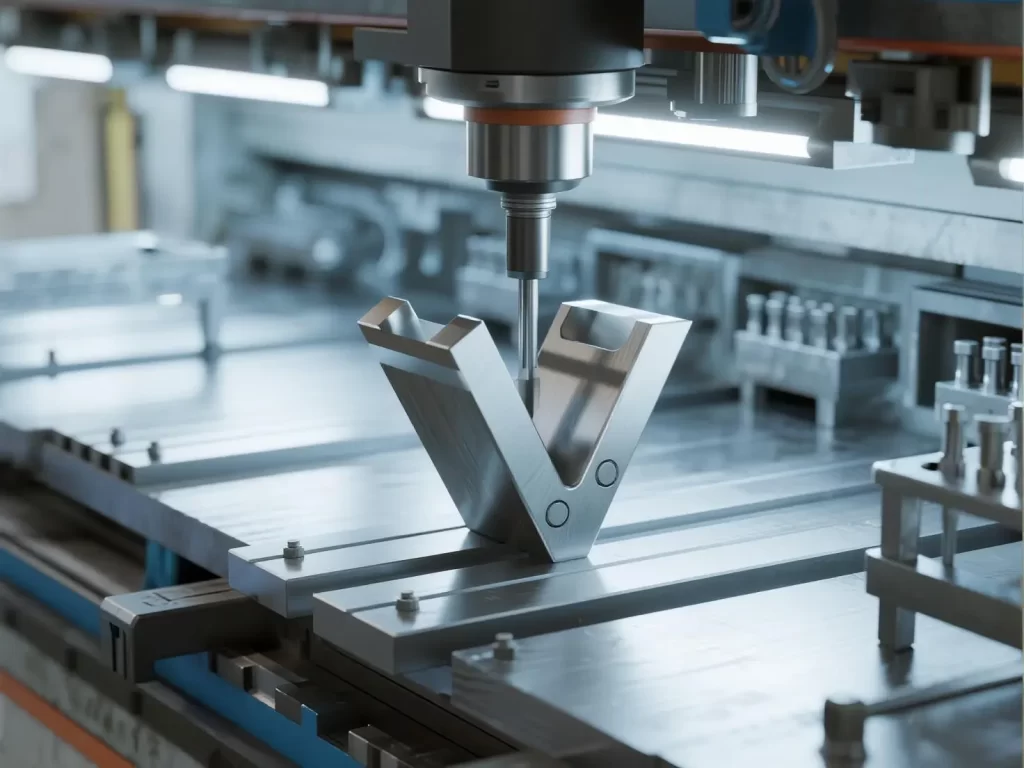

Sheet Metal Forming Operations — 1) CNC Press Brake (the reliable first call)

When you need accurate bends in short runs, the CNC press brake is usually our first choice. I mean, set up once, check the crowning, pick the right V-die and you’ll be surprised how repeatable it is. In well-maintained machines we’ll see bend-angle repeatability within about ±0.5° and linear positioning often around ±0.1–0.2 mm — assuming tooling and operator are not trying to sabotage the part. Accurl

Pros: flexible, low tooling cost, good for medium-thickness stainless and aluminum.
Cons: setup time for complex sequences; operator skill matters.
Short note to close — CNC press brakes are a mainstay in Sheet Metal Forming Operations.

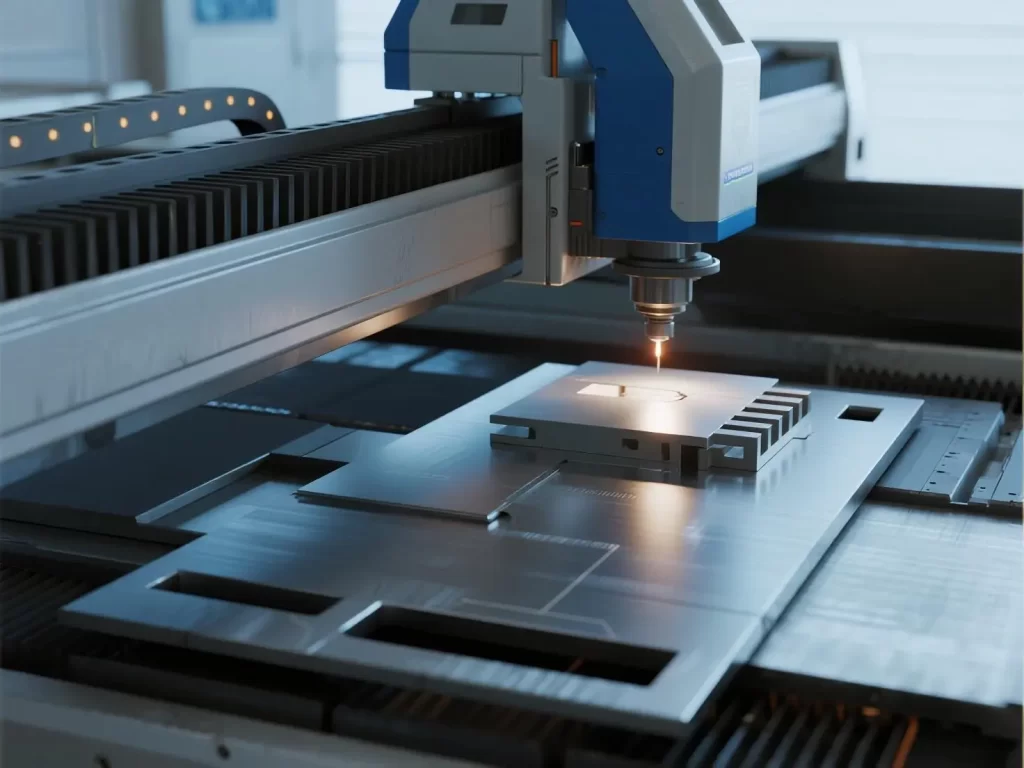

Sheet Metal Forming Operations — 2) Laser cutting + folding (fast layout, watch the kerf)

We like laser + brake when parts need tight geometry and small runs. Laser gives neat edges, but remember kerf: for thin stainless the kerf is small, typically ~0.2–0.4 mm and you should account for that in nests and hole sizes. Xometry Pro

so add a scrap margin, always. Laser cutting is part of modern Sheet Metal Forming Operations.

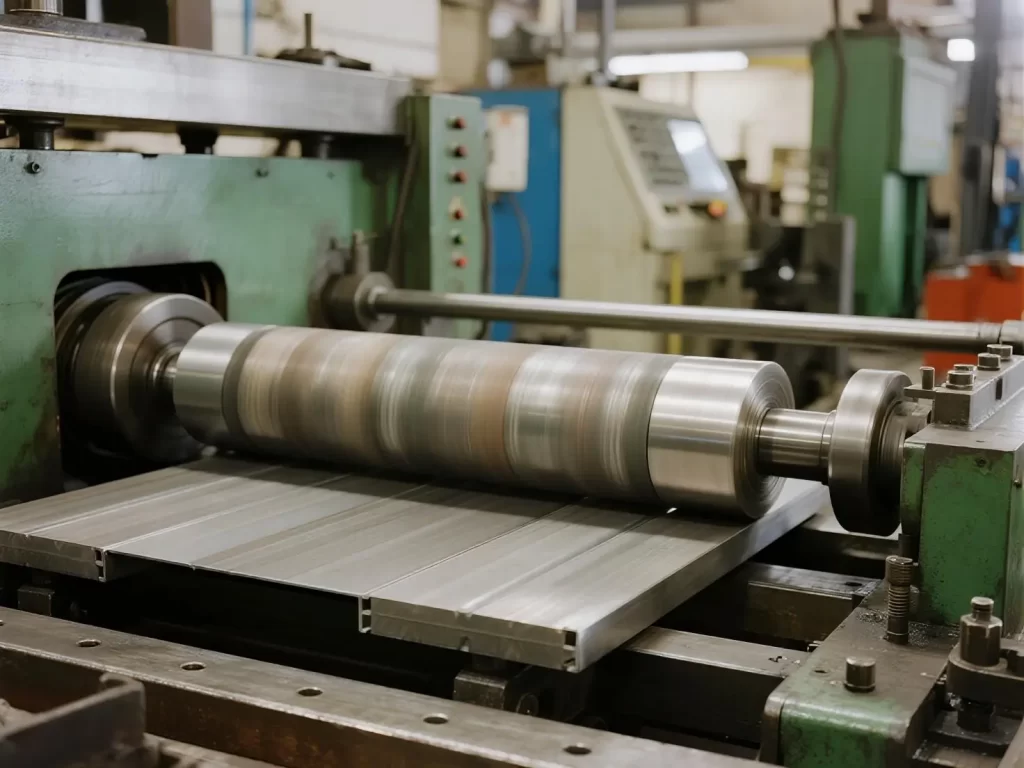

Sheet Metal Forming Operations — 3) Roll forming and long profiles (when length matters)

Roll forming is the calm, methodical cousin — great for long channels and continuous profiles. It’s cost-effective at volume, but tooling lead times can be weeks (and expensive). If your part is long and simple, roll forming beats repeated brake bends. If it’s short-run prototypes, don’t even start down that road. Roll forming stays in the Sheet Metal Forming Operations toolbox for a reason.

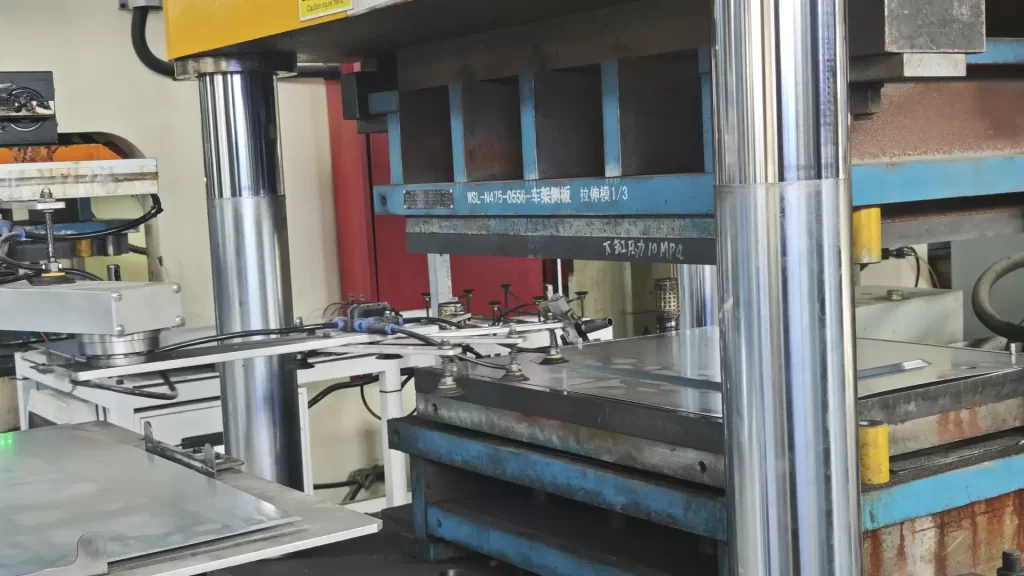

Sheet Metal Forming Operations — 4) Stamping and progressive dies (high volume, low unit cost)

Stamping is the “set it and forget it” at scale — once the die is right, cycle time is tiny. But tooling cost is the big kick in the teeth. I remember a customer insisting on a cheap die quote; they changed the design twice and we ate costs. Stamp only when you have volumes to justify it. Stamping still sits under the umbrella of Sheet Metal Forming Operations.

Sheet Metal Forming Operations — 5) Hydroforming / stretch forming (smooth curves, special cases)

For large radii and smooth contours, hydroforming or stretch forming can be a lifesaver. We used it for a chassis skin once — surface finish was great, but setup and fixtures were non-trivial. If your part cares about aesthetics and uniform stretch, consider these. Hydro/stretch forming is a niche but valid part of Sheet Metal Forming Operations.

Sheet Metal Forming Operations — 6) Tube bending & fixtures (not just flats)

People forget: many enclosures need brackets and tubes — matching bent tube tolerances to sheet parts requires good fixtures and a firm plan. Tube bending uses different tooling logic (mandrels, wiper dies), so don’t assume your sheet tolerances map directly. Tube bending — it’s part of broader Sheet Metal Forming Operations.

Sheet Metal Forming Operations — 7) Incremental forming and prototyping (cheap tool-up)

When tooling money is tight and you need geometry that’s hard to die, incremental forming or single-point forming helps. Slow, one-off, but cheap to try. We used this to validate a complex bracket before ordering a die — saved the client a five-figure mistake. Incremental forming is a low-cost node in Sheet Metal Forming Operations.

Sheet Metal Forming Operations — 8) Welding and post-form fixes (the inevitable tweaks)

Even with perfect bending, you’ll have to weld, grind, and touch up. Design parts to avoid stacked tolerances; specify datum references clearly on drawings. Bad weld planning ruins good bending. Welding and finishing—yeah, they’re part of everyday Sheet Metal Forming Operations.

Quick comparison — pros & cons table

FAQ — common shop-floor questions

Q: Typical costs per kg?
A: Tough one — depends on material, finish, and process. For basic laser-cut + brake stainless parts in small batches you might see quotes that effectively range from a few USD/kg to much higher once setups, finishes, and complexity are added. (Exact pricing changes with commodity steel prices and local labor — ask suppliers for detailed quotes.)

Q: Does laser cutting cause deformation?
A: For thin stainless and aluminum, laser causes minimal distortion if properly fixtured and with the right cutting parameters — but heat will affect edges and small thin parts can warp. Always plan fixturing or nest to minimize heat soak.

Q: What tolerances can I expect for high-precision parts?
A: On a well-run press brake / CNC cell you can hit angles within ±0.5° and linear positions within a few tenths of a millimetre; holes cut by high-accuracy lasers can be within a few tenths depending on thickness. (See the press-brake and laser sources above for more.) AccurlXometry Pro

If you’ve read this far — thanks. Drop a question, or a drawing, or a rant (I like rants). If you want examples from Baoxuan Precision Manufacturing or a quick sanity-check on a design for bending, ping me and I’ll tell you the parts that’ll cause a headache before your production run even starts. Sheet Metal Forming Operations — ask, share, or comment.
