Alright — straight talk. If you live in drawings and tolerances but haven’t spent much time smelling oil and grinding burrs off parts, this one’s for you. I’ve been at Baoxuan Sheet Metal Processing Factory long enough to have wrecked a few prototypes (and learned from them), so here are eight practical metal prototyping service ideas that actually save time and money — not just theory.

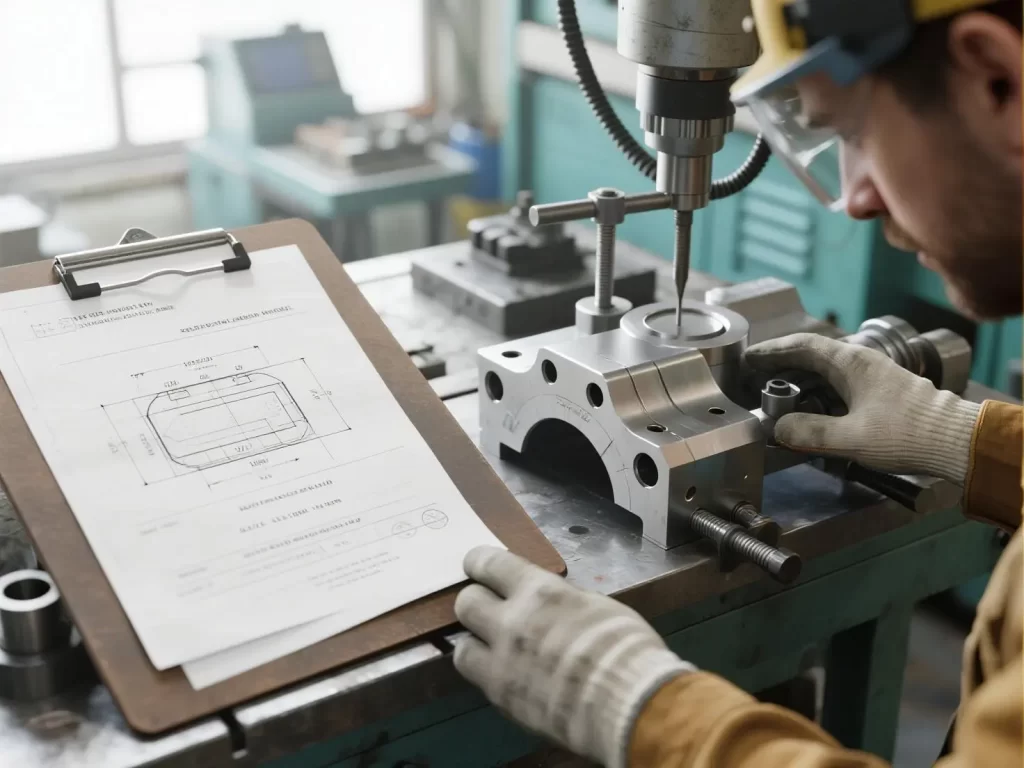

1) Start with a “manufacturing-aware” CAD
Be honest: engineers love tidy models. Trouble is, tidy models don’t always like reality. At our precision manufacturing shop we usually ask for a drawing with one datum, callouts for stack-ups, and notes on finish — yes, the little stuff. If you hand over a perfect zero-gap assembly without mentioning the intended production process, you’ll get surprises (bent flanges that don’t line up, tapped holes too close to edges… I could go on). Sketch the intent: which face must be flat, which hole is function-critical, and whether weight or appearance is the priority. That makes custom machined components easier to quote and make.

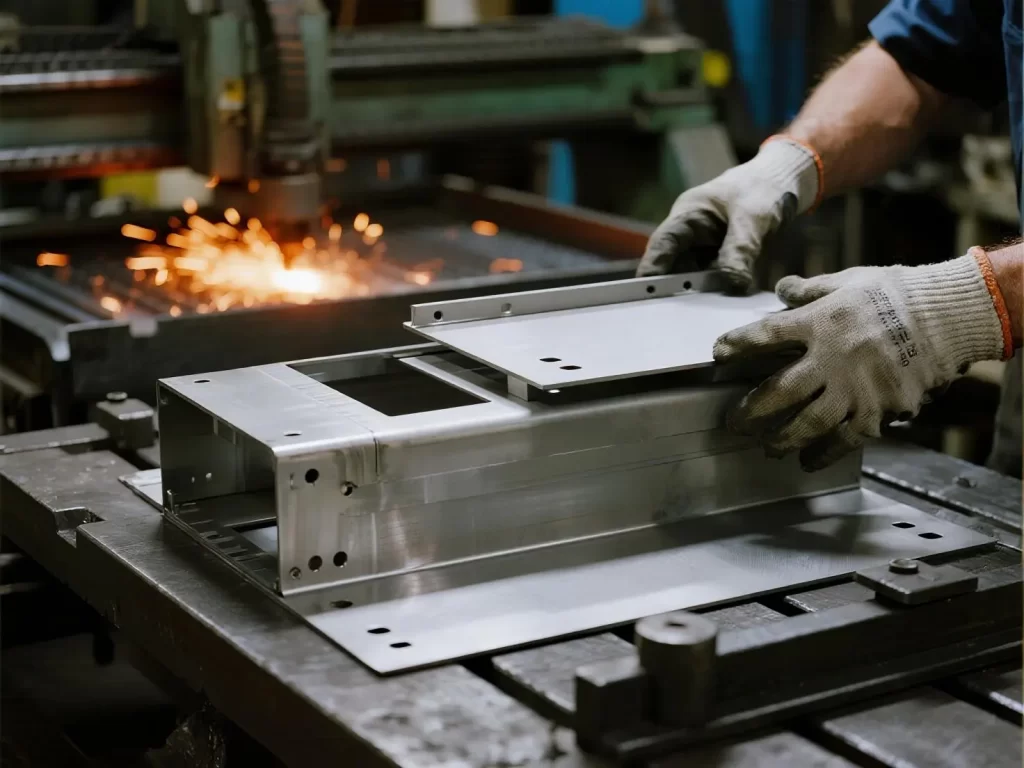

2) Pick the right process early: CNC vs. sheet metal vs. stamping
Choices matter. CNC machining gives crisp tolerances and nice surface finish; sheet metal fabrication is cost-effective for enclosures; stamping is great for volume but expensive up-front. I still remember a contractor who wanted “stamped-looking” parts for 50 pieces — cost disaster. Think in terms of function and quantity: if you need complex 3D pockets, go CNC; if it’s a box with bends, pick sheet metal. This choice steers everything for a successful metal part manufacturing project.
3) Plan tolerances around real capabilities (and budget)
Tolerance is a number you must pay for. For standard CNC work, expect practical tolerances around ±0.005″ (0.127 mm) for most features; tighter specs are possible but cost rises quickly. Don’t over-specify blindly — ask what’s critical and leave the rest looser. That keeps quotes honest and avoids chasing impossible fits when ordering machined parts.xometry.com
4) Material matters — beyond just “stainless” or “aluminum”
Stainless 304 is tough and corrosion-resistant, but it behaves differently when bent or welded compared to 6061 aluminum. For example, annealed 304 stainless has ultimate tensile strengths in the ~500+ MPa range depending on form — that affects forming and springback. matweb.com (Yes, numbers matter.) When you name material, mention temper, surface finish, and whether parts will be welded or painted — it changes process choices for Custom Machined Metal Parts.

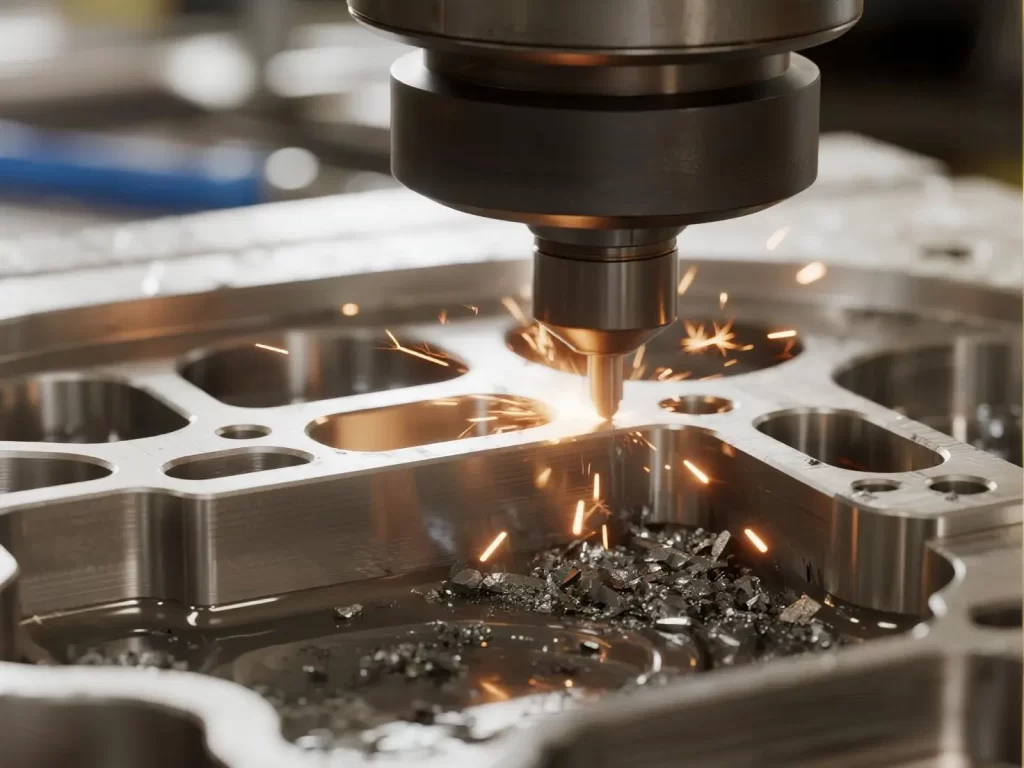

5) Cutting method trade-offs (laser, waterjet, EDM)

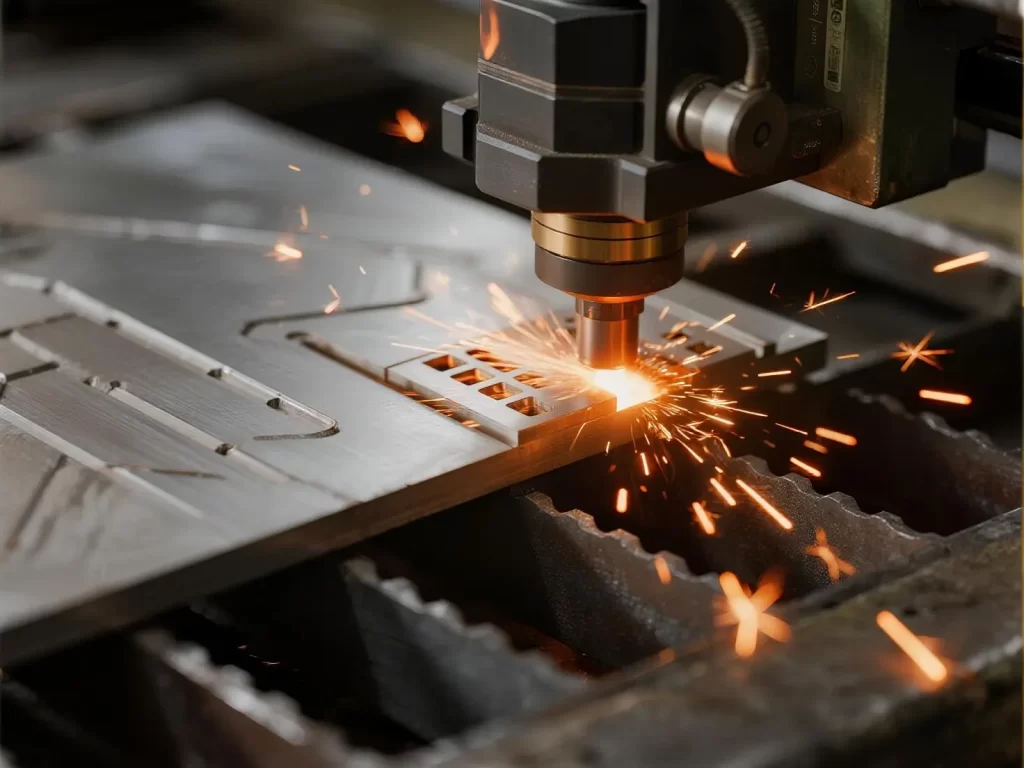

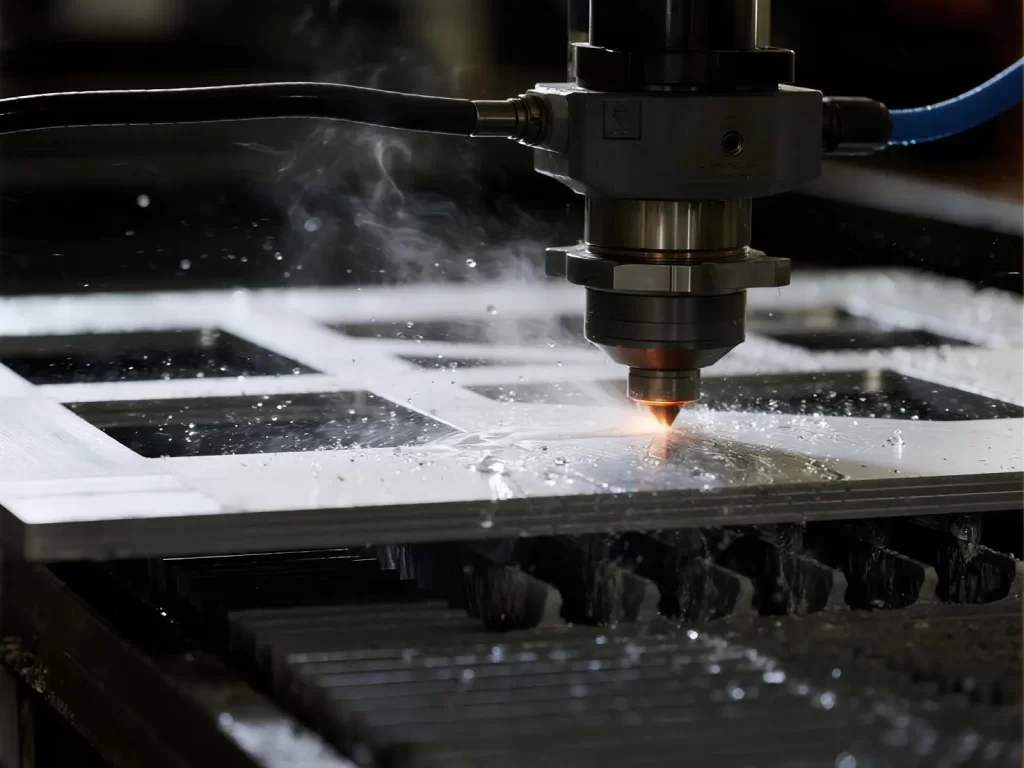

Laser cutting is fast and clean but creates a heat-affected zone (HAZ) that can change edge properties and sometimes warp thin panels — micro waterjet or fine-finishing may be better if HAZ is a problem. I’ve re-cut a batch after a laser job left tiny edge hardening that caused cracking during bending — costly lesson. If edge integrity matters, say so up front when ordering precision sheet metal parts.
6) Prototype smart: mix methods to validate cheaply
You don’t need a full-production tool to test a concept. Try rapid prototyping: laser cut blanks, CNC a critical boss, and do a single prototype run with temporary fasteners. It’s surprising how often a single quick sample exposes fit issues. At Baoxuanmetal we often do a hybrid sample (one CNC critical piece, three sheet-metal bodies) before locking tooling. That approach de-risks the project and speeds up delivery for custom metal prototypes.
7) Surface finish and coatings — specify, don’t assume
“Protect” or “paint” is not a spec. Powder coat thickness, electroplating, and passivation change dimensions and appearance. If you need a 0.5 mm slot, a thick coating will ruin it. Also: some finishes hide burrs, others highlight them — so decide whether the customer sees parts on the outside or they’re internal. Communicate the finish as part of the machined parts specifications.
8) Test points, datum strategy, and assembly reality
Add test points and assembly features — tags, witness holes, alignment bosses — so you can validate and assemble without gymnastics. If you plan to stack parts or align with shims, mention it. It’s the small things that save hours on the bench when building custom engineered metal components.
Quick comparison table — pros and cons
| Solution | Pros | Cons |
|---|---|---|
| CNC Machining | High precision, complex 3D features | Higher unit cost, longer lead for complex setups |
| Sheet Metal Fabrication | Low cost for enclosures, fast turn times | Bending springback, limited to thin-walled parts |
| Stamping | Lowest unit cost at scale | High tooling cost, poor for low volumes |
| Laser Cutting | Fast, accurate cut shapes | Heat-affected zone (HAZ), possible warping |
| Waterjet | No HAZ, good for composites | Slower, rougher edge finish |
| EDM | Tight tolerances for hard materials | Slow, expensive per part |
(Short, useful — keep it handy when choosing.)
Case notes — two quick shop stories (real)
1.A custom rack faceplate: designer called out a ±0.05 mm flatness across 300 mm. We quoted, the buyer blinked and said “just make it fit.” Turned out only two mounting holes needed that flatness. We reworked the drawing, saved 40% on the quote. Lesson: call out real functional tolerances in precision metal manufacturing.
2.Prototype fan bracket: laser-cut stainless, bent to form, then cracked at a weld because the edge had micro-hardening from cutting. We switched to waterjet for samples, fixed the detail, then returned to laser for production with modified settings. That’s the kind of iterative fix that saves you later headaches in custom metal fabrication.
FAQ
Q: Typical costs per kg?
A: Depends wildly — material type, complexity, finish, and quantity. For simple stainless sheet parts in mid volumes, raw material may be $3–$8/kg plus processing; small precision CNC parts are priced per feature/time, not kg.
Q: Does laser cutting cause deformation?
A: Laser cutting creates a heat-affected zone and can warp thin parts if not properly fixtured — if edge metallurgy matters, we may recommend waterjet or stress-relieving after cutting.(See research on HAZ effects for thermal cutting.) PMC
Q: What tolerances can I ask for?
A: Standard CNC tolerances ~±0.005″; sheet metal bends are looser and must account for springback — ask your shop for achievable tolerances given the material and thickness.xometry.com
If you’ve read this far, you’re doing the right thing: thinking with the shop in mind. I’m old-school enough to say: send a sketch, mark the must-haves, and ask suppliers (like Baoxuan Precision Manufacturing or Baoxuanmetal) for what they’d change before quoting. Drop a comment or a drawing — I’ll grumble and then help.
