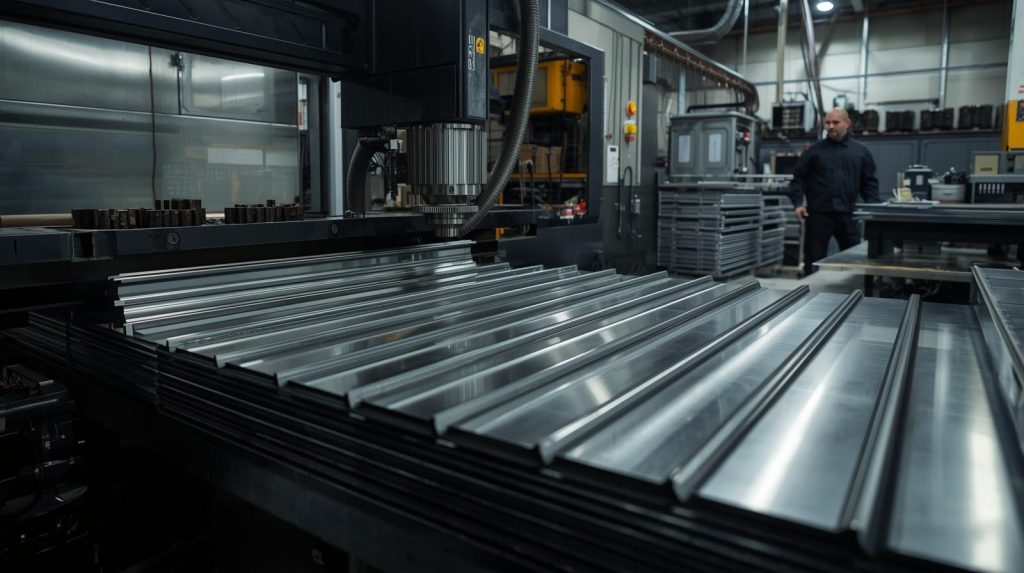

CNC Bending and Forming in Precision Sheet Metal Fabrication

You know, I’ve been around machines most of my life, more than ten years at Baoxuan Sheet Metal Processing Factory, and if there’s one thing that still makes me shake my head, it’s how people think bending sheet metal is “just a simple fold.” Like you fold paper, right? No. In precision sheet metal, bending is the part that either makes everything fit beautifully… or makes you throw the whole batch into the scrap bin. I’ve seen both outcomes, sometimes on the same day.

CNC bending and forming, that’s where things get interesting. Press brakes humming, tool setups taking longer than the actual bend, operators arguing over springback angles, procurement guys wondering why their “cheap” part suddenly costs extra because of one tight radius. To me, that’s daily life. To an outsider, it’s hidden; they only see the shiny finished enclosure, not the late-night corrections and trial bends we had to grind through to get there.

And honestly, sometimes it feels unfair. Cutting gets the spotlight (laser, waterjet, all the fancy tech), welding gets the big sparks and Instagram photos, even powder coating looks glamorous with the spray guns. But bending? Nobody outside the factory talks about it. Yet it’s bending that holds the whole idea together. If a part doesn’t fold to spec, forget assembly, forget tolerances, forget the customer’s PCB fitting inside. Precision sheet metal depends on bending more than most realize.

That’s what I want to put down here. Not marketing talk, not pretty theories, just what I’ve learned (sometimes the hard way) about CNC bending and forming. Maybe it helps a fellow engineer, maybe it clears things up for a buyer staring at a CAD drawing, wondering why a simple 90° bend turns into a half-day job. Either way, let’s talk about real shop-floor bending, because that’s where precision sheet metal actually becomes precision.

What Precision Sheet Metal Really Means on the Shop Floor

When you say “precision sheet metal” to someone off the floor, they imagine some perfect, mirror-like panel, maybe a fancy case or a shiny box. But on the shop floor, precision isn’t about how it looks, it’s about tolerances, repeatability, and whether everything actually fits together without hours of rework. I’ve spent more than a decade at Baoxuan Sheet Metal Processing Factory watching guys sweat over ±0.1 mm. That’s right, one-tenth of a millimeter. You’d think, “Eh, close enough.” Nope. That tenth decides whether your optical sensor sits flush in the enclosure or wobbles like it’s on roller skates.

Let me tell you, bending is where you see the magic and the mistakes. A part might leave the laser cutter looking perfect, all straight edges, no burrs, but then comes the first bend. Stainless steel springback, aluminum quirks, even the weird stuff like slightly off tooling on a press brake, suddenly your “perfect” panel is off by half a millimeter. And before anyone asks, yes, we measure, check, and remember, sometimes three times, just to make sure. That’s what precision sheet metal is: control, not luck.

I remember one job for a medical device enclosure. Customer had ordered from another supplier standard sheet metal, ±0.5 mm tolerances. The panels didn’t line up, welds pulled the corners, and the powder coating was uneven. We rebuilt everything at Baoxuan, using CNC bending and forming, tight tolerances, and proper setup sequences. The PCBs finally fit. The client was relieved. I’ll admit, it felt good seeing them finally smile. That’s the kind of difference precision sheet metal makes.

Also, a small digression here don’t underestimate the role of inspection tools. Angle gauges, micrometers, calipers, sometimes even a quick visual check can save a day of headache. Precision sheet metal isn’t glamorous, but it’s the backbone of a functional assembly. You bend it wrong, you might as well throw the whole lot in scrap. And yes, I’ve done that, more than once.

So, when someone asks me, “Why does this part cost more?” I just shrug and show them the bending sequence, the setup charts, the CNC program that took an hour to get right. That’s precision sheet metal for you, it’s invisible until it isn’t.

CNC Bending Machines and Their Role in Precision Fabrication

CNC bending machines… now there’s a love-hate relationship if I ever saw one. You see them in action, all flashing screens, hydraulic arms moving like clockwork, and you think, “This is it, the future of precision sheet metal.” And in many ways, it is but only if you respect it. A press brake isn’t magic. It’s a tool, and like any tool, the output depends entirely on the operator, the tooling, and, believe it or not, even the kind of day you’re having.

At Baoxuan Sheet Metal Processing Factory, we mostly use CNC press brakes for tight-tolerance parts, think medical enclosures, optical instruments, and industrial control panels. The beauty is repeatability. Once the program is right, you can churn out ten, twenty, a hundred identical bends without breaking a sweat. But getting that program right? Oh, that’s another story. I’ve seen engineers spend nearly an hour tweaking bending sequences for a single panel because the springback angle of stainless steel wasn’t what the CAD software predicted. It’s frustrating, but honestly… that’s why precision sheet metal requires hands-on experience. You can’t just push “run” and hope.

And then there’s tooling. If you pick the wrong V-die width or punch radius, the metal either cracks, or worse it folds wrong but looks okay at first glance. I can’t tell you how many times a “simple 90° bend” has ended up with a tiny gap that only shows when the part is assembled. That’s when you realize that CNC bending is more than pressing buttons; it’s about knowing your materials, your machine, and having a gut sense for what will happen before it happens.

Oh, and let’s talk setup costs, because procurement folks always blink at this. One small batch, maybe 10–20 pieces set up alone can eat hours. Adjusting the back gauge, calibrating the pressure, testing a scrap piece to check springback… by the time you start bending the actual parts, you’ve already spent more labor than some companies budget for the whole job. And yet, skip it, and your “cheap” part becomes a nightmare. That’s why precision sheet metal isn’t cheap, it’s controlled, not random.

One thing I’ve learned at Baoxuanmetal is this: treat CNC bending machines like teammates, not tools. Respect their quirks, understand their limitations, and they’ll save you headaches. Ignore them, and you’ll be on the floor, measuring angles at 10 pm, wondering why that “simple bend” cost half a day. Precision sheet metal lives and dies in these machines.

Case Example: When Bending Saved (and Nearly Ruined) a Job

Let me tell you about one job that still makes me shake my head and smile at the same time. A client came to us with a pretty straightforward request: enclosures for a precision optical instrument. Sounds simple, right? Well, their previous supplier had given them standard sheet metal parts, tolerances of ±0.5 mm. Not terrible… if you don’t care about assembly. But the panels didn’t line up, the welds warped the corners, and the powder coating was uneven. The PCBs literally didn’t fit inside. Customer was furious. And I don’t blame them.

So they came to us at Baoxuan Sheet Metal Processing Factory. First thing I did was examine the CAD files versus the physical parts they brought in. That’s when I realized how much a “simple bend” can go wrong if nobody pays attention to springback, material properties, or proper tooling. We rebuilt the parts from scratch using our precision processes: laser cutting ±0.05 mm, CNC bending with correct die and punch radius, careful sequencing of bends, and repeated verification at every step.

The tricky part was a small U-shaped panel that held a delicate optical mount. Stainless steel 1.2 mm thick. Springback almost ruined the first test bend, but after a couple of adjustments, the angles were spot on, and the assembly went together without a hitch. End result? Tolerances within ±0.08 mm, weld distortion minimized, powder coating perfectly even. The client actually smiled and that’s rare in my experience.

Funny thing is, while we were tweaking the bending program, one of the new interns asked, “Why so much fuss for just a fold?” I laughed and said, “Kid, that fold is the difference between a functional precision instrument and a box you throw away.” Precision sheet metal isn’t just a fancy phrase, it’s real control, and this job proved it.

Lessons learned? Always check material behavior, never underestimate setup time, and always respect springback. Oh, and communicate with the client they think tolerances are just numbers, but they don’t see the sweat behind each millimeter. That’s why case examples like this show exactly why bending is the heartbeat of precision sheet metal fabrication.

Comparing Bending Techniques in Precision Sheet Metal

So, let’s talk about bending techniques. Everyone assumes CNC bending is automatically the best, but that’s only part of the story. On the shop floor, you have three main ways: manual bending, CNC press brake, and panel benders. Each has its place, and each comes with its quirks.

Manual bending… Well, that’s old-school. You need a skilled operator, and you better have patience. For small jobs or prototypes, it can be faster, but repeatability is a nightmare. One slightly different angle, one misjudged springback, and suddenly your parts don’t match. Still, I have to admit, nothing beats the feeling of a good hand-bend that lands perfectly on the first try.

CNC press brakes, of course, are the workhorses of precision sheet metal at Baoxuanmetal. Once the program is dialed in, repeatability is excellent. Tight tolerances, consistent angles, minimal guesswork. The downside? Setup takes time, tooling costs can be high, and for small batches, sometimes it feels overkill. But for high-accuracy jobs, there’s simply no substitute.

Panel benders are a mixed bag. Great for long panels or wide boxes, but they struggle with tight radii or complex multi-bends. I’ve seen operators fight these machines for hours just to get a gentle curve right. Still, when used correctly, they save a lot of time on simple bends.

Here’s a simple comparison table I like to show new engineers and procurement staff:

Honestly, I’ve learned that knowing when to use each method is just as important as knowing how to bend. One time, a client insisted on CNC for a single small panel. It took longer to set up than just hand-bending, and I had to explain that yes, precision sheet metal sometimes requires judgment beyond the machine’s reputation.

At the end of the day, the method you pick directly impacts your quality, costs, and assembly success. That’s why comparing bending techniques isn’t just an academic exercise, it’s a real decision that affects every piece of precision sheet metal coming out of the factory.

The Impact of Material Choice on CNC Bending and Forming

Ah, materials… they’re the silent tricksters of precision sheet metal. You can have the perfect CNC program, the right tooling, and an experienced operator but if the metal doesn’t behave, you’re in for a headache. I can’t tell you how many times I’ve cursed at a seemingly simple stainless steel panel.

Stainless steel is tough. It looks sleek, but it has a springback tendency that can ruin a bend if you don’t compensate. I remember bending a 1.5 mm 304 stainless sheet for a control panel. We had to adjust the press brake angle multiple times because the metal wanted to “snap back” about 1.2° more than expected. Sounds small, right? But in precision sheet metal, that tiny angle can prevent a door from closing flush or a cover from seating correctly.

Aluminum, on the other hand, is soft and forgiving too forgiving sometimes. Scratch it with the wrong die, and you’ve got a blemish that’s visible even after powder coating. It dents easily during handling, and in multi-bend panels, those dents accumulate fast. At Baoxuan Sheet Metal Processing Factory, we often protect aluminum panels with masking and careful handling to preserve surface quality precision sheet metal isn’t just about dimensions; it’s also about cosmetic integrity when required.

Then there’s galvanized steel, which has a coating that can flake if you bend it too sharply. We had one client who wanted a U-shaped enclosure from galvanized sheets. We had to select a wider V-die to reduce compression on the outer radius, or else the coating would crack. Sometimes, the choice of die is dictated by the material more than the bend angle itself.

Even in our team at Baoxuanmetal, I see newer engineers underestimating material quirks. They program the CNC, trust the numbers blindly, and then… surprise! Springback, cracking, scratches. Precision sheet metal isn’t just about the machine, it’s about understanding the metal, its behavior, and how it interacts with tooling.

So, whenever I get a new job, the first thing I do after reviewing the CAD is check the material. What’s the thickness? What’s the grade? How will it react at each bend? Sometimes it’s boring, but honestly, skipping this step is where most mistakes happen. Precision sheet metal is only as precise as your understanding of the materials you’re bending.

Pricing Logic Behind CNC Bending Jobs

Ah, pricing… This is the part that usually makes procurement folks blink. “Why does a simple 90° bend cost so much?” they ask. And I get it. From the outside, it looks like the machine just presses down and voilà part is done. But in precision sheet metal, the truth is far messier.

First off, setup time. Even for a small batch, getting the CNC press brake ready can take longer than the bending itself. Back gauge positioning, die selection, pressure adjustments, test bends sometimes I spend an hour just dialing in a single panel. And let’s not forget to measure each test piece. One wrong bend, one unnoticed springback, and the whole batch is scrap.

Tooling costs are another factor. Sure, some punches and dies are reusable, but tight tolerances often require custom tooling or specialized V-dies. That’s money on top of setup time. And if the job has multiple bend angles, like complex U-shaped enclosures, each sequence adds complexity and cost.

Labor, naturally, plays a role. Skilled operators don’t grow on trees. At Baoxuanmetal, I’ve seen junior staff struggle with multi-bend parts, and the corrections can easily eat up hours. A small batch that seems “cheap” on paper can be more expensive in practice than a larger run that benefits from repeatability.

Here’s a rough mental checklist I use when evaluating a job:

• Material type and thickness (stainless steel, aluminum, galvanized)

• Number of bends per part

• Bend radii and tightness of tolerances

• Need for specialized tooling

• Batch size and repeatability


If you ignore any of these factors, you end up with a “cheap” part that fails or costs more in the long run. One time, a client asked for a single small aluminum bracket. They were shocked when I told them the setup would take longer than bending five identical pieces in a production run. But I explained precision sheet metal isn’t about pushing metal once; it’s about controlled, repeatable, and high-quality bending.

So yeah, pricing logic may not be glamorous, but it’s essential. If you want reliable parts that fit together perfectly, you pay for setup, experience, and material knowledge. Skipping those steps? You’re gambling with precision sheet metal, and trust me you don’t want to gamble on it.

Quality Control in Precision Sheet Metal Bending

Quality control… this is where precision sheet metal either earns its stripes or embarrasses you in front of a client. I’ve seen the consequences firsthand: panels that looked fine leaving the press brake but failed inspection, only to ruin an assembly later. That’s why, at Baoxuan Sheet Metal Processing Factory, QC isn’t an afterthought; it’s baked into every bend.

First, the basics: dimensional inspection. We check bend angles, flatness, and overall dimensions using micrometers, calipers, and digital angle gauges. Even CNC doesn’t absolve you from measuring. Stainless steel springback can vary from batch to batch, so one test piece is never enough. I’ve personally spent hours on a single panel, bending, measuring, adjusting, and then re-bending until the tolerances were spot on. That’s what makes precision sheet metal “precise” ; it’s measured control, not guesswork.

Angle verification is next. We use both manual protractors and digital inclinometers to ensure bends match design specs. Even a tiny deviation, say, 0.05° can accumulate across multi-bend parts and prevent proper assembly. You’d be surprised how often procurement folks underestimate this. One time, a client asked why we spent so long checking a 90° bend. I said, “Because that 90° decides whether your optical device closes or floats inside its enclosure.”

Flatness and springback tests also matter. For stainless steel and aluminum panels, slight distortions can occur during bending or handling. We have a small jig at Baoxuanmetal that lets us lay panels flat and measure deviations across the surface. Any deviation beyond ±0.08 mm triggers corrective bends or scrap. Yes, it’s tedious. Yes, it’s necessary. Precision sheet metal isn’t about looking good, it’s about fitting and functioning perfectly.

For reference, we align our QC processes with ISO 2768-1 for general tolerances in metal parts ISO 2768-1: General tolerances and follow guidance from the American Society for Quality (ASQ) on inspection methods for sheet metal fabrication ASQ Sheet Metal Inspection Standards. Using these standards ensures our measurements are credible and our clients can trust the tolerances we promise.

Finally, client feedback often doubles as a QC checkpoint. I recall a case where the powder coating looked flawless, but the angle on one U-shaped panel was off by 0.1 mm. The client noticed immediately. That’s why at Baoxuan Sheet Metal Processing Factory, we combine machine precision, hands-on verification, and real-world assembly checks to make sure every part meets the highest standards of precision sheet metal.

CNC Forming for Complex Enclosures and Assemblies

Now, let’s talk about the complex parts of those multi-bend enclosures that look simple on paper but can drive you crazy on the shop floor. CNC forming is where precision sheet metal really shows its value. You can have perfect laser-cut blanks, but if you stack bends incorrectly or ignore tolerance accumulation, your assembly won’t fit. I’ve been there, late at night, holding a U-shaped panel that refuses to mate with its cover… and wondering if I should just start over.

Take an optical instrument enclosure we built last year. Stainless steel, 1.2 mm thick, six bends in one panel. Each bend had its own radius, and the tolerances stacked up ±0.05 mm on each bend. By the fifth bend, we had to pause and measure. Sure enough, the cumulative springback was threatening to misalign the mounting holes. We reprogrammed the CNC sequence, slightly over-bending some angles, and by the sixth bend everything fit like a glove. Precision sheet metal isn’t forgiving, but a bit of experience and patience goes a long way.

Material handling also matters. Complex panels are prone to scratches or distortion when moved between machines. At Baoxuanmetal, we use padded jigs and lift-assist tools to prevent damage. I’ve seen teams ignore this, only to have a perfectly bent panel ruined before assembly. One tiny dent in aluminum or a slight warp in stainless steel, and suddenly the powder coating looks uneven, mounting holes misaligned, and the client notices.

Tolerance stack-up is the hidden enemy. Each bend adds a tiny deviation, and it compounds. That’s why CNC forming is critical: you control each bend, each punch, each die, and measure as you go. Precision sheet metal doesn’t survive luck; it survives methodical, measured processes, and a team that knows how metal behaves.

Finally, communication with assembly teams is vital. I remember telling a new engineer, “Don’t just bend it, think about how it will sit in the final assembly.” That mindset alone avoids hours of frustration. CNC forming of complex enclosures is less about brute force and more about planning, measuring, and respecting the metal. It’s where precision sheet metal proves its worth.

Welding, Powder Coating, and Assembly After Bending

You might think bending ends the story, but honestly, it’s just the beginning. How well you bend your parts directly affects welding, powder coating, and final assembly. I can’t tell you how many times I’ve seen “perfect” bends ruined by poor downstream processes.

Take welding, for instance. If your bend isn’t spot-on, even a small misalignment can warp the joint during welding. Stainless steel and aluminum are notorious for this. I remember one job at Baoxuanmetal where a minor 0.1 mm deviation in a U-shaped panel caused the top cover to sit unevenly after TIG welding. We had to carefully clamp and re-bend before final assembly. Had we ignored that, the entire enclosure would have failed QC. Precision sheet metal isn’t just about making a bend, it’s about ensuring every subsequent process can work correctly.

Powder coating is another beast. A bend with a rough edge or slight distortion can cause uneven coverage or runs. Aluminum panels are particularly tricky; they dent easily, and the coating can highlight every minor imperfection. At Baoxuan Sheet Metal Processing Factory, we do a small pre-coat inspection and light sanding to remove minor burrs. That extra ten minutes saves hours of rework. Clients may never notice, but internally, it’s the difference between a “professional finish” and a headache.

Assembly is where all these factors collide. A panel bent perfectly, welded correctly, and powder-coated flawlessly still has to fit with other parts. Stack-up tolerances, edge alignment, and hole placement all are affected by how the part was bent in the first place. One wrong angle, one slight deviation in springback, and suddenly your PCB or mounting bracket doesn’t fit. That’s why our team at Baoxuanmetal always checks bent parts against assembly drawings before sending them to coating or welding. Precision sheet metal only works if every step respects it.

So, in short: bending quality isn’t isolated, it ripples downstream. If you cut corners at this stage, welding, coating, and assembly all suffer. And that’s the secret most people outside the shop floor don’t realize. Precision sheet metal is a chain, and bending is the first, strongest link.

Lessons Learned From a Decade at Baoxuan

Well… ten years on the shop floor, and if I’ve learned one thing about precision sheet metal, it’s that nothing is ever simple. You think a bend is just a bend, but it’s really a series of small decisions, adjustments, and checks that decide whether a part works or doesn’t.

First, respect the metal. Every material behaves differently. Stainless steel, aluminum, galvanized it’s like each has its own personality. Ignore that, and your precision sheet metal parts won’t fit, no matter how good your machine is. I’ve had new engineers insist on “just running the CNC program,” and I had to watch them scramble when the panel snapped back or scratched. Experience teaches you that the metal often knows better than the CAD file.

Second, plan for tolerance stack-up. Even tiny deviations add up in multi-bend enclosures. I can’t stress this enough. One time, we were fabricating an optical enclosure with six bends in one panel. We double-checked the first three bends, and by the fourth, the cumulative error threatened the mounting holes. Adjusting the CNC sequence saved the day, but the lesson stuck: precision sheet metal is controlled planning, not blind trust.

Third, QC isn’t optional. Inspect, measure, re-inspect. Use micrometers, digital gauges, angle tools, whatever it takes. Skip this, and you’re gambling with assembly and customer satisfaction. At Baoxuanmetal, we follow ISO 2768 tolerances and cross-check parts with assembly drawings before sending them downstream. Trust me, it saves headaches.

Fourth, communicate. Sounds obvious, but you’d be surprised how often designers, engineers, and clients assume a bend “just works.” Explaining springback, material quirks, or why a tight radius costs extra prevents frustration. One client learned this after we explained why their “cheap” U-panel needed a wider die so their next order went smoother.

Finally, embrace patience. Precision sheet metal is a mix of science and craft. It’s measured, deliberate, sometimes tedious but when a complex panel fits perfectly, welds align, powder coat is flawless, and the assembly goes together… That’s satisfaction you can’t fake.

So, after a decade at Baoxuan Sheet Metal Processing Factory, the biggest lesson is simple: precision sheet metal is more than cutting and folding. It’s understanding the metal, respecting processes, measuring obsessively, and planning every bend. Everything else is just noise.

Frequently Asked Questions (FAQ)

1. What is the typical tolerance achievable in CNC bending?
At Baoxuan Sheet Metal Processing Factory, with proper setup and tooling, we usually hit ± 0.05 — 0.1 mm on bends. Of course, this depends on material type, thickness, and bend angle. Stainless steel tends to be more finicky due to springback, whereas aluminum is easier to control. The key is careful measurement and program adjustments during the first test bends.

2. Why does springback matter so much in precision sheet metal?
Springback is that subtle “snap-back” effect after bending. Even a tiny angle deviation can ruin assembly fit, especially in multi-bend panels. I’ve seen optical instrument enclosures fail because of 0.1° cumulative springback tiny numbers, huge consequences. Precision sheet metal isn’t forgiving; controlling springback is essential to success.

3. How do I know if a design is bend-friendly before ordering?
Check the bend radius, material thickness, and number of sequential bends. Avoid extremely tight angles or bends too close to edges. Communicate with your fabricator they can advise on die selection, over-bending, or sequence adjustments. At Baoxuanmetal, we review CAD drawings first, highlight risky bends, and suggest design tweaks to reduce errors.

4. What is the difference between precision sheet metal and standard sheet metal parts?
Standard sheet metal often has looser tolerances (±0.5 mm or worse), minimal QC, and less attention to bending sequences. Precision sheet metal, by contrast, emphasizes tight tolerances (±0.05–0.1 mm), careful control of springback, material-specific adjustments, and rigorous inspection. It’s the difference between a part that barely fits and one that assembles flawlessly with zero surprises.

5. Can small-batch jobs be done economically with precision sheet metal?
Yes, but expect setup costs to be proportionally higher. Even a single panel requires tooling checks, CNC programming, and test bends. Small batches are feasible, but understanding pricing logic setup, labor, and tooling is important. Skipping these steps usually ends up costing more in scrap and rework.

Final Words – A Small Nudge to the Reader

Well… that’s my ramble for now. Maybe more than a ramble, really a decade of late nights, bent sheets, and the occasional headache all poured into one guide. Precision sheet metal isn’t glamorous, and honestly, it’s rarely appreciated outside the shop floor. But if you’ve read this far, you probably get it: every bend, every angle, every careful measurement counts.

If there’s one thing I’d leave you with, it’s this: treat your materials, machines, and processes with respect. Don’t underestimate springback, tolerance stack-up, or setup time. And remember, precision sheet metal isn’t about luck; it’s about careful planning, testing, and hands-on experience.

If any of this resonates or if you just want to vent about a stubborn bend drop a comment, ask a question, or share your own shop-floor stories. I’ve learned as much from others’ mistakes as I have from my own, and sometimes a good story over tea is worth more than a hundred manuals.

At Baoxuan Sheet Metal Processing Factory, we’re always happy to help fellow engineers, designers, or procurement teams navigate these tricky bends. Precision sheet metal isn’t a secret, it’s just a bit of sweat, skill, and patience away.

So… bend wisely, measure carefully, and enjoy the little victories along the way.
